TOYOTA PREVIA TARAGO GSR50L-GFTGK / POWERTRAIN-CHASSIS / PARKING BRAKE CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

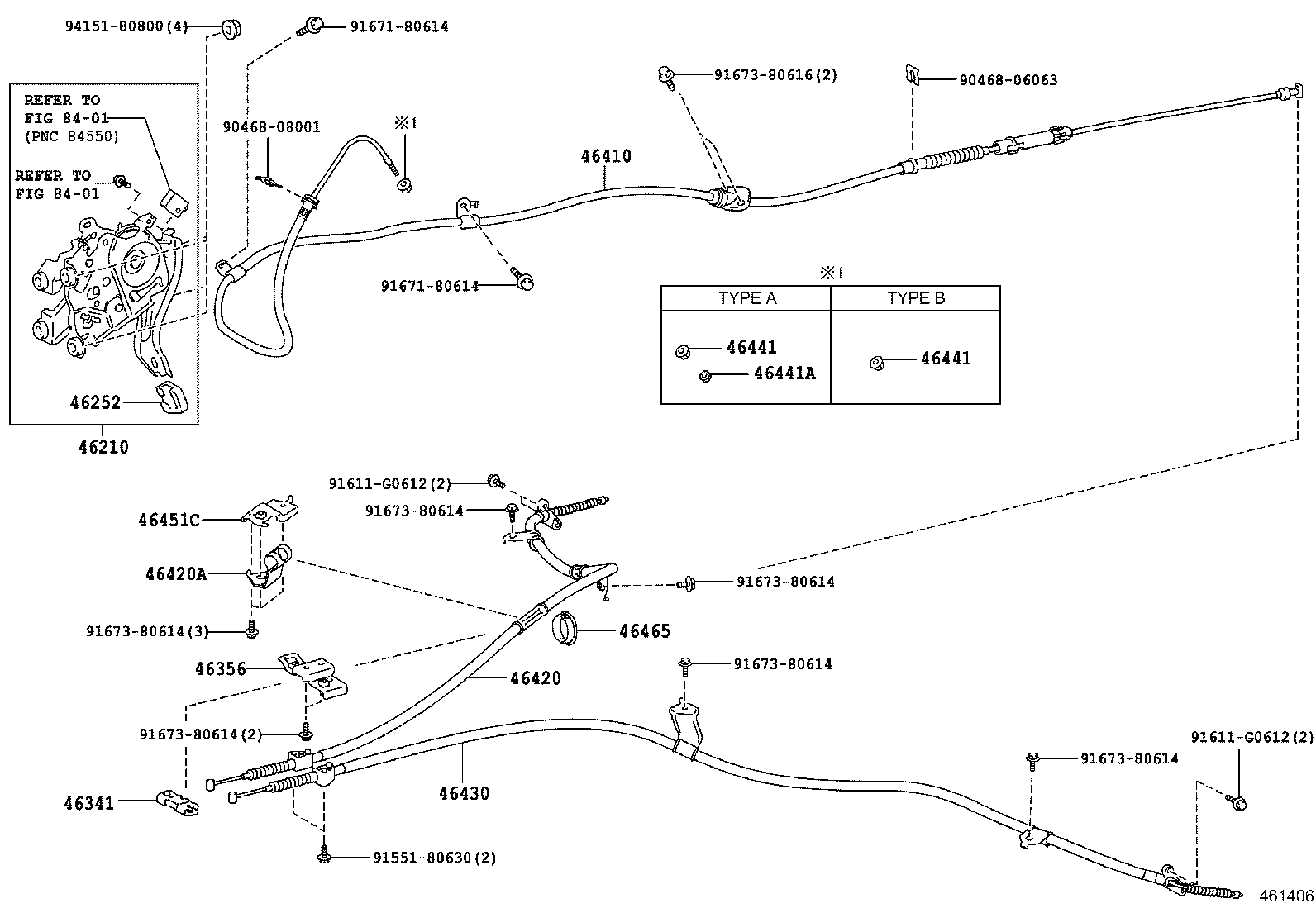

PARKING BRAKE CABLE

ILLUST NO. 1 OF 2(1401- )LHD

 PREVIA TARAGO |  PARKING BRAKE CABLE 46210 - LEVER ASSY, PARKING BRAKE 46252 - PAD, PARKING PEDAL 46341 - EQUALIZER, PARKING BRAKE 46356 - BRACKET, EQUALIZER SUPPORT 46410 - CABLE ASSY, PARKING BRAKE, NO.1 46420 - CABLE ASSY, PARKING BRAKE, NO.2 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) 46430 - CABLE ASSY, PARKING BRAKE, NO.3 46441 - NUT, WIRE ADJUSTING, NO.1 46441 - NUT, WIRE ADJUSTING, NO.1 46441A - NUT, WIRE ADJUSTING, NO.2 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 46465 - GUIDE, PARKING BRAKE CABLE, RH ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
