TOYOTA RAV4 CHINA ASA44L-ANTMKC / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

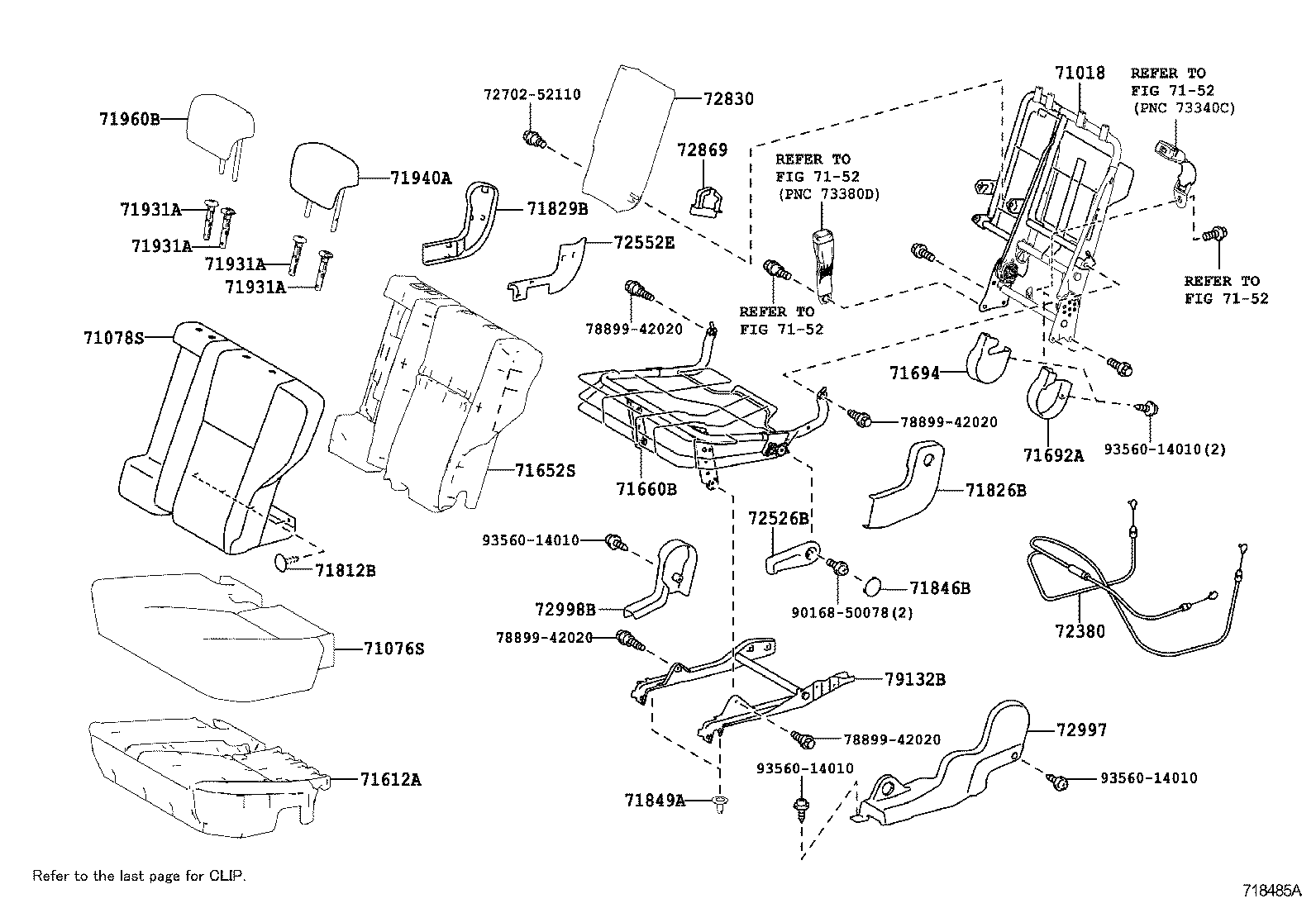

REAR SEAT (LH) ILLUST NO. 3 OF 5(1308- )

RAV4 CHINA | SEAT SEAT TRACK 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71612A - PAD, REAR SEAT CUSHION, LH 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71660B - SPRING ASSY, REAR SEAT CUSHION, LH 71692A - COVER, REAR NO.3 SEAT LOCK, LH 71694 - COVER, REAR SEAT CUSHION HINGE, LOWER LH 71812B - CLIP(FOR REAR SEAT CUSHION COVER) 71826B - MOULDING, REAR SEAT CUSHION, LH 71829B - MOULDING, REAR SEAT CUSHION, REAR LH 71846B - CAP, REAR SEAT BACK BOARD, NO.1 71849A - CAP, SEAT ADJUSTER COVER, LH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 71960B - HEADREST ASSY, REAR SEAT, CENTER 72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH 72552E - COVER, RECLINING HINGE, LH ** Std Part 72830 - ARMREST ASSY, REAR SEAT, CENTER 72869 - COVER, CENTER ARMREST HINGE, LH 72997 - COVER, REAR SEAT BACK, LH 72998B - COVER, REAR SEAT CUSHION, LH ** Std Part ** Std Part ** Std Part ** Std Part 79132B - LEG, NO.1 SEAT, FRONT LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
