TOYOTA RAV4 CHINA ZSA44L-ANXMKC / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

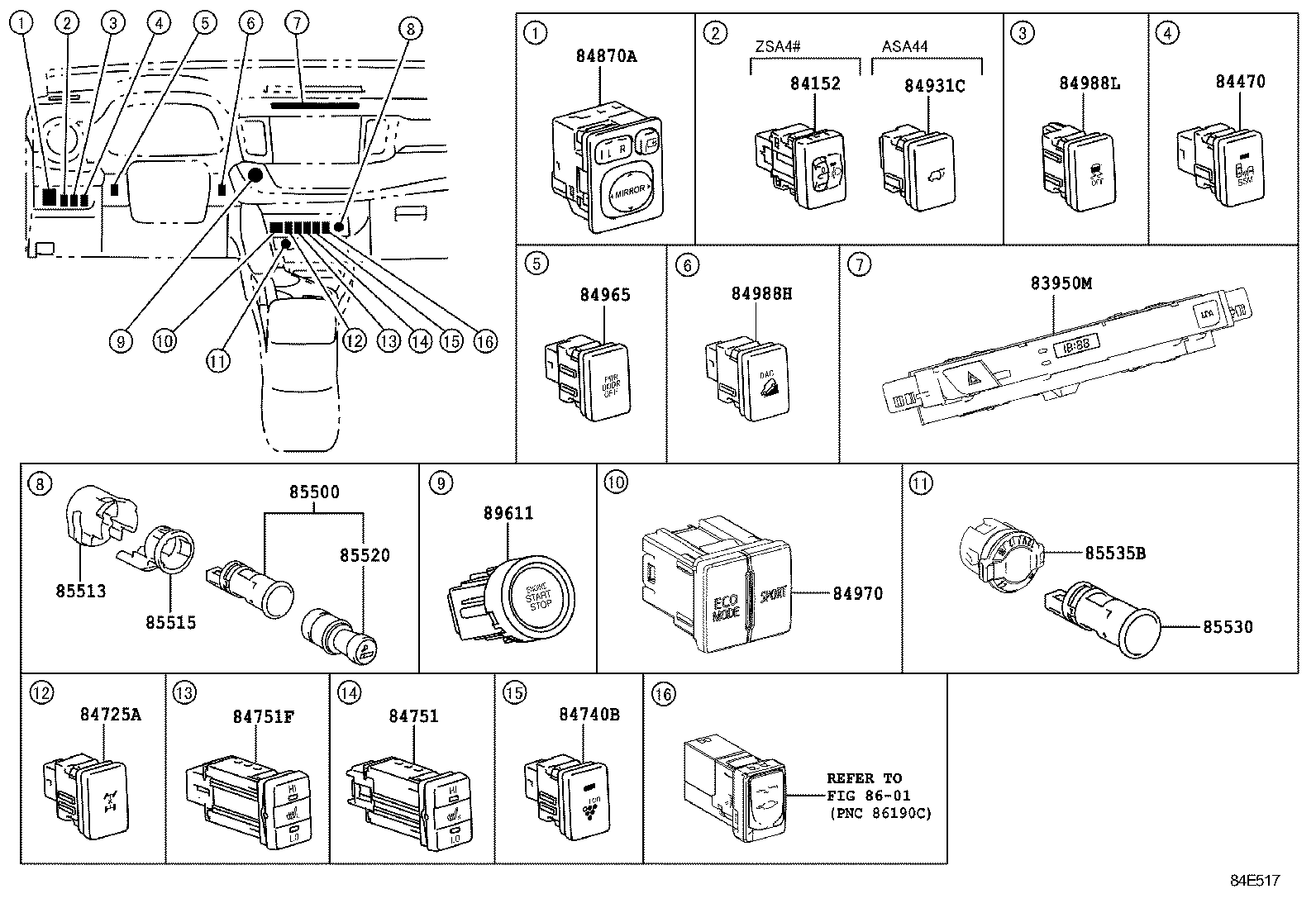

INSTRUMENT PANEL ILLUST NO. 5 OF 9(1308- )

 RAV4 CHINA |  SWITCH RELAY COMPUTER 83950M - LAMP ASSY, TELLTALE 84152 - SWITCH, HEADLAMP LEVELING 84470 - SWITCH ASSY, WARNING CANCELING 84725A - SWITCH, DIFFERENTIAL LOCK 84740B - SWITCH ASSY, AIR PURIFIER 84751 - SWITCH, SEAT HEATER 84751F - SWITCH, SEAT HEATER 84870A - SWITCH ASSY, OUTER MIRROR 84931C - SWITCH, BACK DOOR CONTROL 84965 - SWITCH, POWER BACK DOOR MAIN 84970 - SWITCH ASSY, COMBINATION 84988H - SWITCH, DOWNHILL ASSIST CONTROL 84988L - SWITCH, VSC OFF 85500 - LIGHTER ASSY, CIGARETTE 85513 - COVER, CIGARETTE LIGHTER 85515 - STAY, CIGARETTE LIGHTER BEZEL 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER 85530 - SOCKET ASSY, POWER OUTLET, NO.1 85535B - COVER, POWER OUTLET SOCKET, NO.1 ** Refer Fig 89611 - SWITCH, PUSH START
