TOYOTA RAV4 ASA44R-ANFGKQ / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

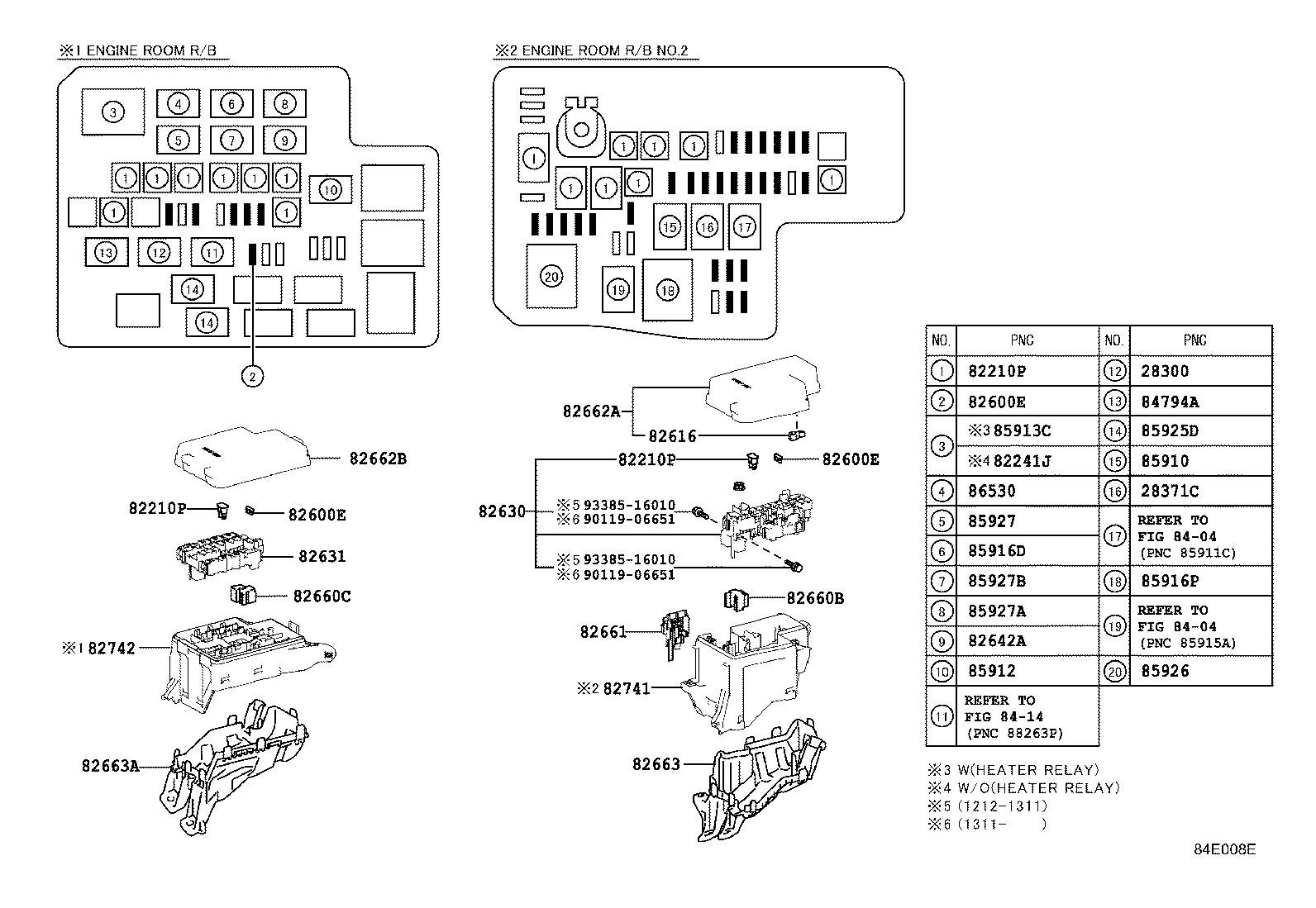

ENGINE ROOM RELAY BLOCK ILLUST NO. 3 OF 8(1212- )

RAV4 | SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 28371C - RELAY, IGNITION, NO.2 82210P - ENGINE ROOM FUSIBLE LINK 82210P - ENGINE ROOM FUSIBLE LINK 82210P - ENGINE ROOM FUSIBLE LINK 82241J - PIN, SHORT 82600E - ENGINE ROOM FUSE 82600E - ENGINE ROOM FUSE 82600E - ENGINE ROOM FUSE 82616 - PULLER, FUSE 82630 - HOLDER ASSY, FUSE 82631 - HOLDER, FUSE 82642A - RELAY, RUNNING LIGHT 82660B - BLOCK ASSY, RELAY 82660C - BLOCK ASSY, RELAY 82661 - COVER, RELAY BLOCK, NO.1 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82662B - COVER, RELAY BLOCK, UPPER, NO.2 82663 - COVER, RELAY BLOCK, LOWER 82663A - COVER, RELAY BLOCK, LOWER, NO.2 82741 - BLOCK, ENGINE ROOM RELAY 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 ** Refer Fig ** Refer Fig ** Refer Fig 84794A - RELAY, FR WIPER DEICER 85910 - RELAY ASSY, CIRCUIT OPENING 85912 - RELAY, DEFOGGER 85913C - RELAY, HEATER, NO.1 85916D - RELAY, FOG LAMP 85916P - RELAY, HEADLAMP 85925D - RELAY, PTC HEATER 85926 - RELAY, HEADLAMP DIMMER 85927 - RELAY, COOLING FAN 85927A - RELAY, COOLING FAN, NO.2 85927B - RELAY, COOLING FAN, NO.3 86530 - RELAY ASSY, HORN ** Std Part ** Std Part ** Std Part ** Std Part
