TOYOTA REIZ GRX131L-AETUKC / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

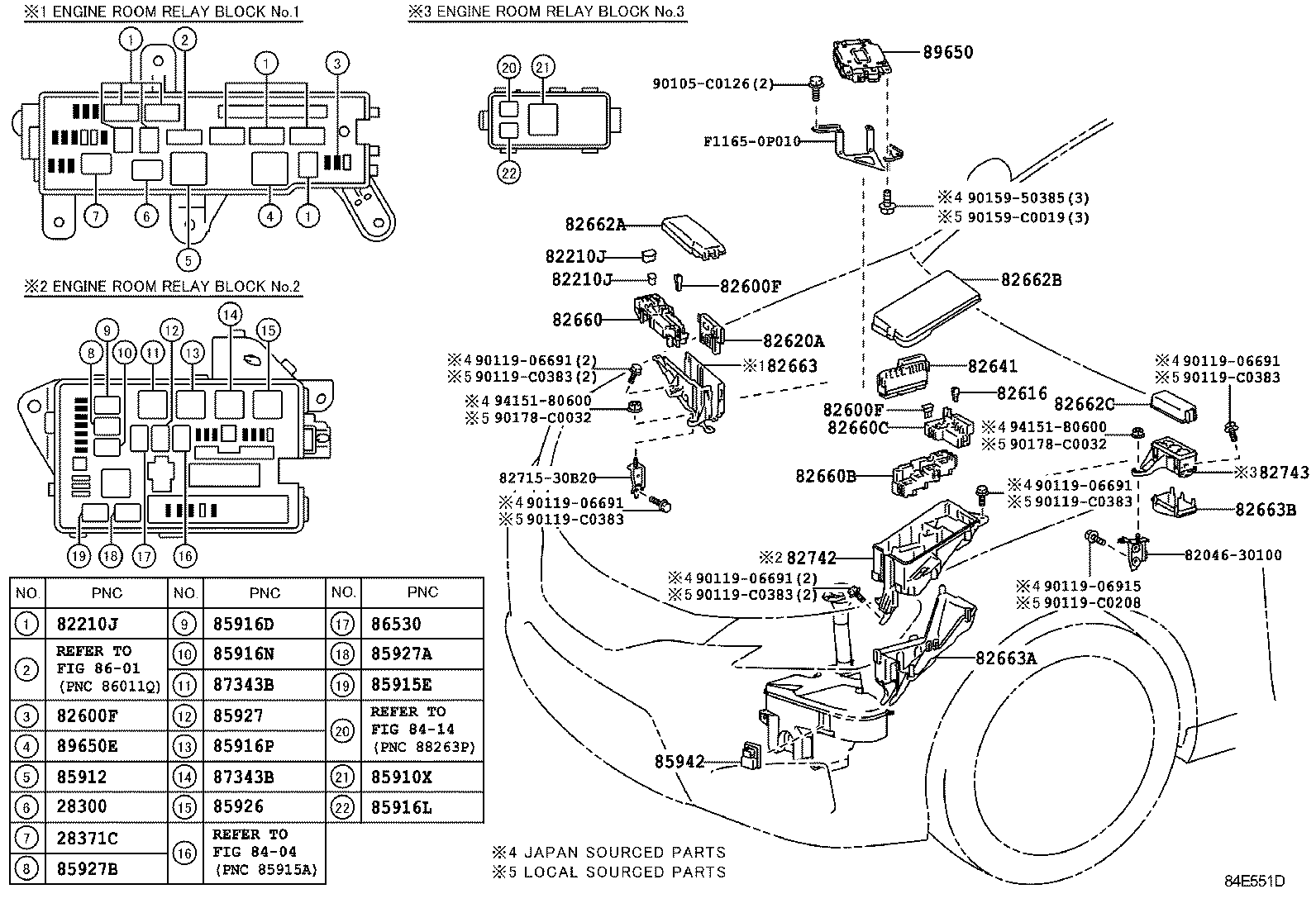

ENGINE ROOM ILLUST NO. 3 OF 7(1309- )

REIZ | SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 28371C - RELAY, IGNITION, NO.2 ** Std Part 82210J - FUSIBLE LINK 82210J - FUSIBLE LINK 82210J - FUSIBLE LINK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82616 - PULLER, FUSE 82620A - BLOCK ASSY, FUSIBLE LINK 82641 - RELAY, INTEGRATION NO.1 82660 - BLOCK ASSY, RELAY, ENGINE ROOM 82660B - BLOCK ASSY, RELAY 82660C - BLOCK ASSY, RELAY 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82662B - COVER, RELAY BLOCK, UPPER, NO.2 82662C - COVER, RELAY BLOCK, UPPER, NO.3 82663 - COVER, RELAY BLOCK, LOWER 82663A - COVER, RELAY BLOCK, LOWER, NO.2 82663B - COVER, RELAY BLOCK, LOWER, NO.3 ** Std Part 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 ** Refer Fig ** Refer Fig 85910X - RELAY, HEATER MIRROR 85912 - RELAY, DEFOGGER 85915E - RELAY 85916D - RELAY, FOG LAMP 85916L - RELAY, REAR FOG LAMP 85916N - RELAY, TAIL LAMP 85916P - RELAY, HEADLAMP 85926 - RELAY, HEADLAMP DIMMER 85927 - RELAY, COOLING FAN 85927A - RELAY, COOLING FAN, NO.2 85927B - RELAY, COOLING FAN, NO.3 85942 - RELAY, HEADLAMP CLEANER CONTROL ** Refer Fig 86530 - RELAY ASSY, HORN 87343B - RELAY, HEATER SUB, NO.1(FOR GLOW PLUG HEATER) 87343B - RELAY, HEATER SUB, NO.1(FOR GLOW PLUG HEATER) 89650 - COMPUTER ASSY, POWER STEERING 89650E - RELAY, ELECTRIC POWER STEERING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
