TOYOTA YARIS VIOS LIMO NCP150R-BEMDKT / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

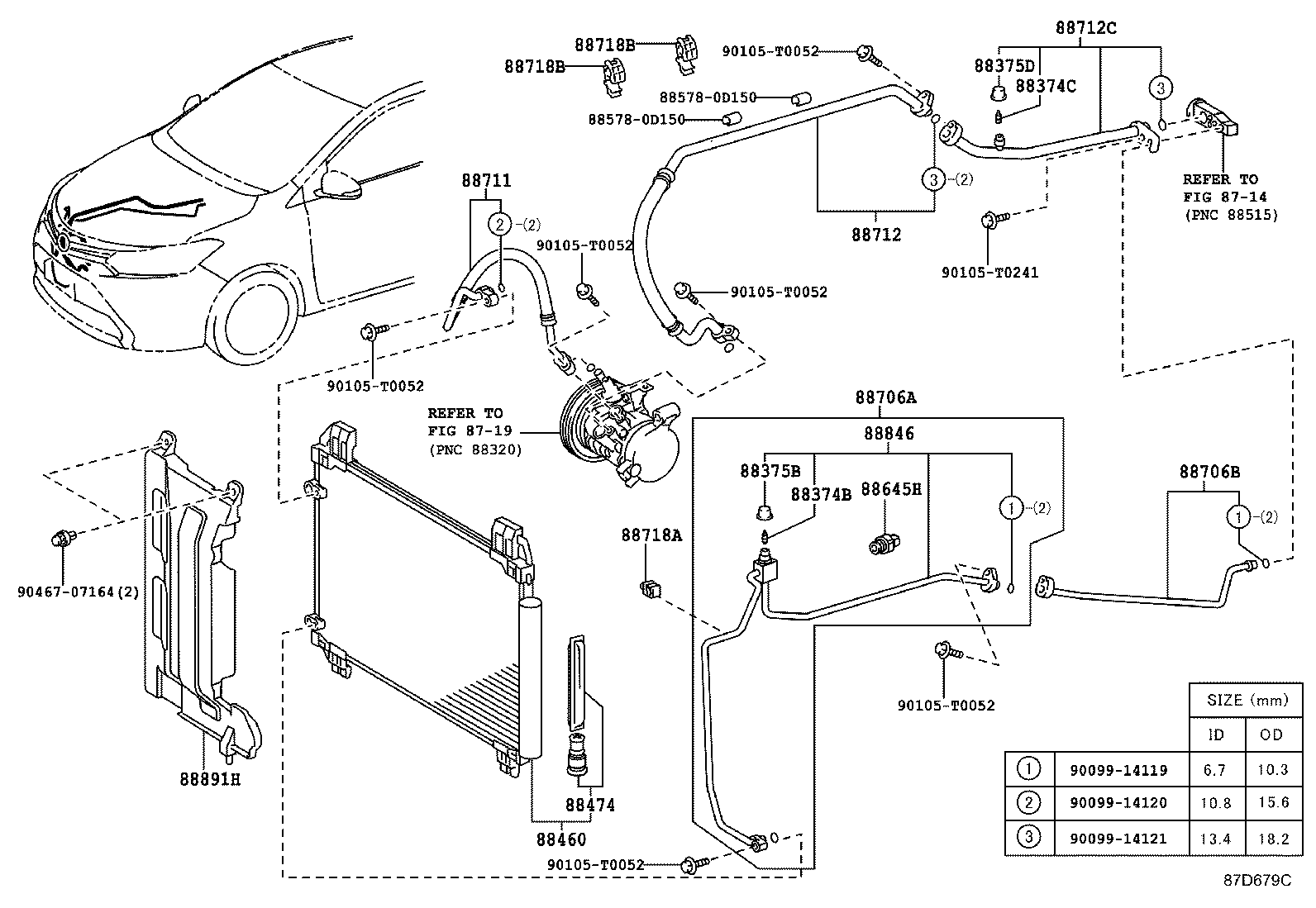

HEATING AIR CONDITIONING COOLER PIPING

DEALER OPTION (1304- )TH ; (1308- )LHD..GEN..D

YARIS VIOS LIMO | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig 88374B - VALVE, SERVICE, NO.1 88374C - VALVE, SERVICE, NO.2 88375B - CAP, SERVICE VALVE, NO.1 88375D - CAP, SERVICE VALVE, NO.2 88460 - CONDENSER ASSY, COOLER 88474 - DRYER, COOLER ** Std Part ** Std Part 88645H - SWITCH, PRESSURE NO.1 88706A - TUBE SUB-ASSY, LIQUID, A 88706B - TUBE SUB-ASSY, LIQUID, B 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88712C - HOSE, SUCTION 88718A - CLAMP(FOR COOLER REFRIGERANT PIPE), NO.1 88718B - CLAMP(FOR COOLER REFRIGERANT PIPE), NO.2 88718B - CLAMP(FOR COOLER REFRIGERANT PIPE), NO.2 88846 - TUBE, LIQUID 88891H - COVER, COOLER, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
