TOYOTA YARIS NCP150R-CHPRKD / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

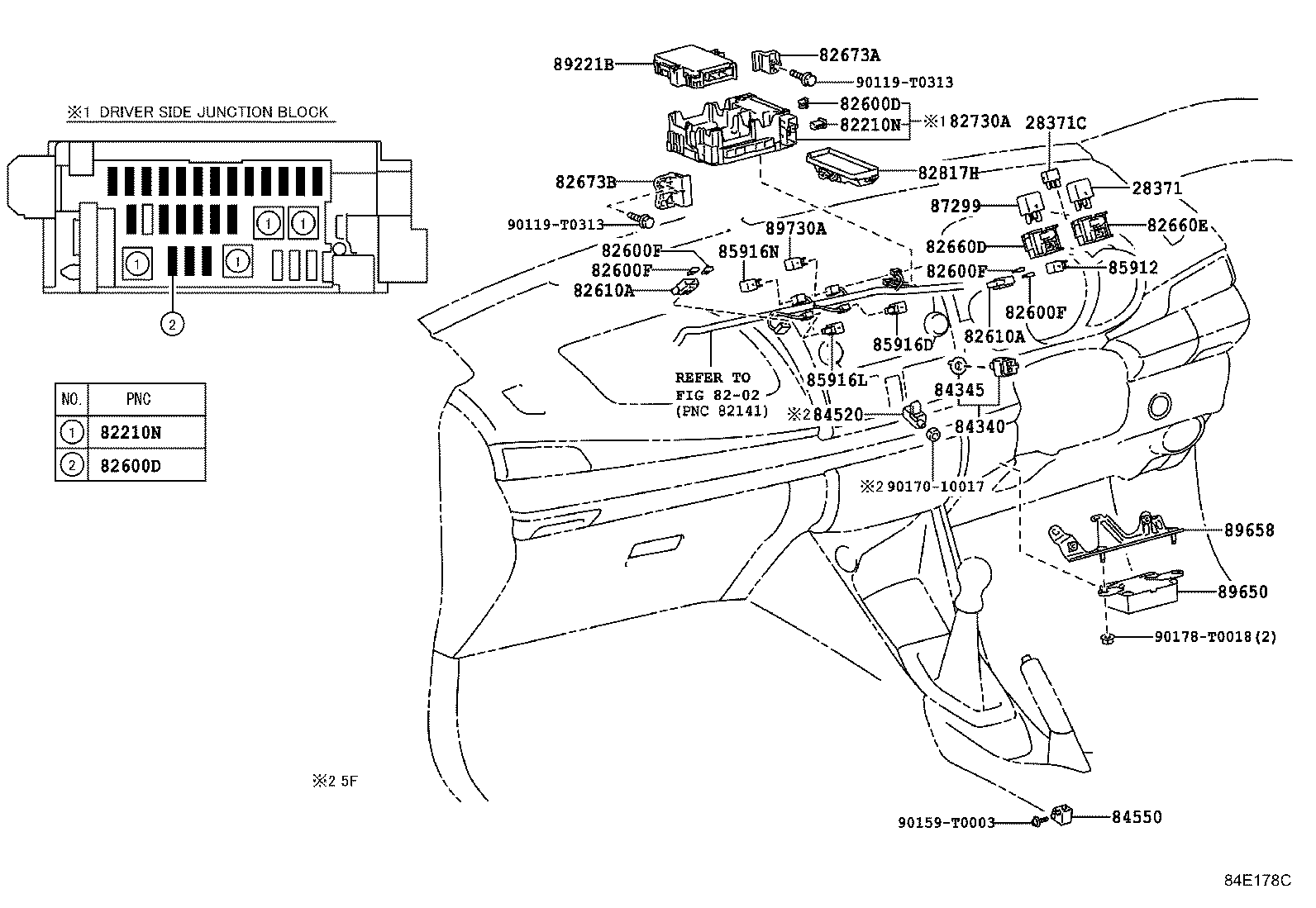

COWL ILLUST NO. 3 OF 6(1310- )RHD

YARIS | SWITCH RELAY COMPUTER 28371 - RELAY, IGNITION, NO.1 28371C - RELAY, IGNITION, NO.2 ** Refer Fig 82210N - INSTRUMENT PANEL FUSIBLE LINK 82210N - INSTRUMENT PANEL FUSIBLE LINK 82600D - INSTRUMENT PANEL FUSE 82600D - INSTRUMENT PANEL FUSE 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82610A - BLOCK ASSY, FUSE 82610A - BLOCK ASSY, FUSE 82660D - BLOCK ASSY, RELAY 82660E - BLOCK ASSY, RELAY 82673A - BRACKET, JUNCTION BLOCK 82673B - BRACKET, JUNCTION BLOCK 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION 82817H - PROTECTOR, WIRING HARNESS 84340 - SWITCH ASSY, STOP LAMP 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING 84520 - SWITCH ASSY, CLUTCH START 84550 - SWITCH ASSY, PARKING BRAKE 85912 - RELAY, DEFOGGER 85916D - RELAY, FOG LAMP 85916L - RELAY, REAR FOG LAMP 85916N - RELAY, TAIL LAMP 87299 - RELAY, HEATER 87299 - RELAY, HEATER 89221B - COMPUTER, BODY 89650 - COMPUTER ASSY, POWER STEERING 89658 - BRACKET, POWER STEERING COMPUTER 89730A - RELAY(FOR SECURITY WARNING) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
