TOYOTA PUBLICA KP31-XR / TOOL-ENGINE-FUEL / FUEL PUMP PIPE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

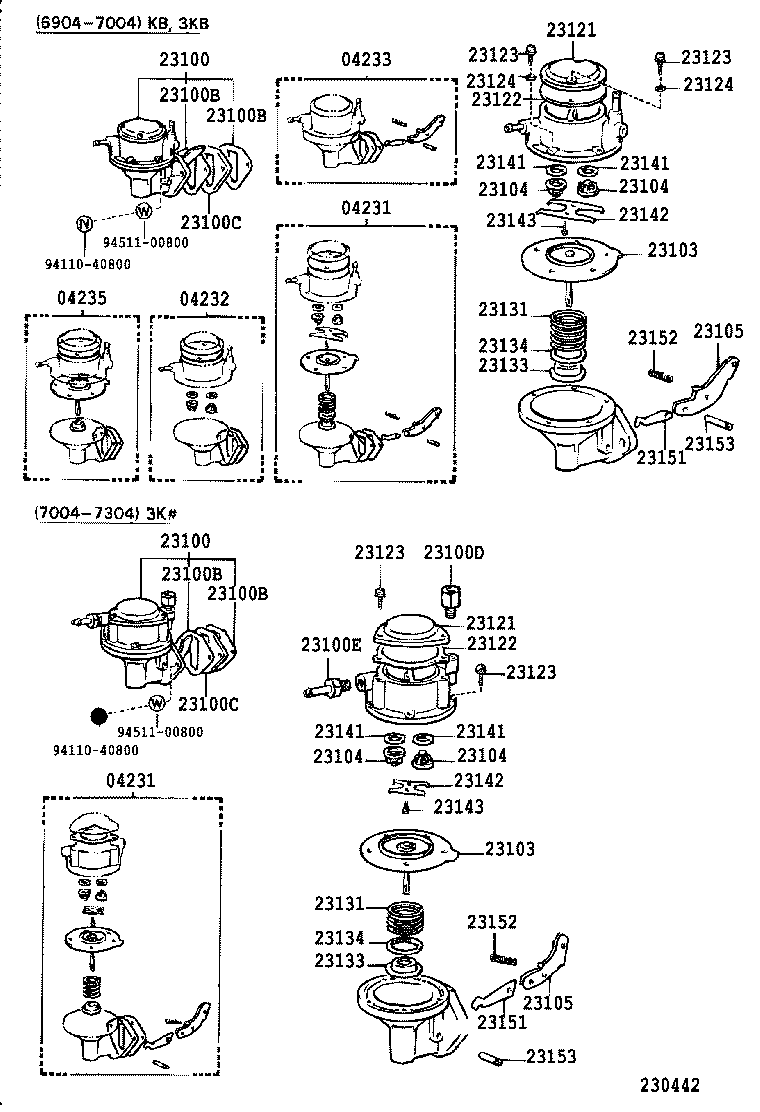

FUEL PUMP PIPE

ILLUST NO. 2 OF 2(6904-7304)KB,3KB#

PUBLICA | FUEL PUMP PIPE 04231 - PUMP KIT, FUEL 04231 - PUMP KIT, FUEL 04232 - VALVE KIT, FUEL PUMP 04233 - ARM KIT, FUEL PUMP ROCKER 04235 - DIAPHRAGM KIT, FUEL PUMP 23100 - PUMP ASSY, FUEL 23100 - PUMP ASSY, FUEL 23100B - GASKET, FUEL PUMP 23100B - GASKET, FUEL PUMP 23100B - GASKET, FUEL PUMP 23100B - GASKET, FUEL PUMP 23100C - INSULATOR, FUEL PUMP 23100C - INSULATOR, FUEL PUMP 23100D - UNION, NIPPLE(FOR FUEL OUTLET) 23100E - UNION, NIPPLE(FOR FUEL INLET) 23103 - DIAPHRAGM SUB-ASSY 23103 - DIAPHRAGM SUB-ASSY 23104 - VALVE SUB-ASSY 23104 - VALVE SUB-ASSY 23104 - VALVE SUB-ASSY 23104 - VALVE SUB-ASSY 23105 - ARM SUB-ASSY, ROCKER 23105 - ARM SUB-ASSY, ROCKER 23121 - COVER, FUEL PUMP 23121 - COVER, FUEL PUMP 23122 - GASKET, FUEL PUMP COVER 23122 - GASKET, FUEL PUMP COVER 23123 - SCREW, COVER SET, NO.1 23123 - SCREW, COVER SET, NO.1 23123 - SCREW, COVER SET, NO.1 23123 - SCREW, COVER SET, NO.1 23124 - WASHER, COVER SET, NO.2 23124 - WASHER, COVER SET, NO.2 23131 - SPRING, DIAPHRAGM(FOR FUEL PUMP) 23131 - SPRING, DIAPHRAGM(FOR FUEL PUMP) 23133 - PACKING, OIL SEAL(FOR FUEL PUMP) 23133 - PACKING, OIL SEAL(FOR FUEL PUMP) 23134 - RETAINER, OIL SEAL PACKING(FOR FUEL PUMP) 23134 - RETAINER, OIL SEAL PACKING(FOR FUEL PUMP) 23141 - PACKING, VALVE 23141 - PACKING, VALVE 23141 - PACKING, VALVE 23141 - PACKING, VALVE 23142 - RETAINER, VALVE 23142 - RETAINER, VALVE 23143 - SCREW, VALVE RETAINER SET 23143 - SCREW, VALVE RETAINER SET 23151 - LINK, ROCKER ARM 23151 - LINK, ROCKER ARM 23152 - SPRING, ROCKER ARM 23152 - SPRING, ROCKER ARM 23153 - PIN, ROCKER ARM 23153 - PIN, ROCKER ARM ** Std Part ** Std Part ** Std Part ** Std Part
