TOYOTA PUBLICA KP31-G / TOOL-ENGINE-FUEL / CARBURETOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CARBURETOR

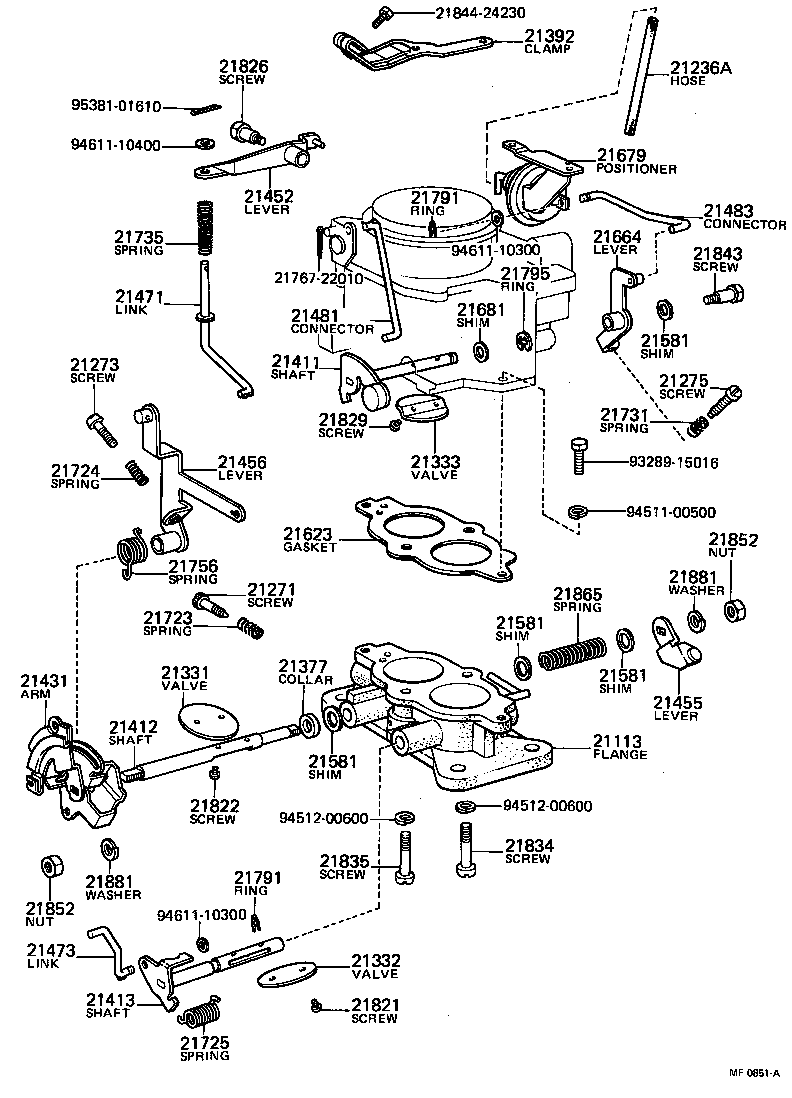

ILLUST NO. 2 OF 2(7304-7511)3K

PUBLICA | CARBURETOR 21113 - FLANGE, CARBURETOR 21236A - HOSE, NO.1(FOR OPENER) 21271 - SCREW, IDLE ADJUSTING 21273 - SCREW, THROTTLE ADJUSTING 21275 - SCREW, ADJUSTING 21331 - VALVE, 1ST THROTTLE 21332 - VALVE, 2ND THROTTLE 21333 - VALVE, HIGH SPEED 21377 - COLLAR(FOR 2ND THROTTLE SHAFT) 21392 - CLAMP, CHOKE WIRE 21411 - SHAFT, HIGH SPEED 21412 - SHAFT, 1ST THROTTLE 21413 - SHAFT, 2ND THROTTLE 21431 - ARM, 1ST THROTTLE SHAFT 21452 - LEVER, PUMP 21455 - LEVER, THROTTLE 21456 - LEVER, 1ST THROTTLE IDLE ADJUSTING, NO.1 21471 - LINK, PUMP CONNECTING 21473 - LINK, THROTTLE SHAFT 21481 - CONNECTOR, 1ST IDLE 21483 - CONNECTOR, NO.1 21581 - SHIM, 1ST THROTTLE SHAFT 21581 - SHIM, 1ST THROTTLE SHAFT 21581 - SHIM, 1ST THROTTLE SHAFT 21581 - SHIM, 1ST THROTTLE SHAFT 21623 - GASKET, BODY FLANGE 21664 - LEVER(FOR DASH POT OR POSITIONER) 21679 - POSITIONER 21681 - SHIM(FOR HIGH SPEED SHAFT) 21723 - SPRING, IDLE ADJUSTING 21724 - SPRING, THROTTLE ADJUSTING 21725 - SPRING, 2ND THROTTLE BACK 21731 - SPRING, DASH POT OR POSITIONER ADJUSTING 21735 - SPRING, PUMP ARM 21756 - SPRING, BACK(FOR THROTTLE SHAFT) ** Std Part 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21795 - RING, RETAINER, NO.2(FOR HIGH SPEED SHAFT) 21821 - SCREW, 2ND THROTTLE VALVE SET 21822 - SCREW, 1ST THROTTLE VALVE SET 21826 - SCREW, PUMP ARM SET 21829 - SCREW, HIGH SPEED VALVE SET 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) 21835 - SCREW, SET, NO.3(FOR CARBURETOR BODY SET) 21843 - SCREW OR PIN (FOR DASH POT OR POSITIONER LEVER) ** Std Part 21852 - NUT, THROTTLE LEVER SET 21852 - NUT, THROTTLE LEVER SET 21865 - SPRING 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
