TOYOTA TOWN MASTERACE V WG TR10V-JDFJ / TOOL-ENGINE-FUEL / CARBURETOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

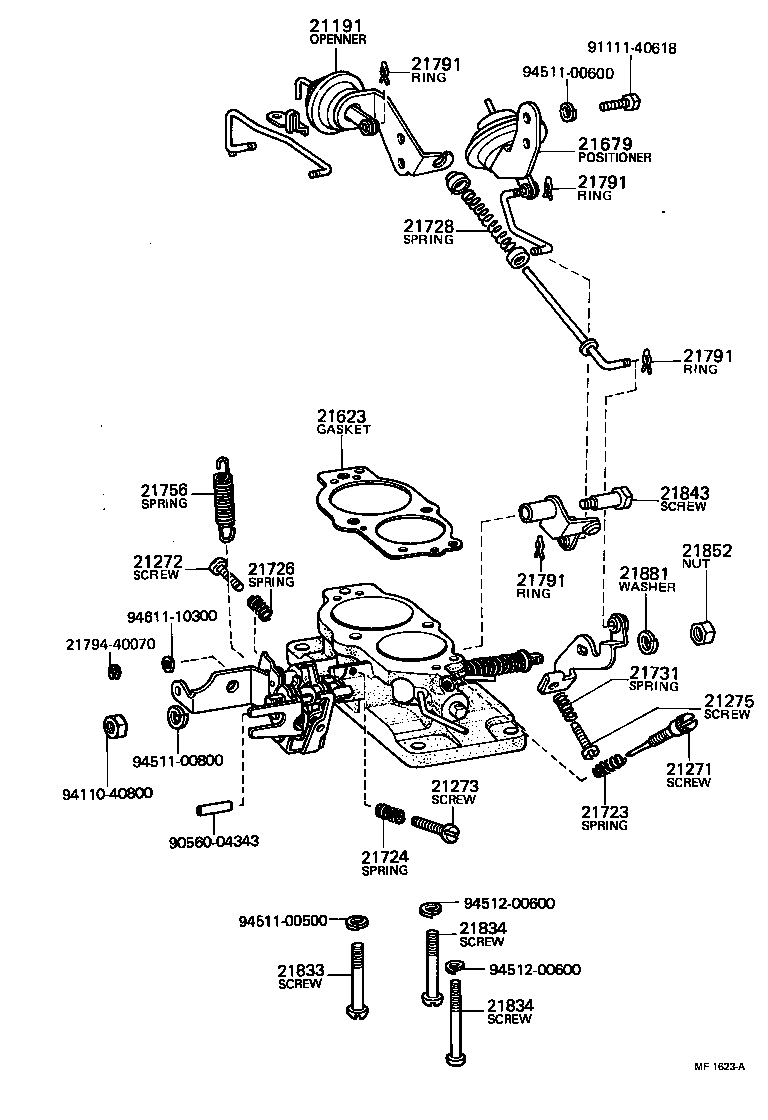

CARBURETOR

ILLUST NO. 3 OF 3(7610-7910)2TJ

TOWN MASTERACE V WG | CARBURETOR 21191 - OPENER 21271 - SCREW, IDLE ADJUSTING 21272 - SCREW, 1ST IDLE ADJUSTING 21273 - SCREW, THROTTLE ADJUSTING 21275 - SCREW, ADJUSTING 21623 - GASKET, BODY FLANGE 21679 - POSITIONER 21723 - SPRING, IDLE ADJUSTING 21724 - SPRING, THROTTLE ADJUSTING 21726 - SPRING, 1ST IDLE ADJUSTING 21728 - SPRING, THROTTLE VALVE RETURN 21731 - SPRING, DASH POT OR POSITIONER ADJUSTING 21756 - SPRING, BACK(FOR THROTTLE SHAFT) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) ** Std Part 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) 21843 - SCREW OR PIN (FOR DASH POT OR POSITIONER LEVER) 21852 - NUT, THROTTLE LEVER SET 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
