TOYOTA MARK 2 MX63-XTPQE / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE BOOSTER VACUUM TUBE

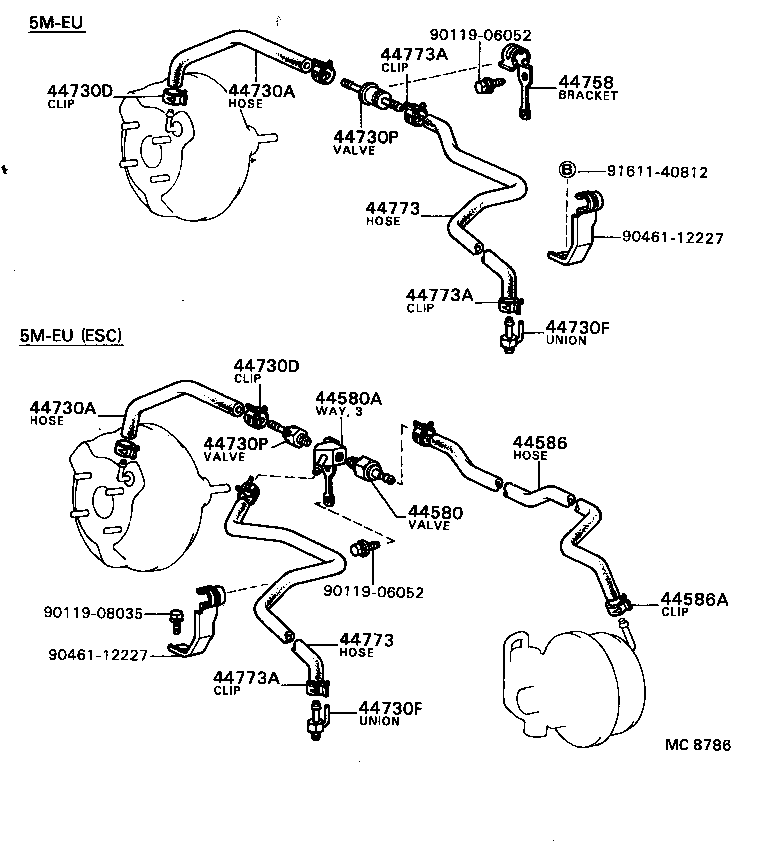

ILLUST NO. 2 OF 2(8009-8208)MX63

MARK 2 | BRAKE BOOSTER VACUUM TUBE 44580 - VALVE ASSY, ACTUATOR CHECK 44580A - WAY, 3, ACTUATOR VACUUM 44586 - HOSE, ACTUATOR VACUUM, NO.1 44586A - CLIP(FOR ACTUATOR VACUUM HOSE) 44730A - HOSE, VACUUM, NO.1 44730A - HOSE, VACUUM, NO.1 44730D - CLIP(FOR VACUUM HOSE, NO.1) 44730D - CLIP(FOR VACUUM HOSE, NO.1) 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) 44730P - VALVE ASSY, VACUUM CHECK, NO.1 44730P - VALVE ASSY, VACUUM CHECK, NO.1 44758 - BRACKET, VACUUM CHECK VALVE 44773 - HOSE, VACUUM, NO.2 44773 - HOSE, VACUUM, NO.2 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
