TOYOTA SPRINTER KE70-FEKNS / ELECTRICAL / HEATING AIR CONDITIONING VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

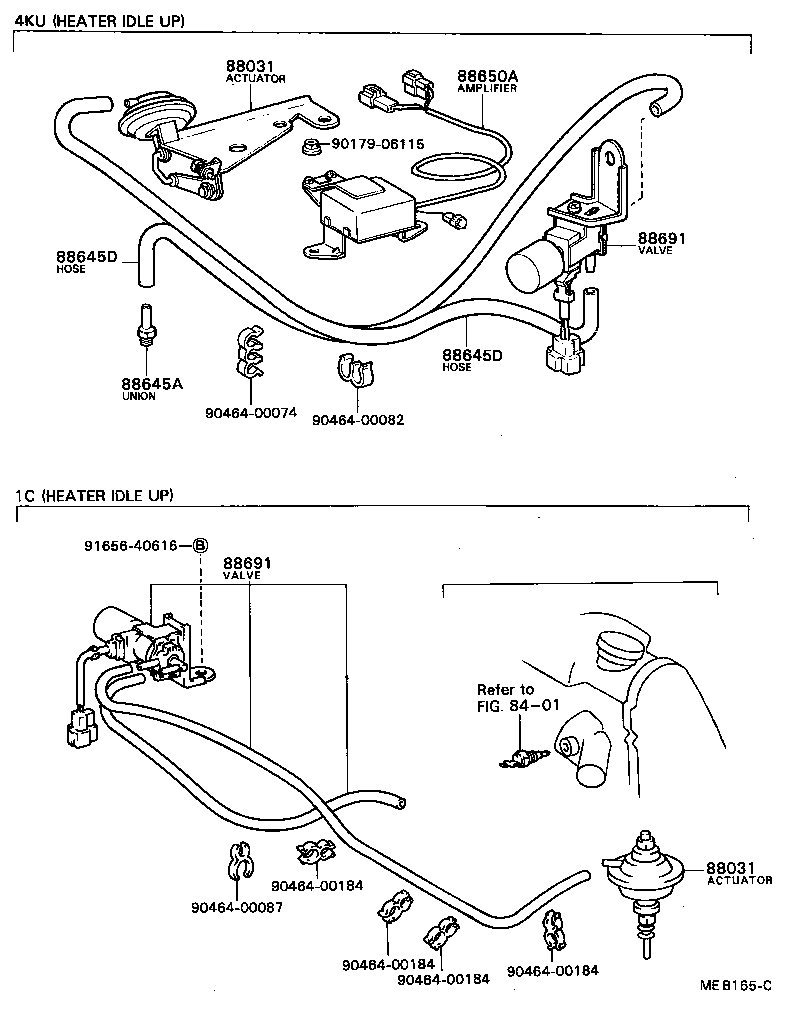

HEATING AIR CONDITIONING VACUUM PIPING

(8108- )KE70..MTM ; (8202- )CE70

SPRINTER | HEATING AIR CONDITIONING VACUUM PIPING ** Refer Fig 88031 - ACTUATOR SET, IDLE-UP 88031 - ACTUATOR SET, IDLE-UP 88645A - UNION (FOR IDLE UP DEVICE) 88645D - HOSE (FOR IDLE UP DEVICE) 88645D - HOSE (FOR IDLE UP DEVICE) 88650A - AMPLIFIER ASSY(FOR HEATER IDLE-UP) 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
