TOYOTA CROWN MS123-SEPQF / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER UNIT

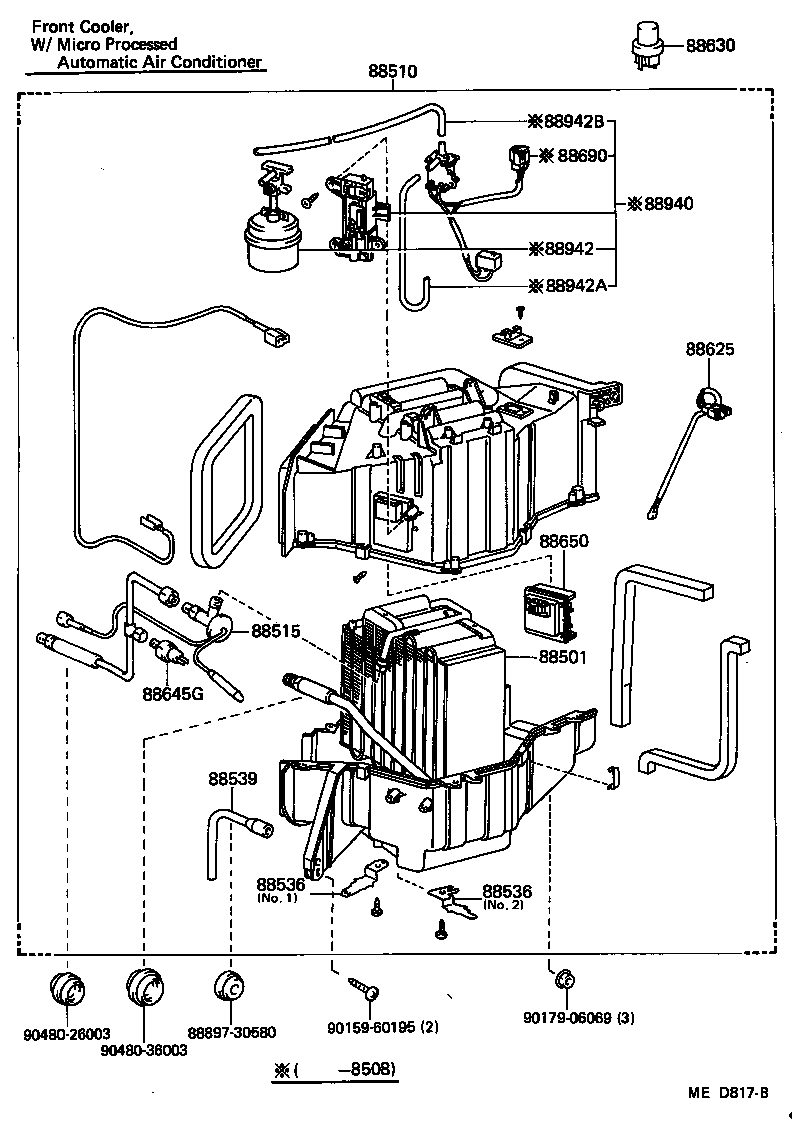

ILLUST NO. 1 OF 3(8308- )MS123,125 ; (8408- )GS121..ROY

CROWN | HEATING AIR CONDITIONING COOLER UNIT 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 88510 - UNIT ASSY, COOLER 88515 - VALVE, COOLER EXPANSION 88536 - BRACKET, COOLING UNIT, NO.1 88536 - BRACKET, COOLING UNIT, NO.1 88539 - HOSE, COOLER UNIT DRAIN, NO.1 88625 - THERMISTOR, COOLER, NO.1 88630 - RELAY ASSY, COOLER 88645G - SWITCH, PRESSURE 88650 - AMPLIFIER ASSY, COOLER STABILIZER 88690 - VALVE ASSY, COOLER MAGNET ** Std Part 88940 - ACTUATOR ASSY, SWING GRILL 88942 - DIAPHRAGM, VACUUM 88942A - HOSE 88942B - HOSE ** Std Part ** Std Part ** Std Part ** Std Part
