TOYOTA LAND CRUISER VAN BJ61V-MMZ / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

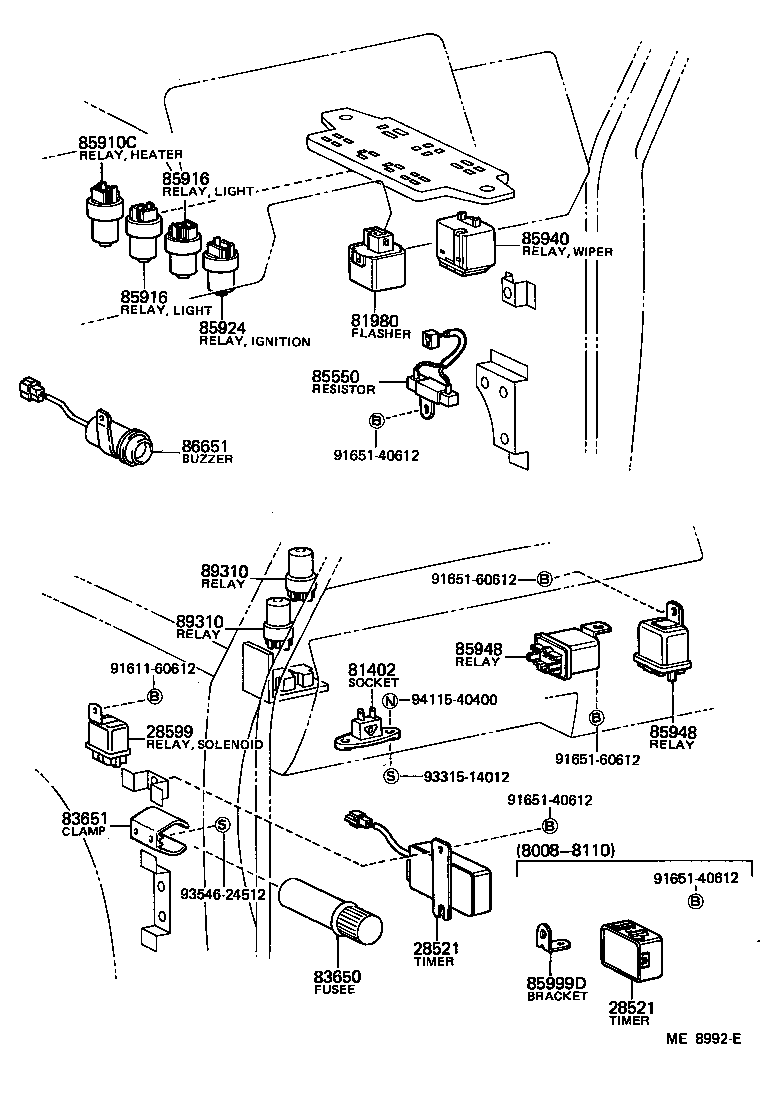

ILLUST NO. 5 OF 6(8008-8411)

LAND CRUISER VAN | SWITCH RELAY COMPUTER 28521 - TIMER, PREHEATING 28521 - TIMER, PREHEATING 28599 - RELAY ASSY, SOLENOID 81402 - SOCKET SUB-ASSY, INSPECTION LAMP, NO.1 81980 - FLASHER ASSY, TURN SIGNAL 83650 - FUSEE 83651 - CLAMP, FUSEE 85550 - RESISTOR ASSY, PILOT LAMP 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85916 - RELAY, LIGHT CONTROL 85916 - RELAY, LIGHT CONTROL 85924 - RELAY, IGNITION CONTROL 85940 - RELAY ASSY, WINDSHIELD WIPER 85948 - RELAY, WINDSHIELD WIPER 85948 - RELAY, WINDSHIELD WIPER 85999D - BRACKET, RELAY, NO.4 86651 - BUZZER ASSY, BACK 89310 - RELAY ASSY, TURN SIGNAL CANCELLING 89310 - RELAY ASSY, TURN SIGNAL CANCELLING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
