TOYOTA LAND CRUISER VAN FJ61V-KC / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

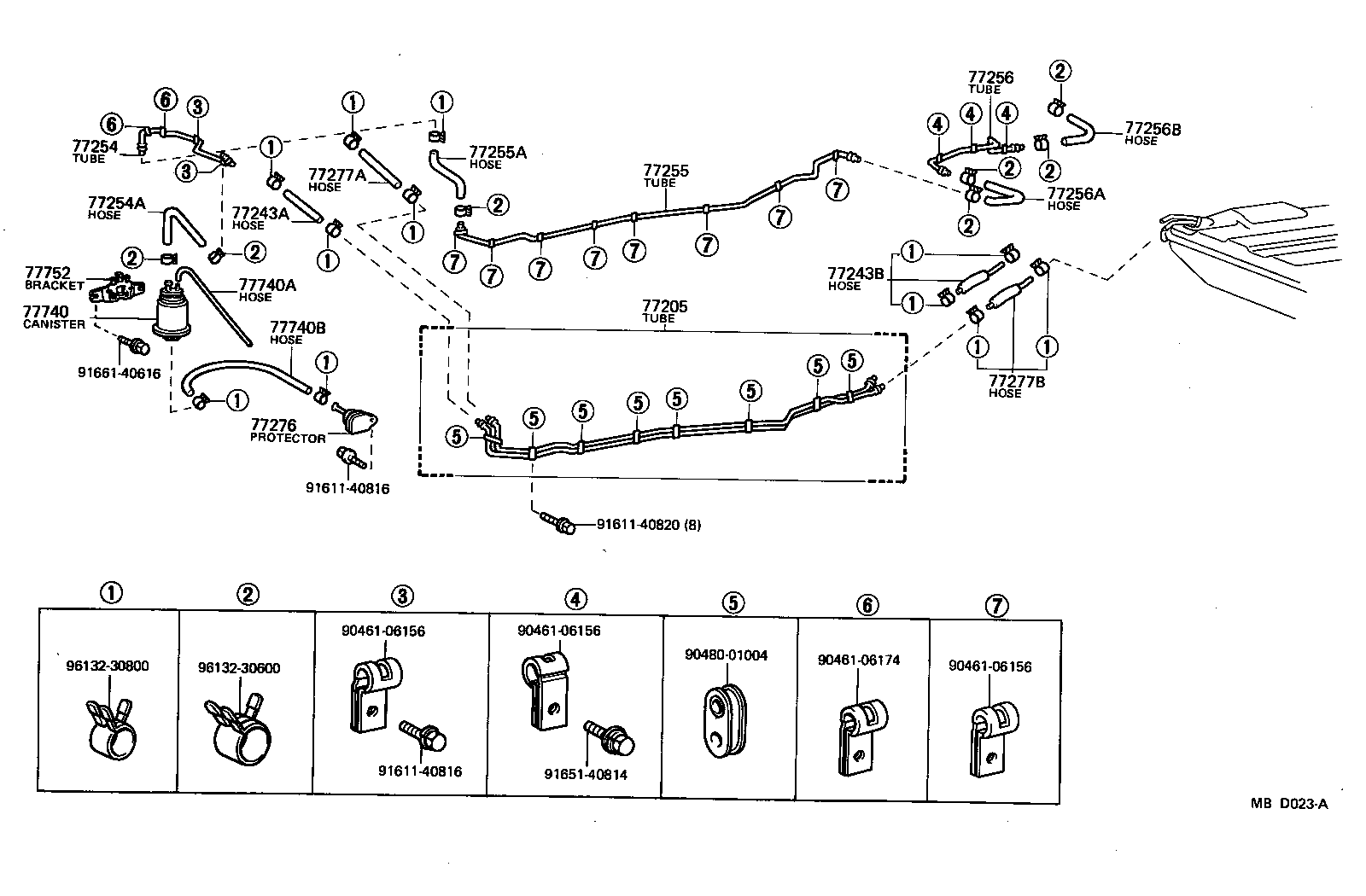

FUEL TANK TUBE

ILLUST NO. 2 OF 2(8008-8411)FJ6#..CBU

LAND CRUISER VAN | FUEL TANK TUBE 77205 - TUBE SUB-ASSY, FUEL MAIN 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) 77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3) 77254 - TUBE, FUEL EMISSION, NO.1 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) 77255 - TUBE, FUEL EMISSION, NO.2 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) 77256 - TUBE, FUEL EMISSION, NO.3 77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3) 77256B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.3) 77276 - PROTECTOR, FUEL HOSE 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) 77740 - CANISTER ASSY, CHARCOAL 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) 77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) 77752 - BRACKET, CHARCOAL CANISTER SUPPORT ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
