TOYOTA SPRINTER CARIB AL25G-MWFNS / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT SEAT SEAT TRACK

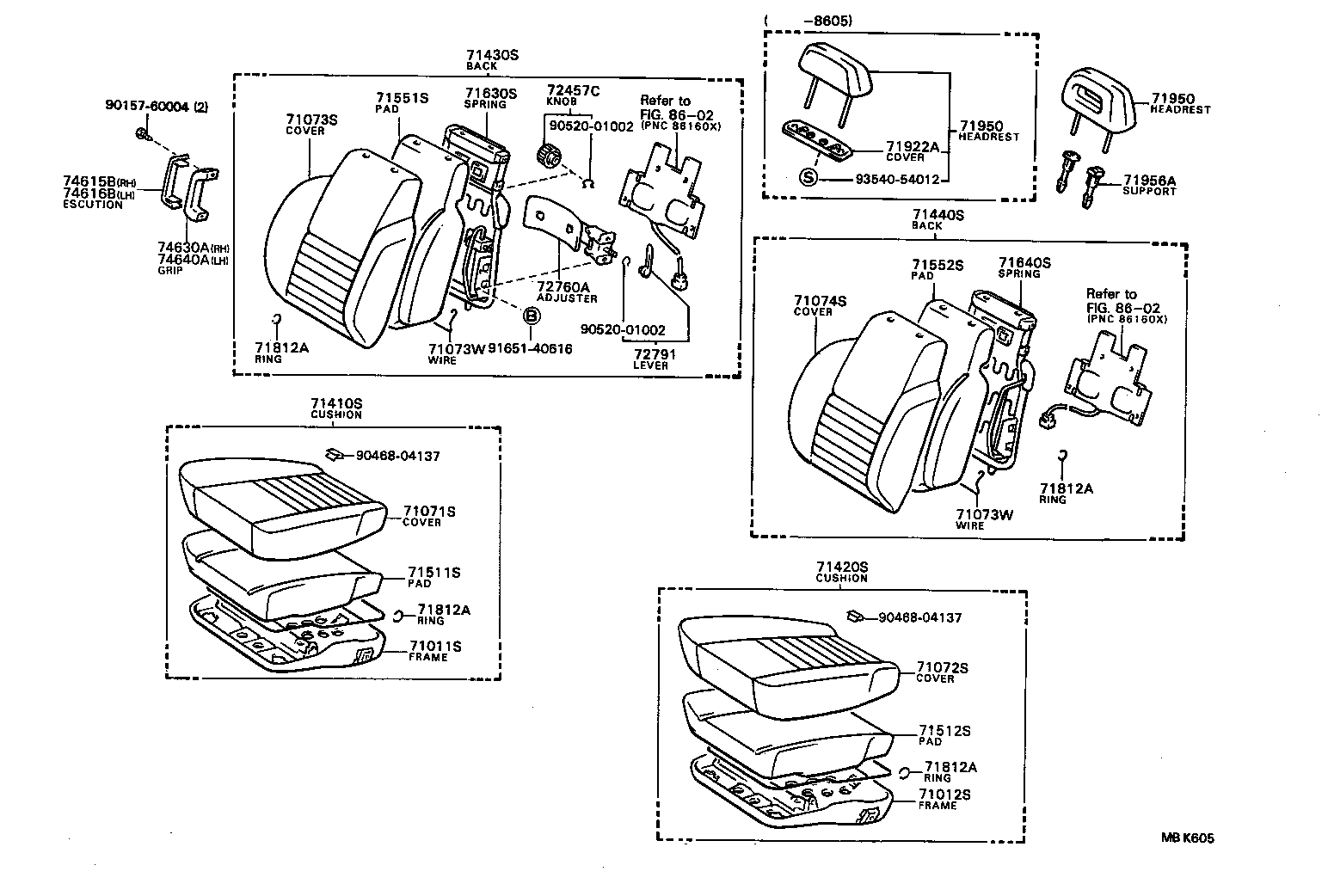

ILLUST NO. 1 OF 2(8208- )AV2 ; (8304-8310)AV1

SPRINTER CARIB | FRONT SEAT SEAT TRACK 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71073W - WIRE, FRONT SEAT BACK COVER 71073W - WIRE, FRONT SEAT BACK COVER 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71812A - RING, HOG, SMALL (FOR FRONT SEAT) 71812A - RING, HOG, SMALL (FOR FRONT SEAT) 71812A - RING, HOG, SMALL (FOR FRONT SEAT) 71812A - RING, HOG, SMALL (FOR FRONT SEAT) 71922A - COVER, FRONT SEAT HEADREST UNDER 71950 - HEADREST ASSY, FRONT SEAT 71950 - HEADREST ASSY, FRONT SEAT 71956A - SUPPORT, FRONT SEAT HEADREST 72457C - KNOB, SIDE SUPPORT ADJUSTER 72760A - ADJUSTER ASSY, LUMBAR SUPPORT 72791 - LEVER, LUMBAR SUPPORT 74615B - ESCUTCHEON, ASSIST GRIP, RH 74616B - ESCUTION, ASSIST GRIP, LH 74630A - GRIP SUB-ASSY, ASSIST, RH 74640A - GRIP SUB-ASSY, ASSIST, LH ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
