TOYOTA TOWN MASTERACE V WG YR20G-PGZ / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

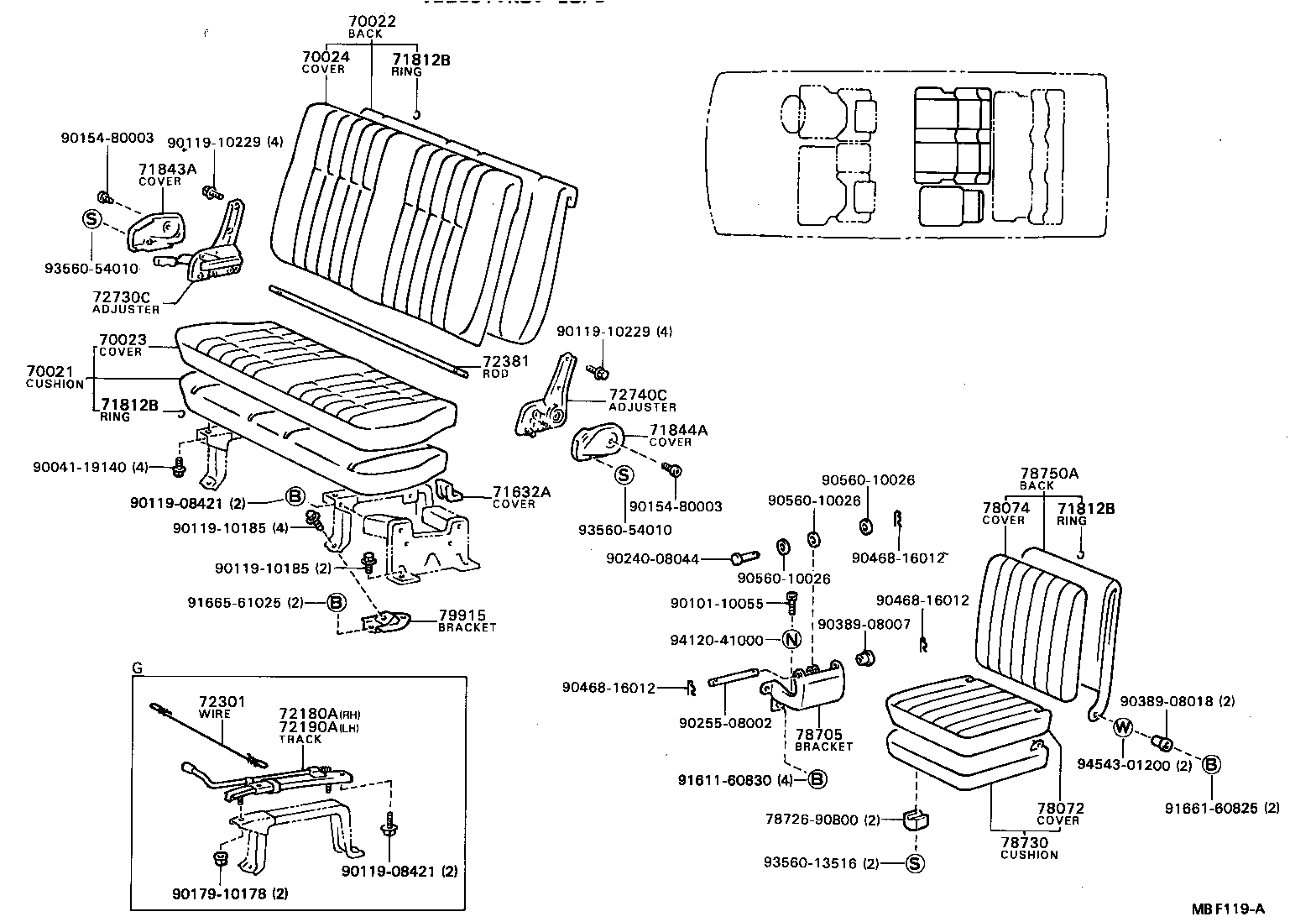

ILLUST NO. 2 OF 3(8211-8408)YR20,21..D,G

TOWN MASTERACE V WG | SEAT SEAT TRACK 70021 - CUSHION ASSY, NO.2 SEAT 70022 - BACK ASSY, NO.2 SEAT 70023 - COVER ASSY, NO.2 SEAT CUSHION 70024 - COVER ASSY, NO.2 SEAT BACK 71632A - COVER, REAR SEAT, OUTER 71812B - CLIP(FOR REAR SEAT CUSHION COVER) 71812B - CLIP(FOR REAR SEAT CUSHION COVER) 71812B - CLIP(FOR REAR SEAT CUSHION COVER) 71843A - COVER, REAR SEAT RECLINING, NO.2 RH 71844A - COVER, REAR SEAT RECLINING, NO.2 LH 72180A - TRACK ASSY, REAR NO.2 SEAT, RH 72190A - TRACK ASSY, REAR NO.2 SEAT, LH 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING 72381 - ROD, RECLINING ADJUSTER EQUALIZING, NO.1 72730C - ADJUSTER ASSY, NO.2 SEAT RECLINING, RH 72740C - ADJUSTER ASSY, NO.2 SEAT RECLINING, LH 78072 - COVER SUB-ASSY, SUB SEAT CUSHION, LH 78074 - COVER SUB-ASSY, SUB SEAT BACK, LH 78705 - BRACKET SUB-ASSY, SUB SEAT CUSHION ** Std Part 78730 - CUSHION ASSY, SUB SEAT, LH 78750A - BACK ASSY, SUB SEAT, LH 79915 - BRACKET, SEAT LEG ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
