TOYOTA HILUX LN60V-MSX / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

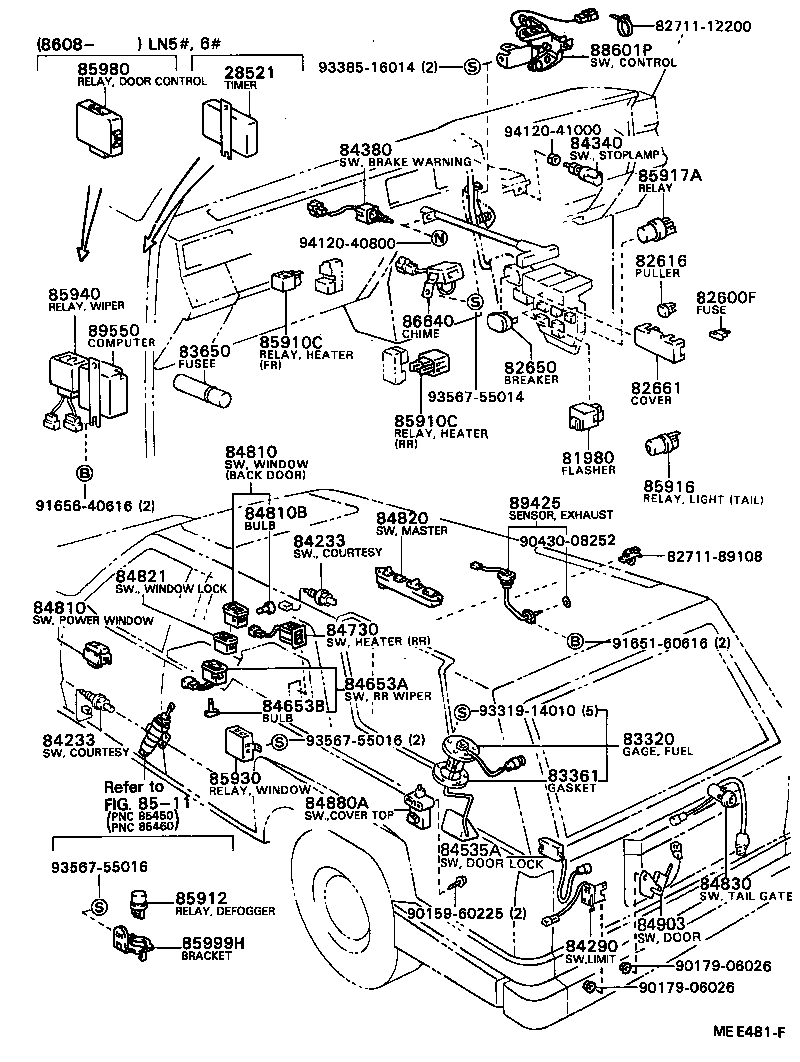

ILLUST NO. 4 OF 4(8405- )V,WG

HILUX | SWITCH RELAY COMPUTER 28521 - TIMER, PREHEATING 81980 - FLASHER ASSY, TURN SIGNAL 82600F - FUSE, FUSE BLOCK 82616 - PULLER, FUSE 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 82661 - COVER, RELAY BLOCK, NO.1 ** Std Part ** Std Part 83320 - GAGE ASSY, FUEL SENDER 83361 - GASKET, FUEL SENDER GAGE 83650 - FUSEE 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 84290 - SWITCH ASSY, LIMIT 84340 - SWITCH ASSY, STOP LAMP 84380 - SWITCH ASSY, BRAKE WARNING TEST 84535A - SWITCH, DOOR LOCK 84653A - SWITCH, REAR WIPER 84653B - BULB, REAR WIPER SWITCH 84730 - SWITCH ASSY, HEATER BLOWER 84810 - SWITCH ASSY, POWER WINDOW REGULATOR 84810 - SWITCH ASSY, POWER WINDOW REGULATOR 84810B - BULB (FOR POWER WINDOW REGULATOR SWITCH) 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR 84821 - SWITCH, POWER WINDOW LOCK 84830 - SWITCH ASSY, TAIL GATE CONTROL 84880A - SWITCH ASSY, COVER TOP 84903 - SWITCH SUB-ASSY, DOOR UN-LOCK ** Refer Fig 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85912 - RELAY, DEFOGGER 85916 - RELAY, LIGHT CONTROL 85917A - RELAY, FOUR WHEEL DRIVE INDICATOR 85930 - RELAY ASSY, POWER WINDOW 85940 - RELAY ASSY, WINDSHIELD WIPER 85980 - RELAY ASSY, DOOR CONTROL 85999H - BRACKET, RELAY 86640 - CHIME ASSY 88601P - SWITCH SUB-ASSY, CONTROL 89425 - SENSOR, EXHAUST GAS TEMPERATURE 89550 - COMPUTER ASSY, EMISSION CONTROL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
