TOYOTA DYNA TOYOACE BU70V-MDJ / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

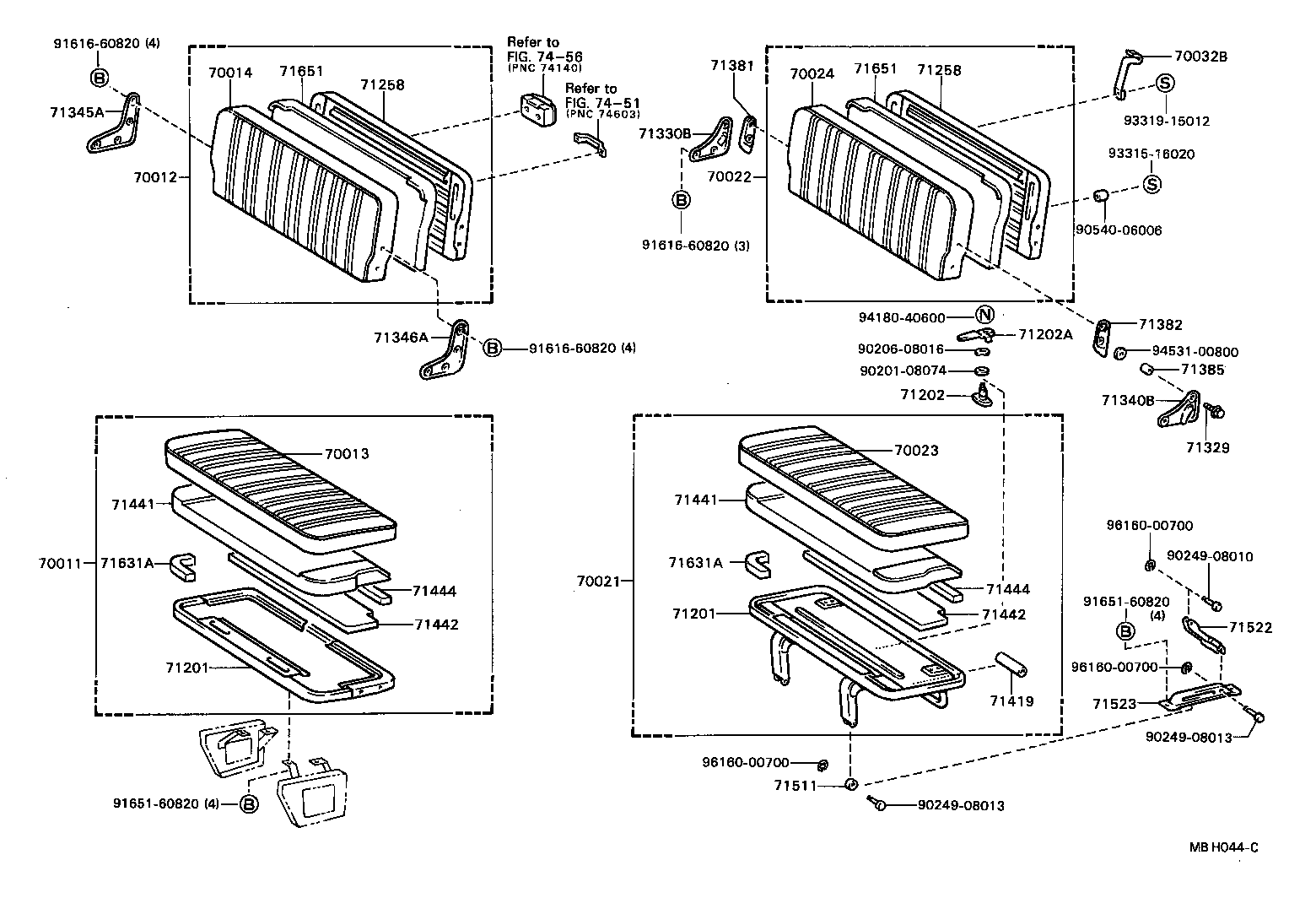

SEAT SEAT TRACK

ILLUST NO. 2 OF 2(8409- )09S

DYNA TOYOACE | SEAT SEAT TRACK 70011 - CUSHION ASSY, NO.1 SEAT 70012 - BACK ASSY, NO.1 SEAT 70013 - COVER ASSY, NO.1 SEAT CUSHION 70014 - COVER ASSY, NO.1 SEAT BACK 70021 - CUSHION ASSY, NO.2 SEAT 70022 - BACK ASSY, NO.2 SEAT 70023 - COVER ASSY, NO.2 SEAT CUSHION 70024 - COVER ASSY, NO.2 SEAT BACK 70032B - BAND, REAR SEAT BACK NO.2 71201 - PANEL SUB-ASSY, REAR SEAT CUSHION 71201 - PANEL SUB-ASSY, REAR SEAT CUSHION 71202 - STOPPER SUB-ASSY, REAR SEAT LEG 71202A - HANDLE, REAR SEAT LEG STOPPER 71258 - PANEL SUB-ASSY, REAR SEAT BACK 71258 - PANEL SUB-ASSY, REAR SEAT BACK 71329 - BOLT, REAR SEAT HINGE 71330B - HINGE ASSY, REAR NO.2 SEAT, RH 71340B - HINGE ASSY, REAR NO.2 SEAT, LH 71345A - STAY, REAR SEAT BACK, RH 71346A - STAY, REAR SEAT BACK, LH 71381 - HINGE, REAR SEAT BACK STOP, NO.1 71382 - HINGE, REAR SEAT BACK STOP, NO.2 71385 - SPACER, REAR SEAT HINGE 71419 - CUSHION (FOR REAR SEAT LEG) 71441 - PAD, REAR SEAT CUSHION 71441 - PAD, REAR SEAT CUSHION 71442 - PAD, REAR SEAT CUSHION, UNDER 71442 - PAD, REAR SEAT CUSHION, UNDER 71444 - PAD, REAR SEAT CUSHION, REAR 71444 - PAD, REAR SEAT CUSHION, REAR 71511 - ROLLER, REAR SEAT LEG 71522 - LINK, REAR SEAT 71523 - RAIL, REAR SEAT 71631A - PAD, REAR SEAT CUSHION CORNER 71631A - PAD, REAR SEAT CUSHION CORNER 71651 - PAD, REAR NO.1 SEAT BACK 71651 - PAD, REAR NO.1 SEAT BACK ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
