TOYOTA SUPRA GA70-BLMGE / POWERTRAIN-CHASSIS / STEERING COLUMN SHAFT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

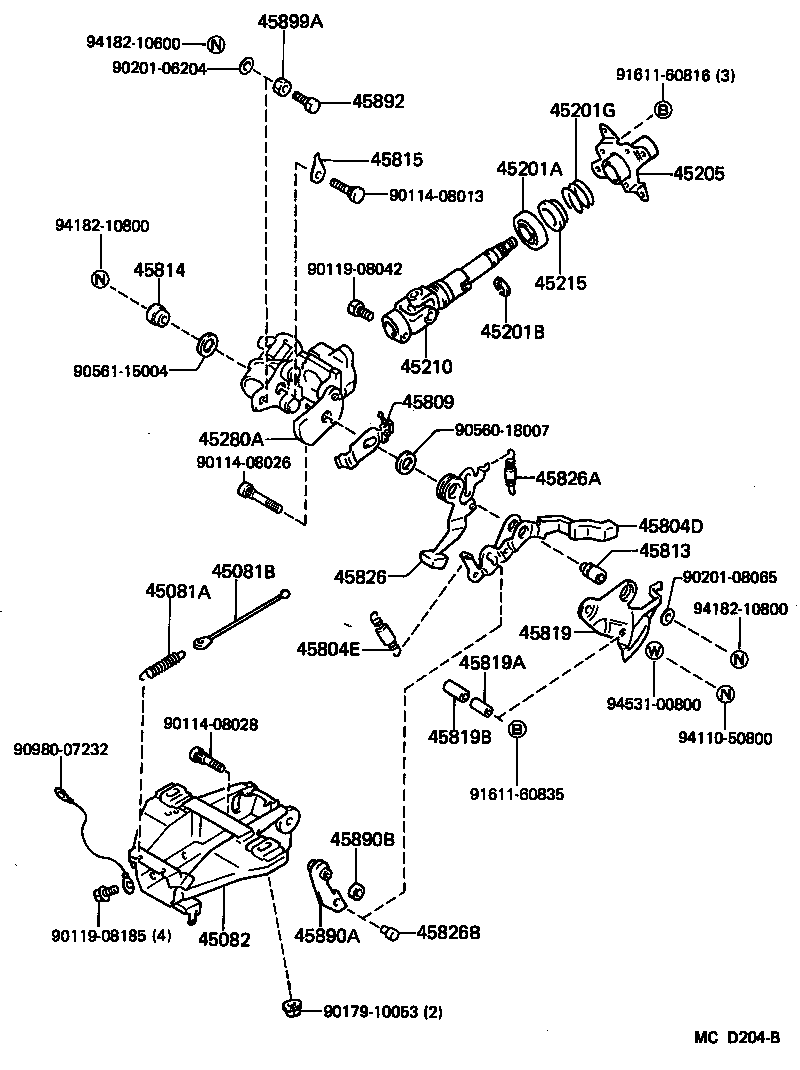

STEERING COLUMN SHAFT

ILLUST NO. 2 OF 2(8602- )G,S

SUPRA | STEERING COLUMN SHAFT 45081A - SPRING, TENSION(FOR TILT STEERING) 45081B - CORD(FOR TILT STEERING) 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE 45201A - BEARING(FOR STEERING MAIN SHAFT) 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) 45205 - TUBE SUB-ASSY, STEERING COLUMN 45210 - SHAFT ASSY, STEERING MAIN 45215 - COLLAR, MAIN SHAFT BEARING THRUST 45280A - BRACKET ASSY, STEERING COLUMN, UPPER 45804D - LEVER SUB-ASSY, STEERING TILT(FOR TILT UP CONTROL) 45804E - SPRING, TENSION(FOR STEERING TILT LEVER) 45809 - COVER SUB-ASSY, ADJUSTER MEMORY 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 45815 - SHIM, TILT STEERING SUPPORT 45819 - RETAINER, TILT LEVER 45819A - COLLAR(FOR TILT LEVER RETAINER) 45819B - CUSHION(FOR TILT LEVER RETAINER) 45826 - LEVER, STEERING TILT 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) 45826B - PIN(FOR STEERING TILT LEVER) 45890A - PAWL ASSY, TILT STEERING 45890B - SPACER(FOR TILT STEERING PAWL) 45892 - BOLT, TILT STEERING SUPPORT STOPPER 45899A - COVER, TILT STEERING SUPPORT STOPPER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
