TOYOTA SPRINTER AE81-FEKNS / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

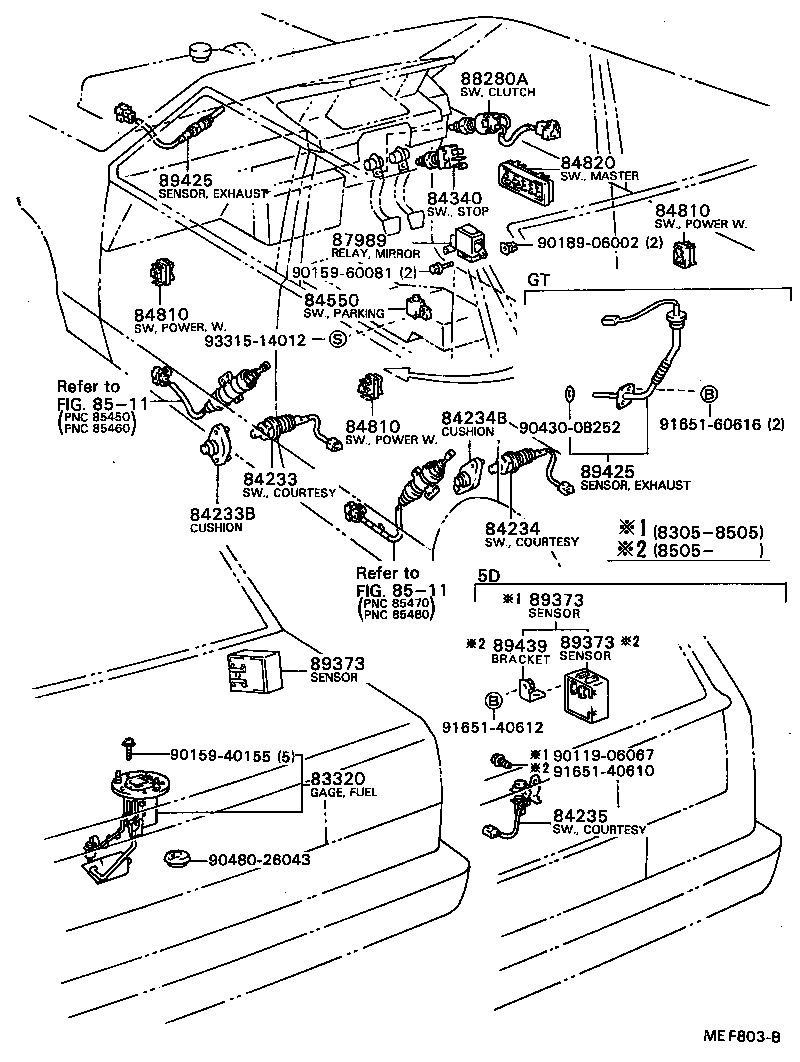

SWITCH RELAY COMPUTER

ILLUST NO. 4 OF 4(8305- )

SPRINTER | SWITCH RELAY COMPUTER 83320 - GAGE ASSY, FUEL SENDER 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) 84340 - SWITCH ASSY, STOP LAMP 84550 - SWITCH ASSY, PARKING BRAKE 84810 - SWITCH ASSY, POWER WINDOW REGULATOR 84810 - SWITCH ASSY, POWER WINDOW REGULATOR 84810 - SWITCH ASSY, POWER WINDOW REGULATOR 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR ** Refer Fig ** Refer Fig 87989 - RELAY, MIRROR CONTROL 88280A - SWITCH ASSY, CLUTCH 89373 - SENSOR, LAMP FAILURE INDICATOR 89373 - SENSOR, LAMP FAILURE INDICATOR 89373 - SENSOR, LAMP FAILURE INDICATOR 89425 - SENSOR, EXHAUST GAS TEMPERATURE 89425 - SENSOR, EXHAUST GAS TEMPERATURE 89439 - BRACKET, SENSOR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
