TOYOTA CENTURY VG45-GESQE / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

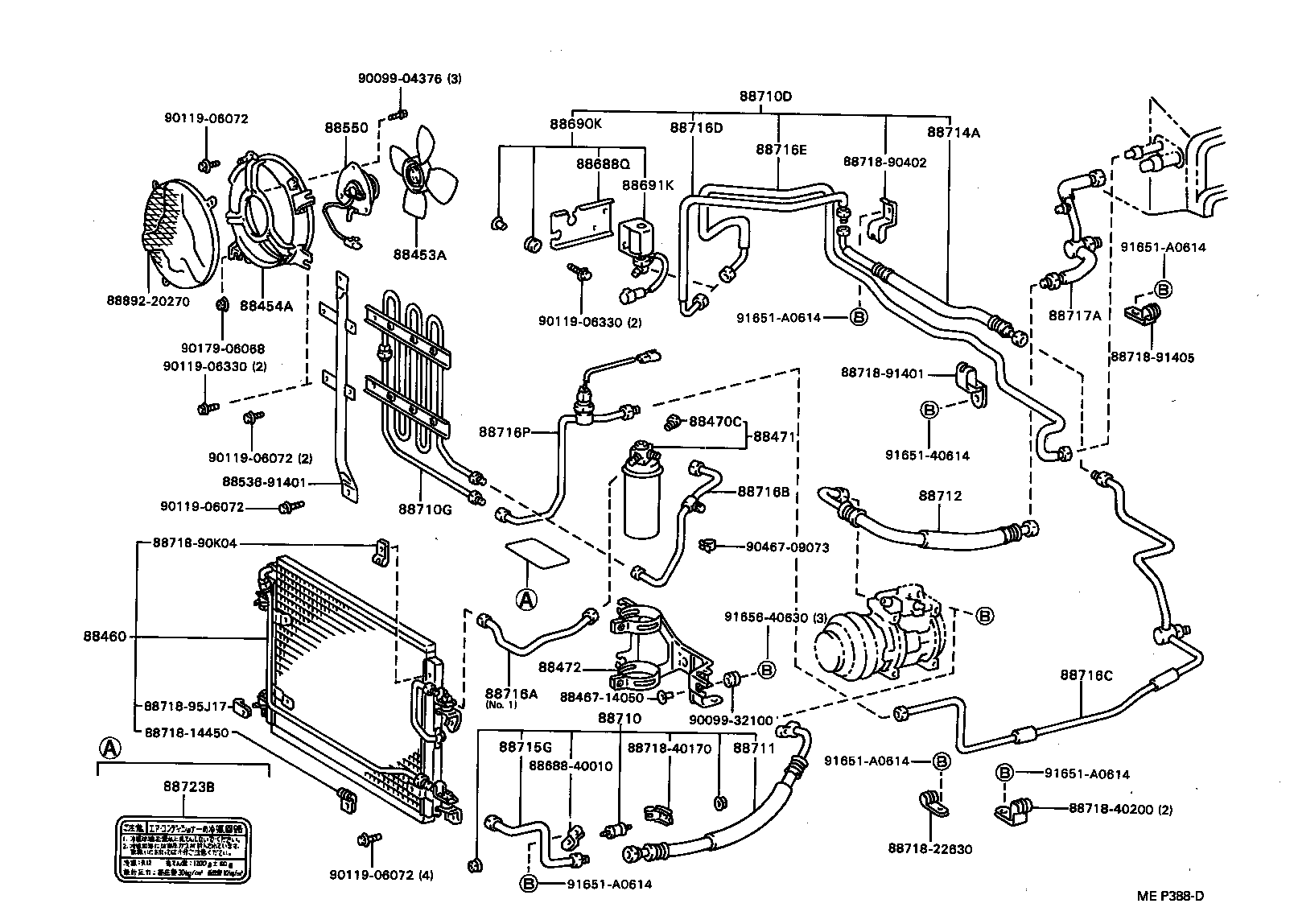

ﾘﾑｼﾞﾝ S,H ILLUST NO. 1 OF 4(8910-9009)4HC..E ; (9009-9212)VG45..4HC

CENTURY | HEATING AIR CONDITIONING COOLER PIPING 88453A - FAN, COOLING 88454A - SHROUD, FAN 88460 - CONDENSER ASSY, COOLER ** Std Part 88470C - BOLT, FUSE 88471 - TANK, RECEIVER AIR CONDITIONER 88472 - BRACKET, RECEIVER TANK, NO.1 ** Std Part 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) ** Std Part 88688Q - BRACKET (FOR MAGNET VALVE) 88690K - VALVE ASSY, MAGNET 88691K - VALVE ASSY, MAGNET 88710 - TUBE ASSY, AIRCONDITIONER 88710D - TUBE ASSY, AIRCONDITIONER 88710G - TUBE & ACCESSORY ASSY, AIRCONDITIONER, NO.2 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2 88715G - TUBE, DISCHARGE, G 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88716C - PIPE, COOLER REFRIGERANT LIQUID, C 88716D - PIPE, COOLER REFRIGERANT LIQUID, D 88716E - PIPE, COOLER REFRIGERANT LIQUID, E 88716P - PIPE, COOLER REFRIGERANT LIQUID, P 88717A - PIPE, COOLER REFRIGERANT SUCTION, A ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88723B - LABEL, COOLER SERVICE CAUTION ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
