TOYOTA LAND CRUISER VAN FJ80G-GNPEE / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

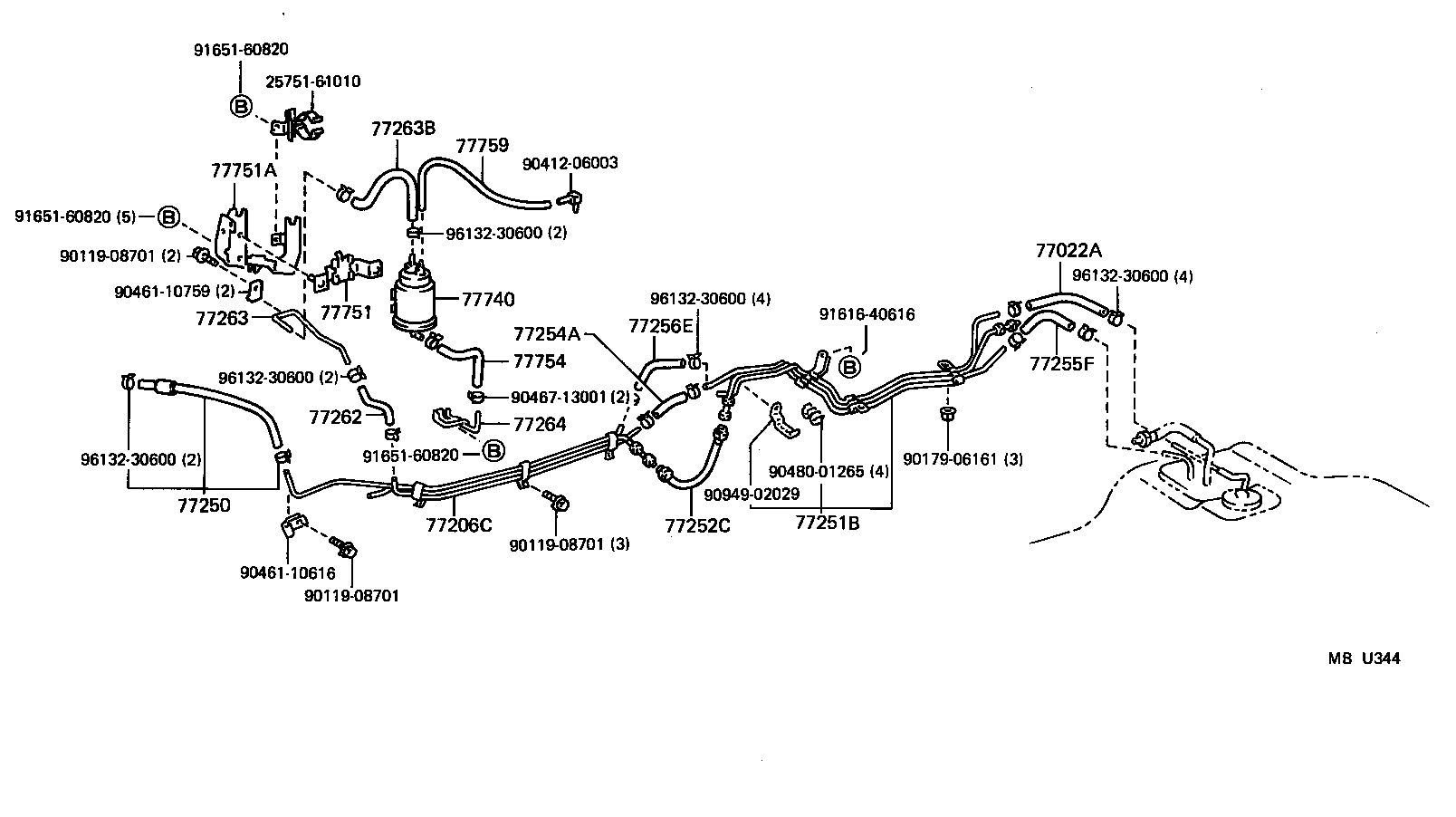

FUEL TANK TUBE

ILLUST NO. 2 OF 2(9001-9208)FJ80

LAND CRUISER VAN | FUEL TANK TUBE ** Std Part 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 77250 - HOSE ASSY, FUEL RETURN 77251B - TUBE, FUEL MAIN 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) 77256E - HOSE, FUEL, NO.2 (FOR FUEL RETURN NO.2 TUBE) 77262 - TUBE, FUEL EMISSION, NO.2 77263 - TUBE, FUEL TANK TO CANISTER, NO.3 77263B - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER NO.3 TUBE) 77264 - TUBE, CANISTER TO FRONT SIDE MEMBER 77740 - CANISTER ASSY, CHARCOAL 77751 - BRACKET, CHARCOAL CANISTER BASE 77751A - BRACKET, CHARCOAL CANISTER BASE 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 77759 - HOSE, CHARCOAL CANISTER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
