TOYOTA LAND CRUISER VAN HZJ81V-RNMNS / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

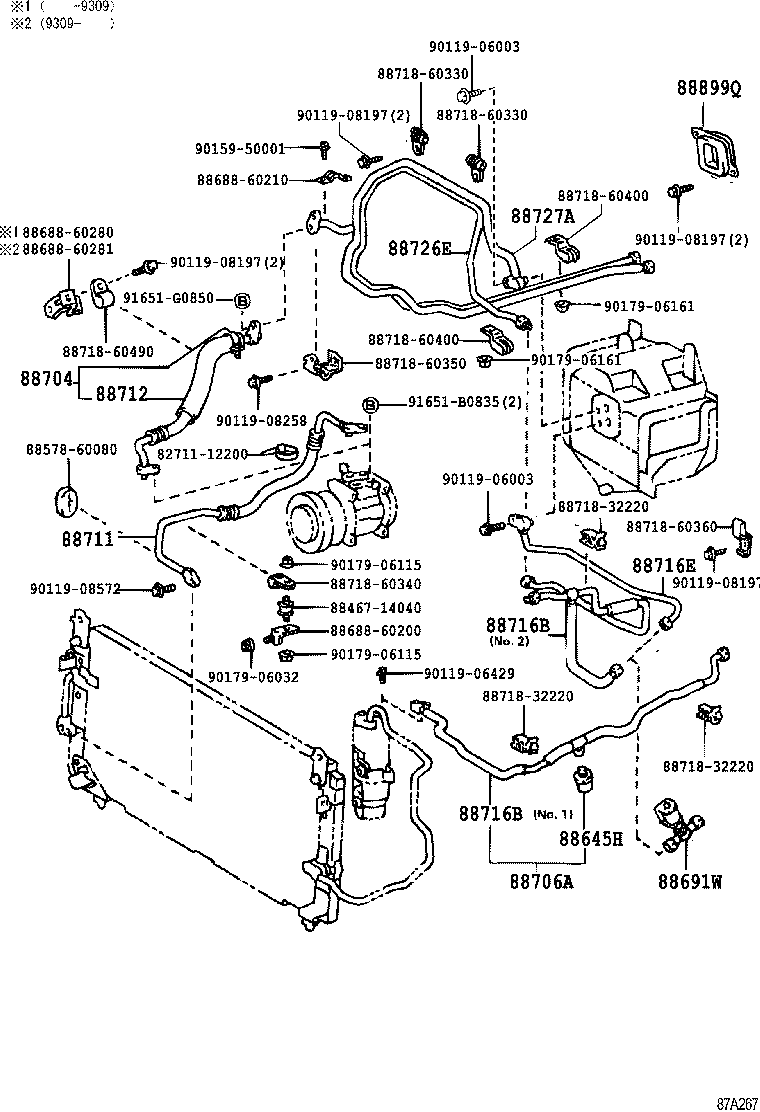

FRONT PIPING---W(COOL BOX) ILLUST NO. 2 OF 4(9001-9501)

 LAND CRUISER VAN |  HEATING AIR CONDITIONING COOLER PIPING  ** Std Part  ** Std Part  ** Std Part 88645H - SWITCH, PRESSURE NO.1  ** Std Part  ** Std Part  ** Std Part  ** Std Part 88691W - VALVE, MAGNET 88704 - HOSE SUB-ASSY, SUCTION 88706A - TUBE SUB-ASSY, LIQUID, A 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88716E - PIPE, COOLER REFRIGERANT LIQUID, E  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part 88726E - PIPE, COOLER REFRIGERANT LIQUID, E 88727A - PIPE, COOLER REFRIGERANT SUCTION, A 88899Q - PLATE, COVER  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
