TOYOTA LAND CRUISER VAN HZJ81V-RNMNS / POWERTRAIN-CHASSIS / WINCH

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

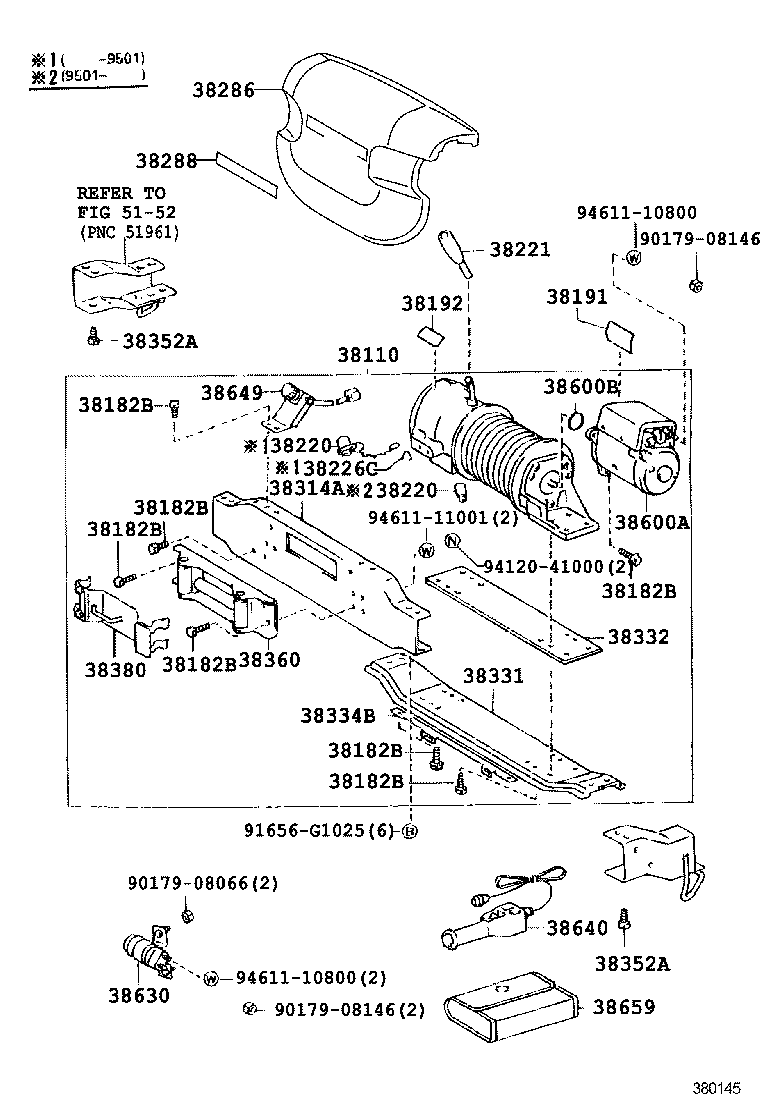

WINCH

デンドウ ウインチ ILLUST NO. 1 OF 3(9001- )

 LAND CRUISER VAN |  WINCH 38110 - WINCH ASSY 38182B - BOLT, WINCH, NO.1 38182B - BOLT, WINCH, NO.1 38182B - BOLT, WINCH, NO.1 38182B - BOLT, WINCH, NO.1 38182B - BOLT, WINCH, NO.1 38182B - BOLT, WINCH, NO.1 38182B - BOLT, WINCH, NO.1 38191 - PLATE, WINCH CAUTION, NO.1 38192 - PLATE, WINCH CAUTION, NO.2 38220 - CAP ASSY, WINCH CLUTCH LEVER 38220 - CAP ASSY, WINCH CLUTCH LEVER 38221 - LEVER, CLUTCH HUB SHIFT 38226C - CHAIN, WINCH LEVER 38286 - COVER, WINCH 38288 - LABEL, WINCH COVER 38314A - CROSSMEMBER, WINCH SUPPORT, FRONT 38331 - BASE, WINCH, NO.1 38332 - BASE, WINCH, NO.2 38334B - BRACKET, WINCH BASE 38352A - BOLT (FOR WINCH BASE SUPPORT) 38352A - BOLT (FOR WINCH BASE SUPPORT) 38360 - BRACKET ASSY, WINCH ROLLER 38380 - HOLDER ASSY, WINCH HOOK 38600A - MOTOR ASSY, W/MAGNET SWITCH, WINCH 38600B - RING, O (FOR WINCH MOTOR) 38630 - SWITCH ASSY, MAGNET, NO.1 38640 - SWITCH ASSY, WINCH CONTROL 38649 - WIRE, WINCH CONTROL 38659 - COVER, WINCH CONTROL SWITCH ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
