TOYOTA LAND CRUISER VAN HZJ81V-RNMNS / POWERTRAIN-CHASSIS / REAR AXLE HOUSING DIFFERENTIAL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR AXLE HOUSING DIFFERENTIAL

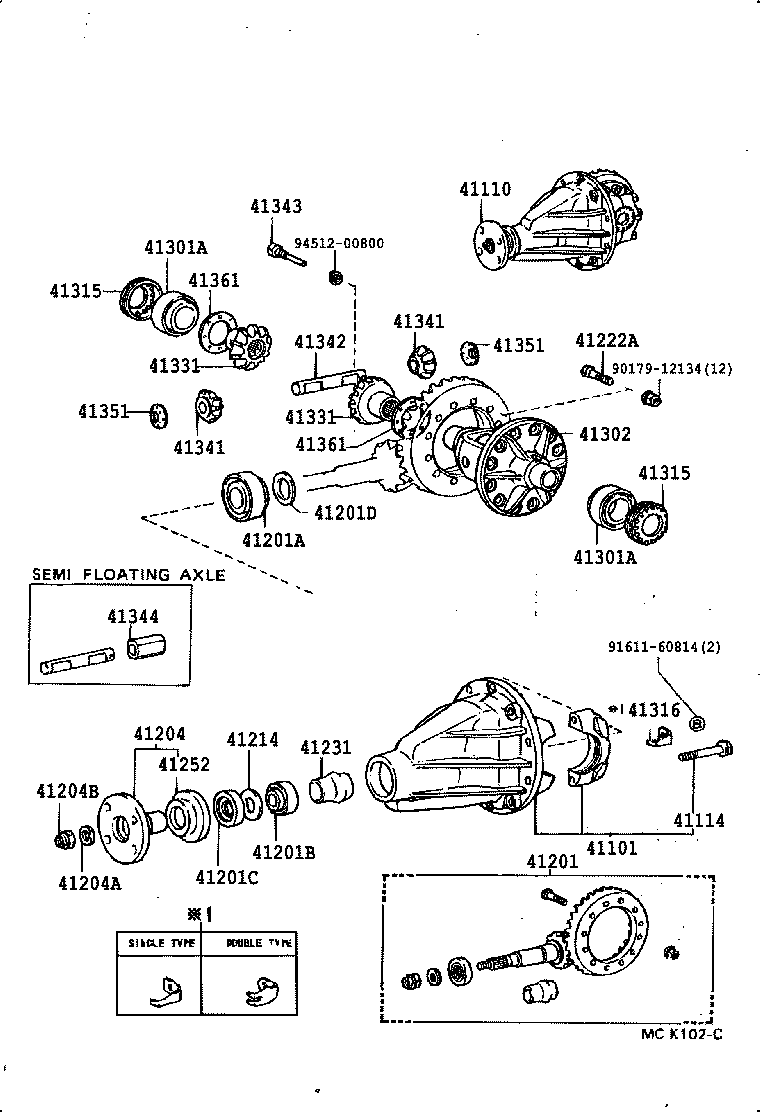

ILLUST NO. 2 OF 3(9001- )

LAND CRUISER VAN | REAR AXLE HOUSING DIFFERENTIAL 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR 41110 - CARRIER ASSY, DIFFERENTIAL, REAR 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR 41201A - BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION REAR) 41201B - BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION FRONT) 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) 41204B - NUT (FOR REAR DRIVE PINION) 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT 41331 - GEAR, REAR DIFFERENTIAL SIDE 41331 - GEAR, REAR DIFFERENTIAL SIDE 41341 - PINION, REAR DIFFERENTIAL 41341 - PINION, REAR DIFFERENTIAL 41342 - SHAFT, REAR DIFFERENTIAL PINION 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT 41344 - SPACER, DIFFERENTIAL PINION SHAFT 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 ** Std Part ** Std Part ** Std Part
