TOYOTA LAND CRUISER VAN HZJ81V-RNMNS / POWERTRAIN-CHASSIS / FRONT AXLE HOUSING DIFFERENTIAL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

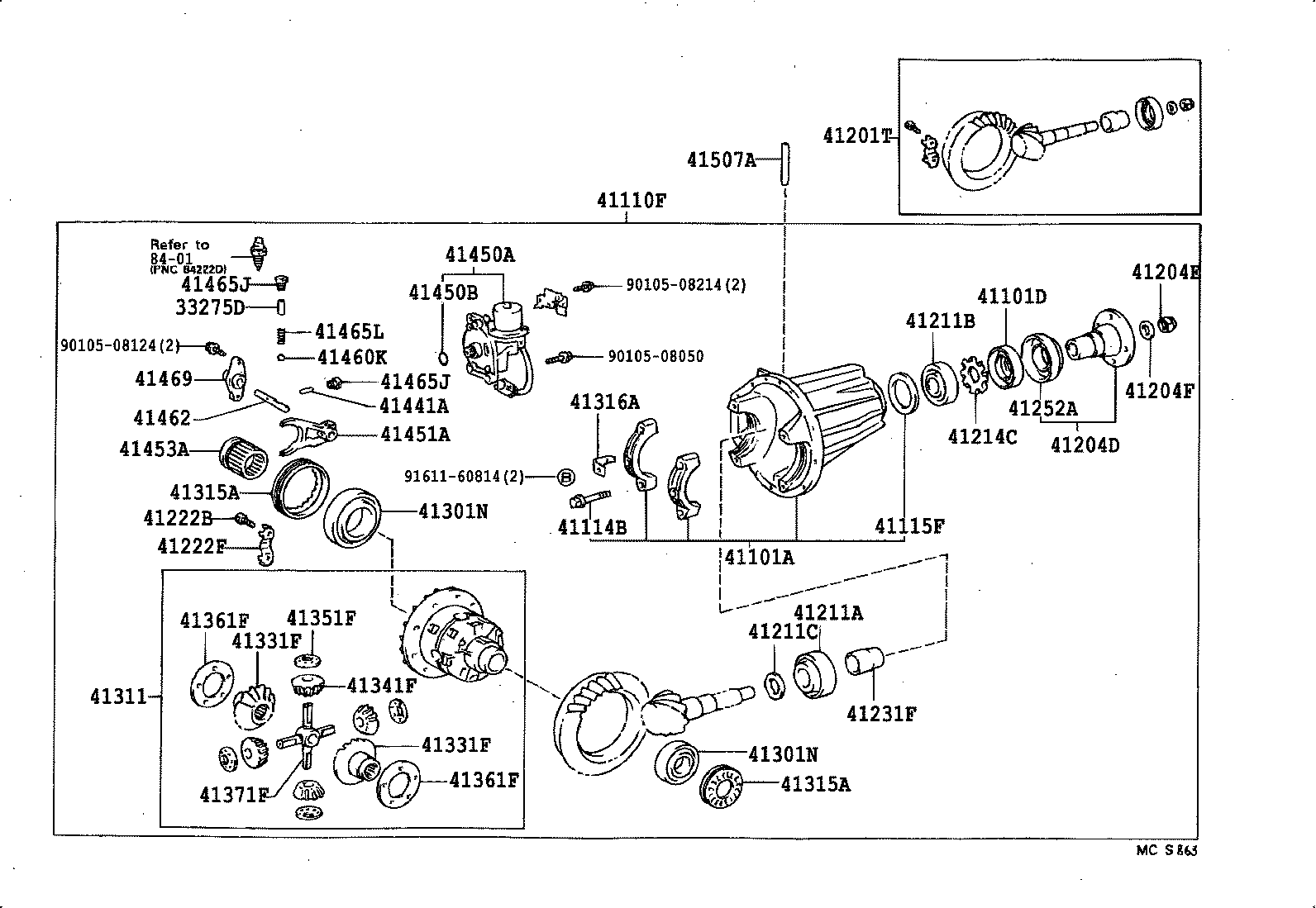

FRONT AXLE HOUSING DIFFERENTIAL

ｱﾘ(ﾃﾞｨﾌｧﾚﾝｼｬﾙ ﾛｯｸ) ILLUST NO. 2 OF 2(9001- )

LAND CRUISER VAN | FRONT AXLE HOUSING DIFFERENTIAL 33275D - SEAT, SHIFT DETENT BALL SPRING 41101A - CARRIER SUB-ASSY, DIFFERENTIAL, FRONT 41101D - SEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER) 41110F - CARRIER ASSY, DIFFERENTIAL, FRONT 41114B - BOLT, FRONT DIFFERENTIAL BEARING CAP 41115F - RING, FRONT DIFFERENTIAL OIL STORAGE 41201T - FINAL GEAR KIT, DIFFERENTIAL, FRONT 41204D - FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT 41204E - NUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT) 41204F - WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE FRONT) 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) 41211C - GEAR, DIFFERENTIAL RING 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING 41252A - DEFLECTOR, DUST (FOR FRONT DIFFERENTIAL) 41301N - BEARING(FOR FRONT DIFFERENTIAL CASE) 41301N - BEARING(FOR FRONT DIFFERENTIAL CASE) 41311 - CASE, FRONT DIFFERENTIAL 41315A - NUT, FRONT DIFFERENTIAL BEARING ADJUSTING 41315A - NUT, FRONT DIFFERENTIAL BEARING ADJUSTING 41316A - LOCK, FRONT DIFFERENTIAL BEARING ADJUSTING NUT 41331F - GEAR, FRONT DIFFERENTIAL SIDE 41331F - GEAR, FRONT DIFFERENTIAL SIDE 41341F - PINION, FRONT DIFFERENTIAL 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 41371F - SPIDER, FRONT DIFFERENTIAL 41441A - PIN, SLOTTED SPRING (FOR DIFFERENTIAL SHIFT FORK) 41450A - ACTUATOR, DIFFERENTIAL LOCK SHIFT, NO.2 41450B - RING, O (FOR DIFFERENTIAL LOCK SHAFT RETAINER) 41451A - FORK, FRONT DIFFERENTIAL LOCK SHIFT 41453A - SLEEVE, FRONT DIFFERENTIAL LOCK 41460K - BALL (FOR FRONT DIFFERENTIAL LOCK CYLINDER) 41462 - SHAFT, FRONT DIFFERENTIAL LOCK SHIFT FORK 41465J - PLUG (FOR FRONT DIFFERENTIAL LOCK CYLINDER) 41465J - PLUG (FOR FRONT DIFFERENTIAL LOCK CYLINDER) 41465L - SPRING, COMPRESSION(FOR FRONT DIFFERENTIAL LOCK RETAINER) 41469 - RETAINER, DIFFERENTIAL LOCK SHAFT 41507A - TUBE, FRONT DIFFERENTIAL LOCK ACTUATOR BREATHER, NO.2 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part
