TOYOTA STARLET NP80-AHMGS / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

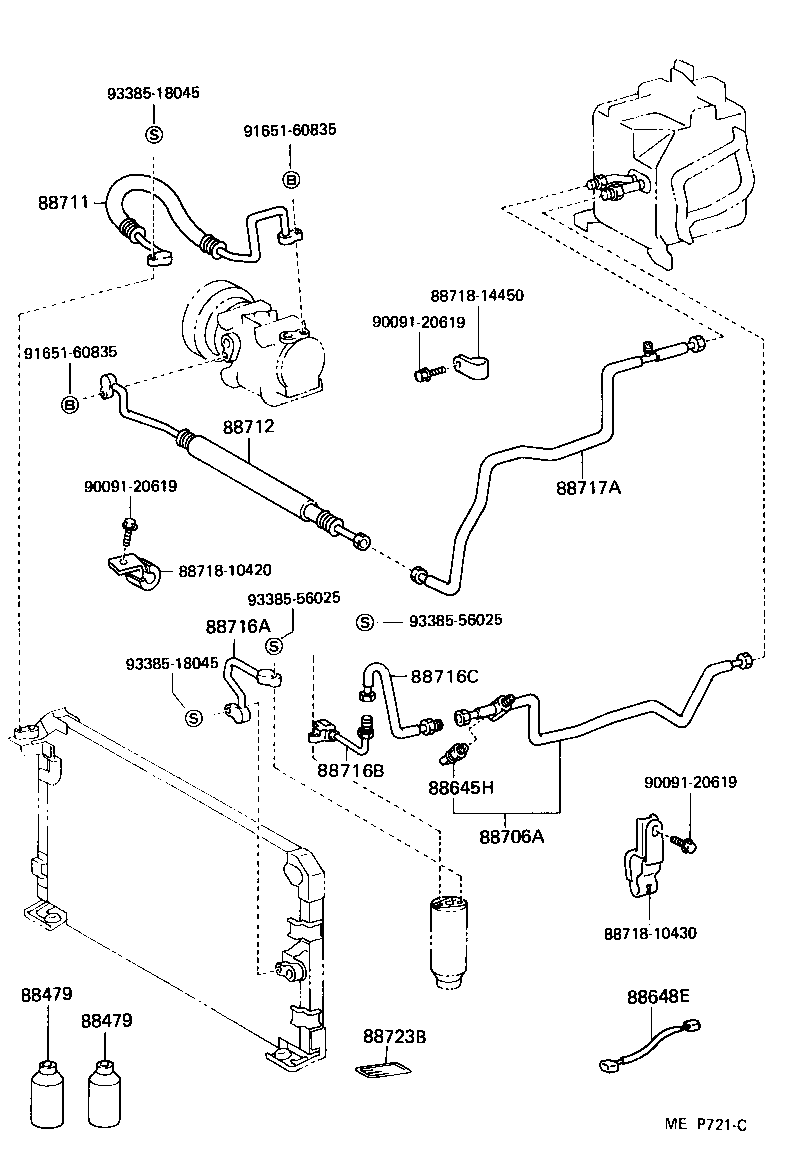

HEATING AIR CONDITIONING COOLER PIPING

PIPING(2) (8912-9201)NP80..5F

STARLET | HEATING AIR CONDITIONING COOLER PIPING 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) 88645H - SWITCH, PRESSURE NO.1 88648E - WIRING, COOLER 88706A - TUBE SUB-ASSY, LIQUID, A 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88716C - PIPE, COOLER REFRIGERANT LIQUID, C 88717A - PIPE, COOLER REFRIGERANT SUCTION, A ** Std Part ** Std Part ** Std Part 88723B - LABEL, COOLER SERVICE CAUTION ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
