TOYOTA TOWN MASTERACE V WG CR27V-PDZF / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

VALVE BODY OIL STRAINER ATM

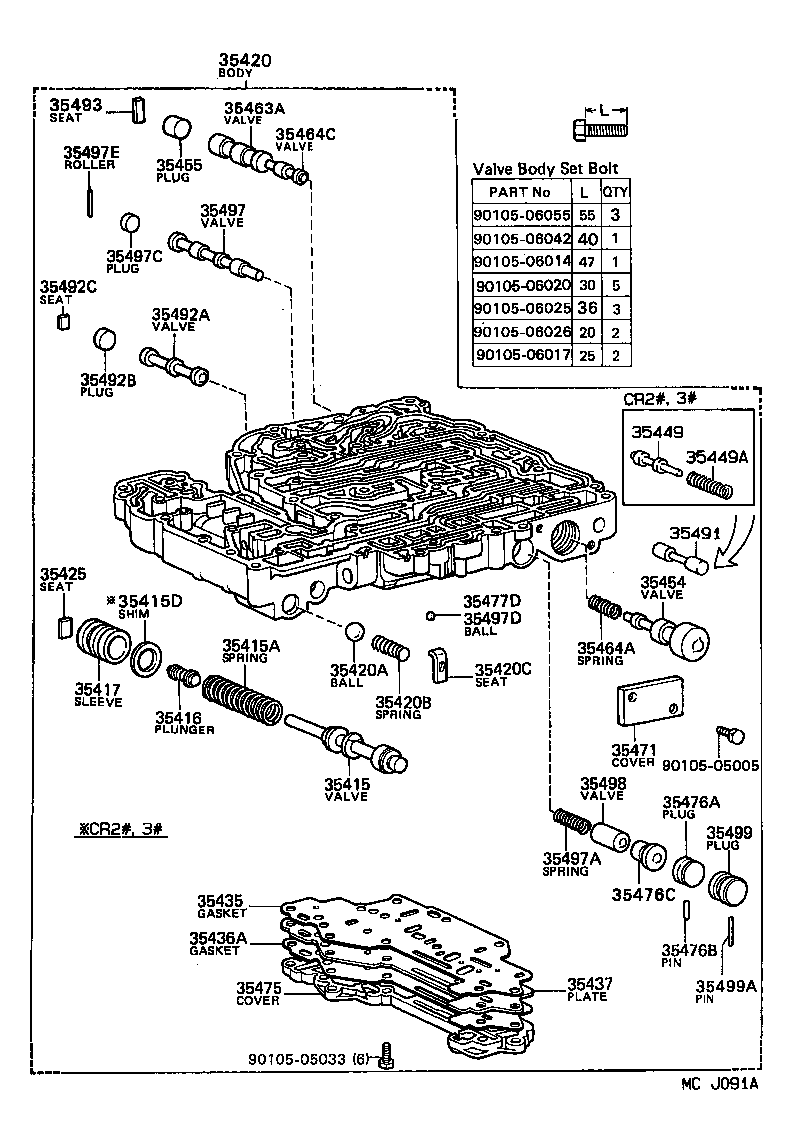

ILLUST NO. 3 OF 3(8808- )CR27,28,36,YR20,25,28,3#..4FC

TOWN MASTERACE V WG | VALVE BODY OIL STRAINER ATM 35415 - VALVE, PRESSURE REGULATOR 35415A - SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE) 35415D - SHIM (FOR PRESSURE REGULATOR VALVE) 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 35417 - SLEEVE, PRESSURE REGULATOR VALVE 35420 - BODY ASSY, LOWER VALVE 35420A - BALL (FOR PRESSURE RELIEF) 35420B - SPRING (FOR PRESSURE RELIEF) 35420C - SEAT (FOR PRESSURE RELIEF) 35425 - SEAT, PRESSURE REGULATOR VALVE SLEEVE 35435 - GASKET, VALVE BODY PLATE, NO.3 35436A - GASKET, VALVE BODY PLATE, NO.4 35437 - PLATE, 3-4 SHIFT VALVE SEPARATOR 35449 - VALVE, SEQUENCE 35449A - SPRING, COMPRESSION (FOR SEQUENCE VALVE) 35454 - VALVE, LOW COAST SHIFT 35455 - PLUG, 1-2 SHIFT VALVE LOW 35463A - VALVE, 1-2 SHIFT, LOWER 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) 35464C - VALVE, 1-2 SHIFT, UPPER 35471 - COVER, VALVE BODY, NO.1 35475 - COVER, VALVE BODY, NO.5 35476A - PLUG, STRAIGHT (FOR 3RD COAST SHIFT) 35476B - PIN, LOCATING (FOR 3RD COAST SHIFT) 35476C - VALVE, 3RD COAST 35477D - BALL, CHECK (FOR OVERDRIVE CLUTCH EXHAUST VALVE) 35491 - PLUG, REVERSE BRAKE 35492A - VALVE, MANUAL DOWN TIMING 35492B - PLUG (FOR MANUAL DOWN TIMING VALVE) 35492C - SEAT, VALVE (FOR MANUAL DOWN TIMING VALVE) 35493 - SEAT, SHIFT VALVE SPRING 35497 - VALVE, 3-4 SHIFT 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) 35497C - PLUG (FOR 3-4 SHIFT VALVE) 35497D - BALL, CHECK (FOR 3-4 SHIFT VALVE) 35497E - ROLLER, NEEDLE (FOR 3-4 SHIFT VALVE) 35498 - VALVE, 3-4 COAST SHIFT 35499 - PLUG, 3-4 SHIFT VALVE 35499A - PIN, STRAIGHT (FOR 3-4 SHIFT VALVE) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
