TOYOTA TOWN MASTERACE V WG CR27V-PDZF / POWERTRAIN-CHASSIS / FRONT STEERING GEAR LINK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

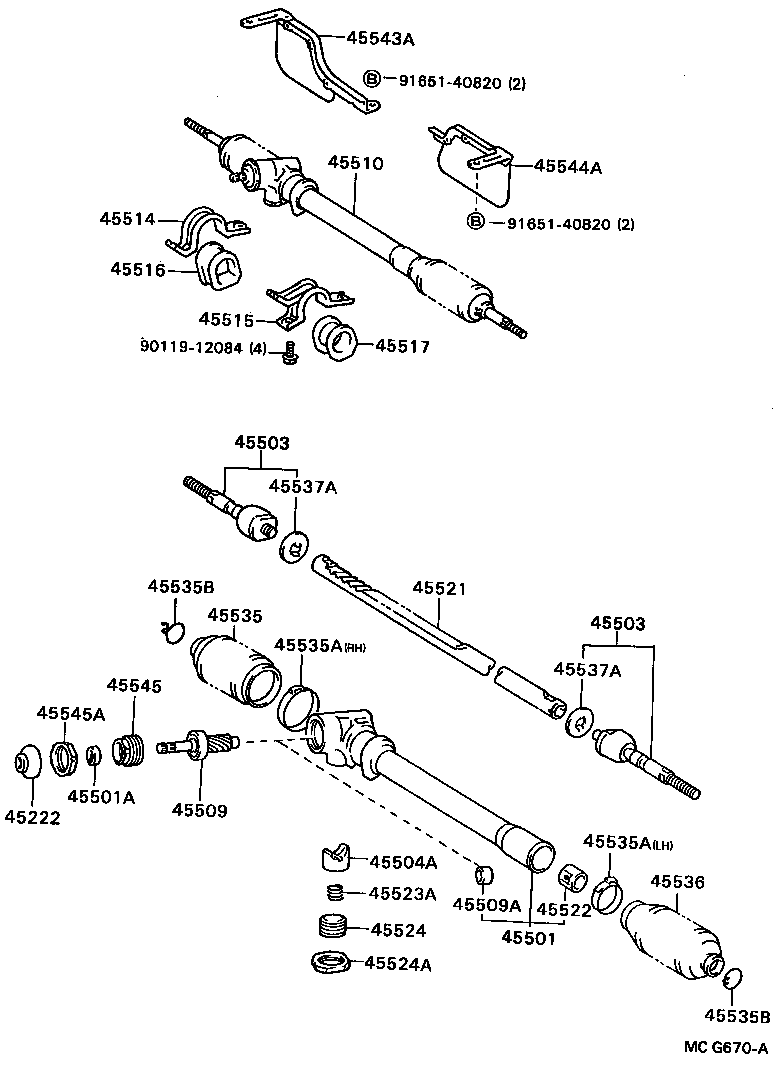

FRONT STEERING GEAR LINK

ILLUST NO. 2 OF 3(8808-9008)CR2#,KR26,YR2# ; (9008- )CR2#,KR27

TOWN MASTERACE V WG | FRONT STEERING GEAR LINK 45222 - COVER, STEERING GEAR DUST 45501 - HOUSING SUB-ASSY, STEERING RACK 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) 45503 - END SUB-ASSY, STEERING RACK 45503 - END SUB-ASSY, STEERING RACK 45504A - GUIDE SUB-ASSY, RACK 45509 - PINION SUB-ASSY, STEERING 45509A - BEARING(FOR STEERING PINION) 45510 - GEAR ASSY, STEERING 45514 - BRACKET, STEERING RACK HOUSING, NO.1 45515 - BRACKET, STEERING RACK HOUSING, NO.2 45516 - GROMMET, STEERING RACK HOUSING, NO.1 45517 - GROMMET, STEERING RACK HOUSING, NO.2 45521 - RACK, STEERING 45522 - BUSH, STEERING RACK 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) 45524 - CAP, STEERING RACK GUIDE SPRING 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) 45535 - BOOT, STEERING RACK, NO.1 45535A - CLAMP(FOR STEERING RACK BOOT) 45535A - CLAMP(FOR STEERING RACK BOOT) 45535B - CLIP(FOR STEERING RACK BOOT) 45535B - CLIP(FOR STEERING RACK BOOT) 45536 - BOOT, STEERING RACK, NO.2 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) 45543A - PROTECTOR, STEERING RACK BOOT, RH 45544A - PROTECTOR, STEERING RACK BOOT, LH 45545 - SCREW, PINION BEARING ADJUSTING 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) ** Std Part ** Std Part ** Std Part
