TOYOTA ARISTO UZS143-BEPZK / POWERTRAIN-CHASSIS / HEIGHT CONTROL AUTO LEVELER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEIGHT CONTROL AUTO LEVELER

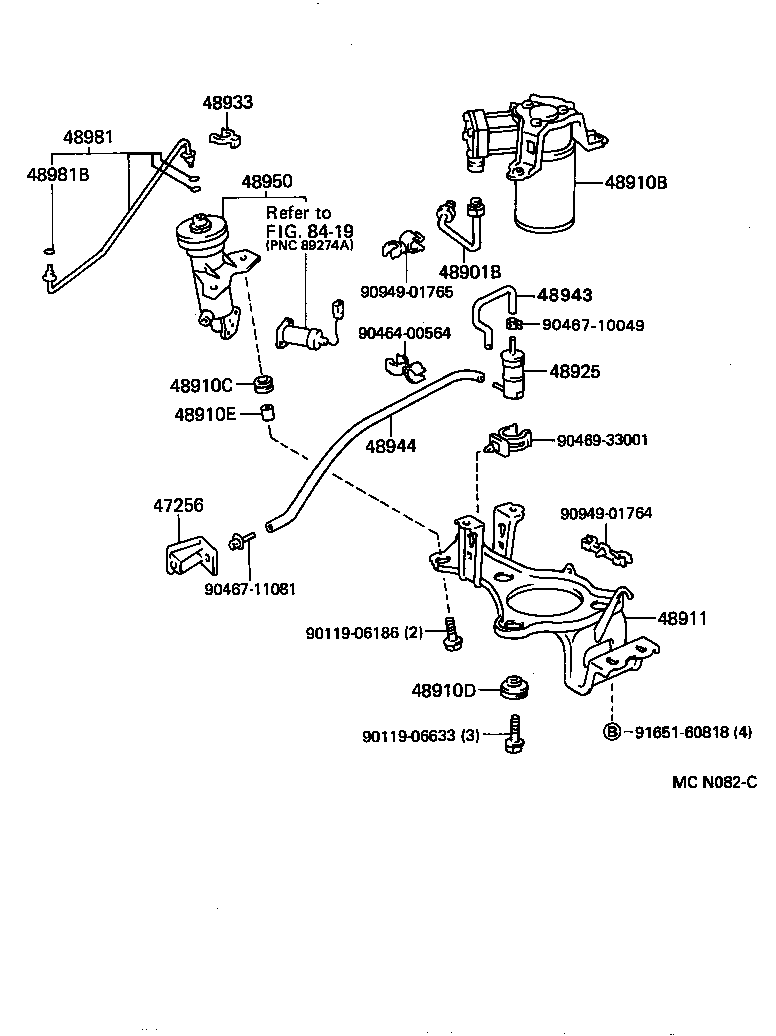

ILLUST NO. 2 OF 2(9210-9508)UZS143

ARISTO | HEIGHT CONTROL AUTO LEVELER 47256 - GROMMET, CAP 48901B - HOSE, FLEXIBLE(FOR HEIGHT CONTROL COMPRESSOR) 48910B - COMPRESSOR ASSY, HEIGHT CONTROL 48910C - BUSH, NO.1(FOR HEIGHT CONTROL COMPRESSOR) 48910D - BUSH, NO.2(FOR HEIGHT CONTROL COMPRESSOR) 48910E - SPACER(FOR HEIGHT CONTROL COMPRESSOR) 48911 - BRACKET, HEIGHT CONTROL COMPRESSOR 48925 - FILTER, HEIGHT CONTROL 48933 - HOLDER, AIR CONNECTOR CLIP 48943 - HOSE, HEIGHT CONTROL, NO.1 48944 - HOSE, HEIGHT CONTROL, NO.2 48950 - DRYER ASSY, HEIGHT CONTROL 48981 - TUBE, HEIGHT CONTROL, NO.1 48981B - RING, O(FOR HEIGHT CONTROL TUBE NO.1) ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
