TOYOTA MARK 2 V WG YX78V-XXHNE / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

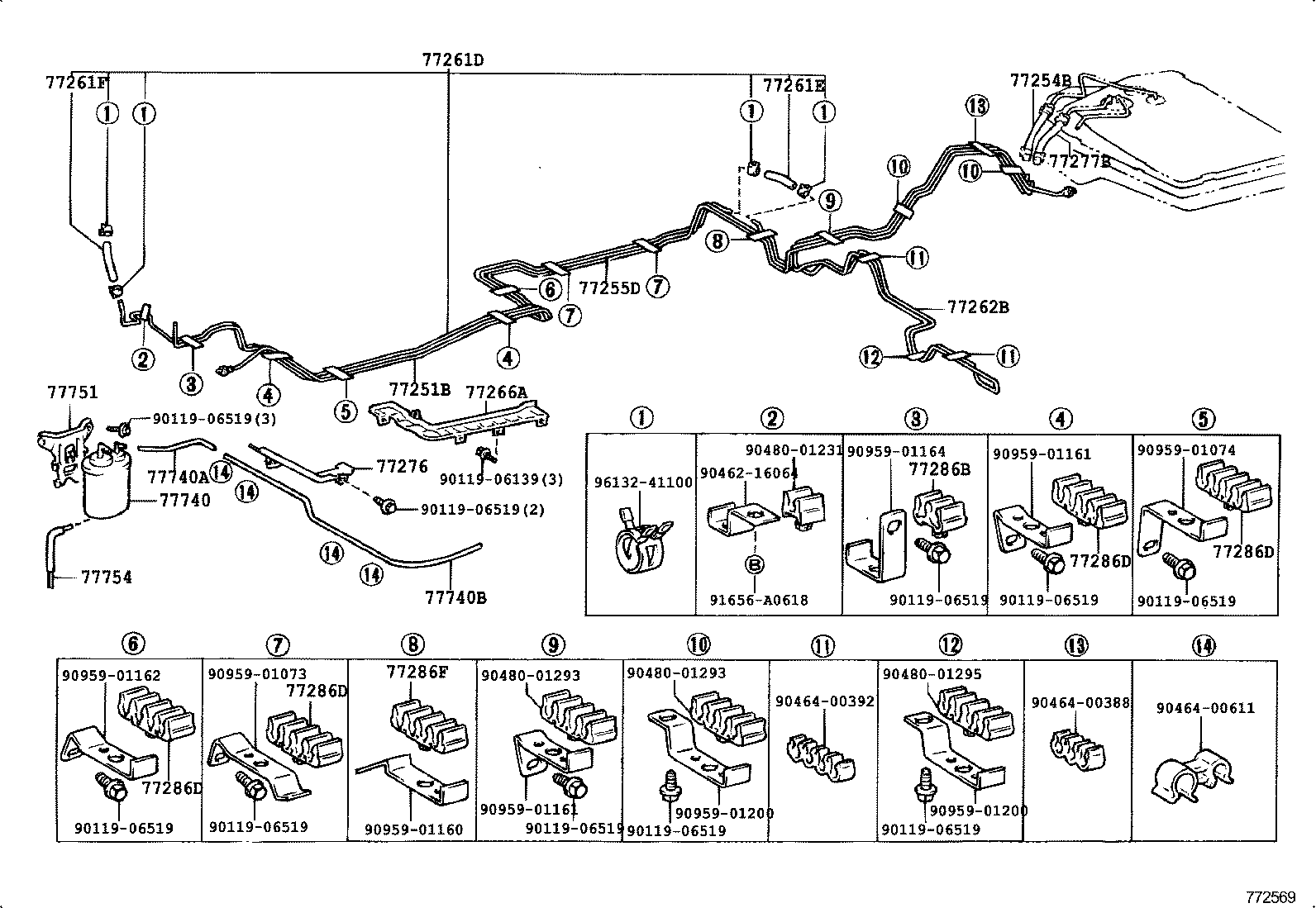

FUEL TANK TUBE

ILLUST NO. 2 OF 2(9302- )YX78

MARK 2 V WG | FUEL TANK TUBE 77251B - TUBE, FUEL MAIN 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) 77255D - TUBE, FUEL RETURN 77261D - TUBE, FUEL TANK TO CANISTER 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 77266A - PROTECTOR, FUEL TUBE, NO.1 77276 - PROTECTOR, FUEL HOSE 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 77286D - CLAMP, FUEL TUBE, NO.2 77286D - CLAMP, FUEL TUBE, NO.2 77286D - CLAMP, FUEL TUBE, NO.2 77286D - CLAMP, FUEL TUBE, NO.2 77286F - CLAMP, FUEL TUBE, NO.2 77740 - CANISTER ASSY, CHARCOAL 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) 77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) 77751 - BRACKET, CHARCOAL CANISTER BASE 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
