TOYOTA WINDOM VCV10-ATPGK / BODY / FRONT DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

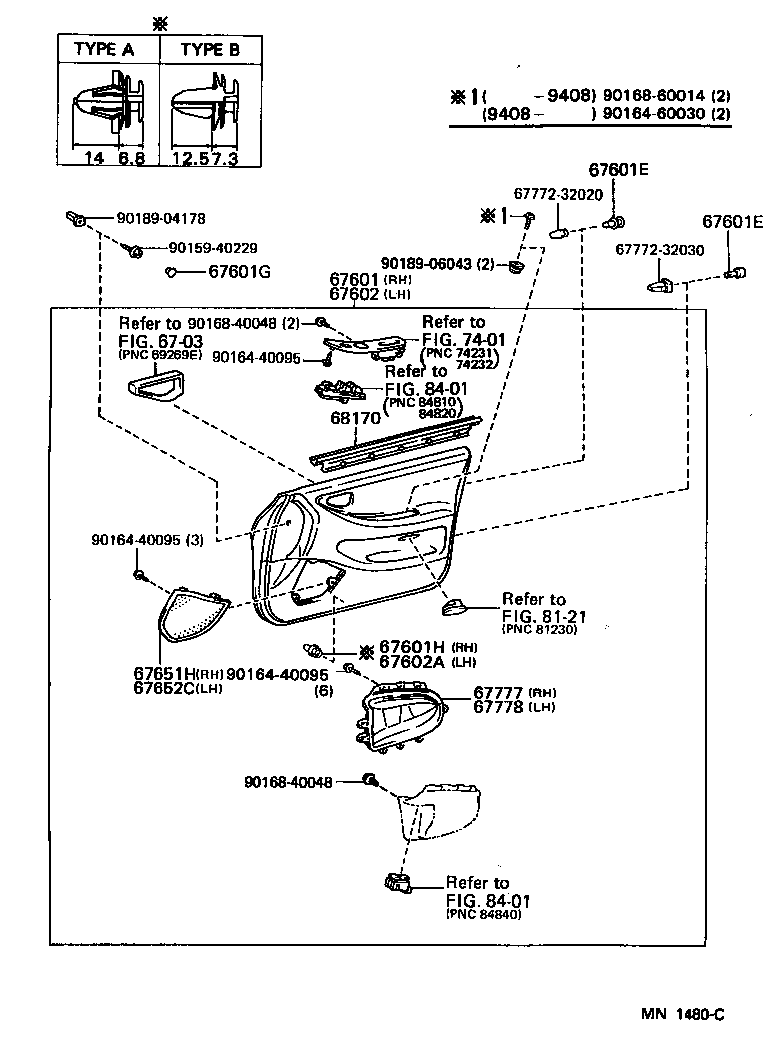

FRONT DOOR PANEL GLASS

ILLUST NO. 2 OF 2(9110- )

WINDOM | FRONT DOOR PANEL GLASS ** Refer Fig 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH 67601E - CAP(FOR FRONT DOOR TRIM BOARD) 67601E - CAP(FOR FRONT DOOR TRIM BOARD) 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) 67601H - RETAINER, DOOR TRIM, RH 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH 67602A - RETAINER, DOOR TRIM, LH 67651H - GRILLE, SPEAKER DOOR, RH 67652C - GRILLE, SPEAKER DOOR, LH ** Std Part ** Std Part 67777 - POCKET, FRONT DOOR TRIM, RH 67778 - POCKET, FRONT DOOR TRIM, LH 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
