TOYOTA CAMRY VISTA CV30-AEMMX / TOOL-ENGINE-FUEL / MANIFOLD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

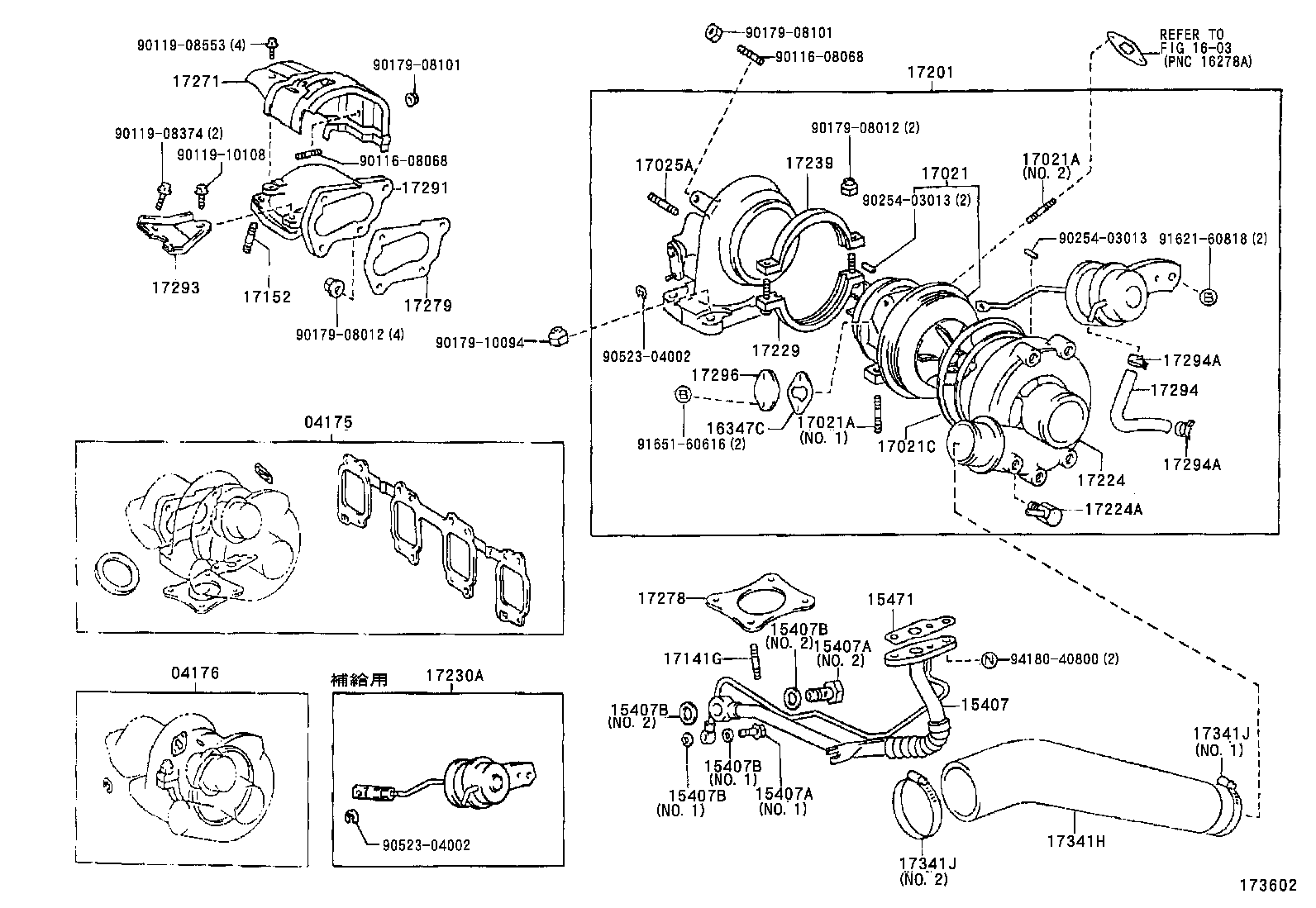

MANIFOLD

(9206- )2CT

 CAMRY VISTA |  MANIFOLD 04175 - GASKET KIT, TURBOCHARGER 04176 - SEAL KIT, TURBOCHARGER 15407 - PIPE SUB-ASSY, TURBO OIL INLET 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) 15407B - GASKET(FOR TURBO OIL INLET PIPE) 15407B - GASKET(FOR TURBO OIL INLET PIPE) 15407B - GASKET(FOR TURBO OIL INLET PIPE) 15407B - GASKET(FOR TURBO OIL INLET PIPE) 15471 - GASKET, TURBO OIL INLET ** Refer Fig 16347C - GASKET(FOR TURBO WATER PIPE) 17021 - HOUSING SUB-ASSY, BEARING 17021A - BOLT, STUD(FOR BEARING HOUSING) 17021A - BOLT, STUD(FOR BEARING HOUSING) 17021C - RING, HOLE SNAP(FOR BEARING HOUSING) 17025A - BOLT, STUD(FOR TURBINE HOUSING) 17141G - BOLT, STUD(FOR TURBOCHARGER) 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) 17201 - TURBOCHARGER SUB-ASSY 17224 - HOUSING, COMPRESSOR 17224A - UNION(FOR COMPRESSOR HOUSING) 17229 - BAND, V 17230A - REPAIR ACTUAOR ASSY, W/BRACKET 17239 - CLAMP, V, NO.2 17271 - INSULATOR, TURBO, NO.1 17278 - GASKET, TURBO TO EXHAUST MANIFOLD 17279 - GASKET, TURBINE OUTLET ELBOW 17291 - ELBOW, TURBINE OUTLET 17293 - STAY, TURBOCHARGER 17294 - HOSE, ACTUATOR 17294A - CLIP(FOR ACTUATOR HOSE) 17294A - CLIP(FOR ACTUATOR HOSE) 17296 - PLATE, BEARING HOUSING, SIDE 17341H - HOSE, AIR 17341J - CLAMP, HOSE 17341J - CLAMP, HOSE  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
