TOYOTA CALDINA ST195G-DWPVF / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

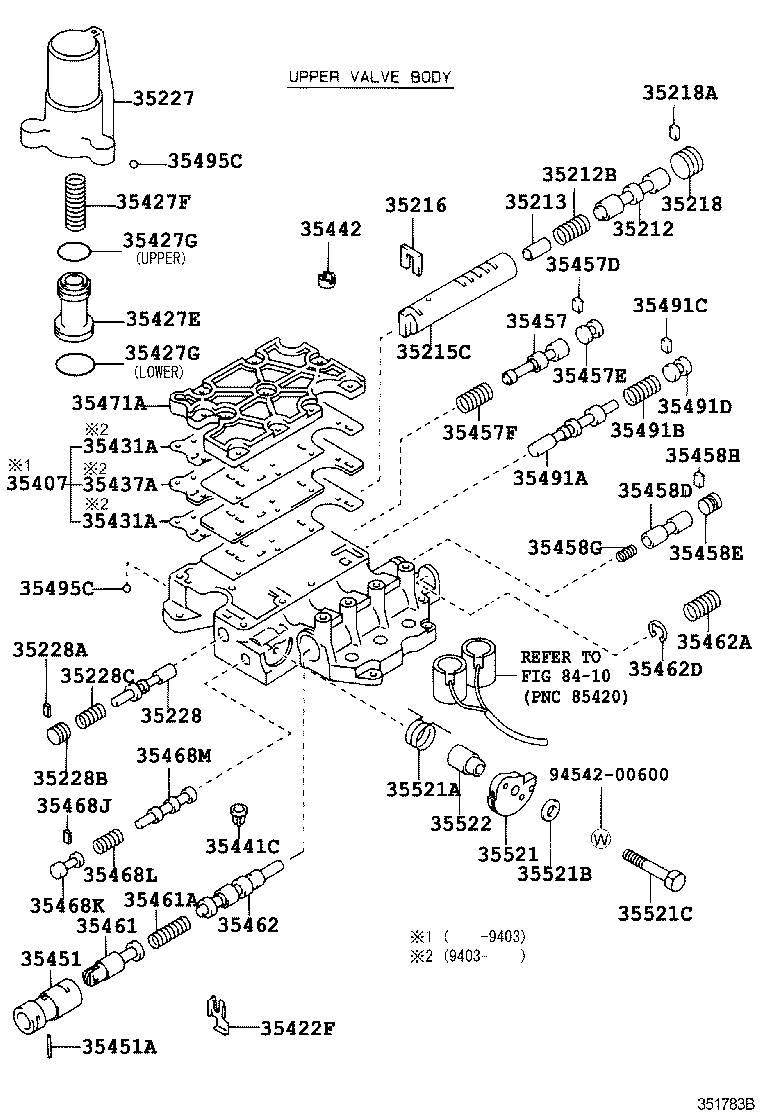

VALVE BODY OIL STRAINER ATM

A540H ILLUST NO. 2 OF 5(9211-9708)ST195..4FC ; (9908- )ST198

CALDINA | VALVE BODY OIL STRAINER ATM 35212 - VALVE, LOCK UP RELAY 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) 35213 - VALVE, LOCK UP RELAY CONTROL 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 35216 - STOPPER, VALVE SLEEVE 35218 - PLUG, LOCK UP RELAY VALVE 35218A - KEY, STRAIGHT (FOR LOCK UP RELAY VALVE PLUG) 35227 - CYLINDER, B-0 ACCUMULATOR 35228 - VALVE, 2ND MODULATOR 35228A - KEY, STRAIGHT (FOR 2ND MODULATOR VALVE) 35228B - PLUG (FOR 2ND MODULATOR VALVE) 35228C - SPRING, COMPRESSION (FOR 2ND MODULATOR VALVE) 35407 - PLATE SUB-ASSY, VALVE BODY COVER 35422F - STOPPER, VALVE VIBRATING 35427E - PISTON, B-0 ACCUMULATOR 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) 35431A - GASKET, UPPER VALVE BODY COVER 35431A - GASKET, UPPER VALVE BODY COVER 35437A - PLATE, UPPER VALVE BODY COVER 35441C - STRAINER, SOLENOID OIL 35442 - STRAINER, THROTTLE MODULATOR OIL 35451 - SLEEVE, THROTTLE VALVE 35451A - PIN, STRAIGHT (FOR THROTTLE VALVE SLEEVE) 35457 - VALVE, THROTTLE MODULATOR 35457D - KEY, STRAIGHT (FOR THROTTLE MODULATOR VALVE) 35457E - PLUG (FOR THROTTLE MODULATOR VALVE) 35457F - SPRING, COMPRESSION (FOR THROTTLE MODULATOR VALVE) 35458D - VALVE, CUT BACK 35458E - PLUG (FOR CUT BACK VALVE) 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) 35458H - KEY, STRAIGHT (FOR CUT BACK VALVE) 35461 - PLUG, DOWN SHIFT 35461A - SPRING, COMPRESSION (FOR DOWN SHIFT PLUG) 35462 - VALVE, THROTTLE 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) 35462D - RING, E (FOR THROTTLE VALVE) 35468J - KEY, STRAIGHT (FOR B-1 ORIFICE CONTROL VALVE) 35468K - PLUG (FOR B-1 ORIFICE CONTROL VALVE) 35468L - SPRING, COMPRESSION (FOR B-1 ORIFICE CONTROL VALVE) 35468M - VALVE, B-1 ORIFICE CONTROL 35471A - COVER, UPPER VALVE BODY 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1) 35491C - KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1) 35491D - PLUG (FOR ACCUMULATOR CONTROL VALVE NO.1) 35495C - BALL, CHECK, NO.1 35495C - BALL, CHECK, NO.1 35521 - CAM, THROTTLE VALVE 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) 35521B - WASHER (FOR THROTTLE VALVE CAM SET) 35521C - BOLT (FOR THROTTLE VALVE CAM SET) 35522 - PIN, THROTTLE VALVE CAM ** Refer Fig ** Std Part
