TOYOTA CROWN CROWN MAJESTA JZS153-AEPJF / POWERTRAIN-CHASSIS / BRAKE TUBE CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE TUBE CLAMP

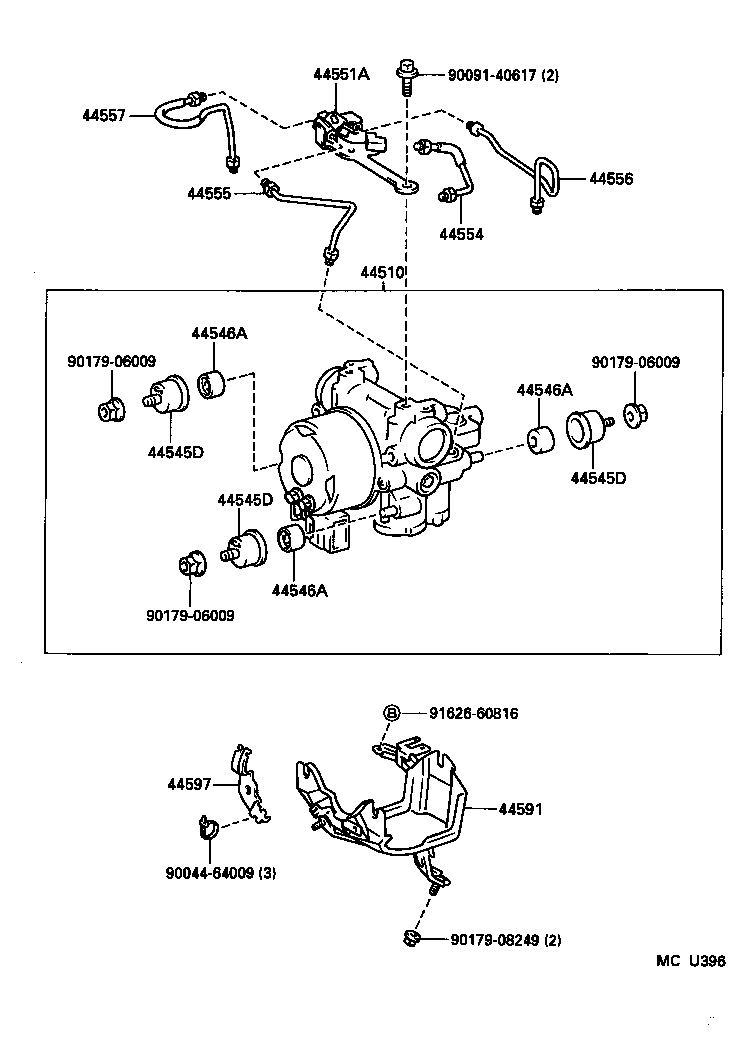

ILLUST NO. 2 OF 2(9512-9609)JZS153

CROWN CROWN MAJESTA | BRAKE TUBE CLAMP 44510 - ACTUATOR ASSY, BRAKE 44545D - HOLDER, BRAKE ACTUATOR BOLT 44545D - HOLDER, BRAKE ACTUATOR BOLT 44545D - HOLDER, BRAKE ACTUATOR BOLT 44546A - CUSHION, BRAKE ACTUATOR BOLT 44546A - CUSHION, BRAKE ACTUATOR BOLT 44546A - CUSHION, BRAKE ACTUATOR BOLT 44551A - WAY, NO.1(FOR BRAKE ACTUATOR) 44554 - TUBE, BRAKE ACTUATOR, NO.4 44555 - TUBE, BRAKE ACTUATOR, NO.5 44556 - TUBE, BRAKE ACTUATOR, NO.6 44557 - TUBE, BRAKE ACTUATOR, NO.7 44591 - BRACKET, BRAKE ACTUATOR, NO.1 44597 - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
