TOYOTA DYNA TOYOACE BU66H-MDPDT4 / POWERTRAIN-CHASSIS / GEAR SHIFT FORK LEVER SHAFT MTM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

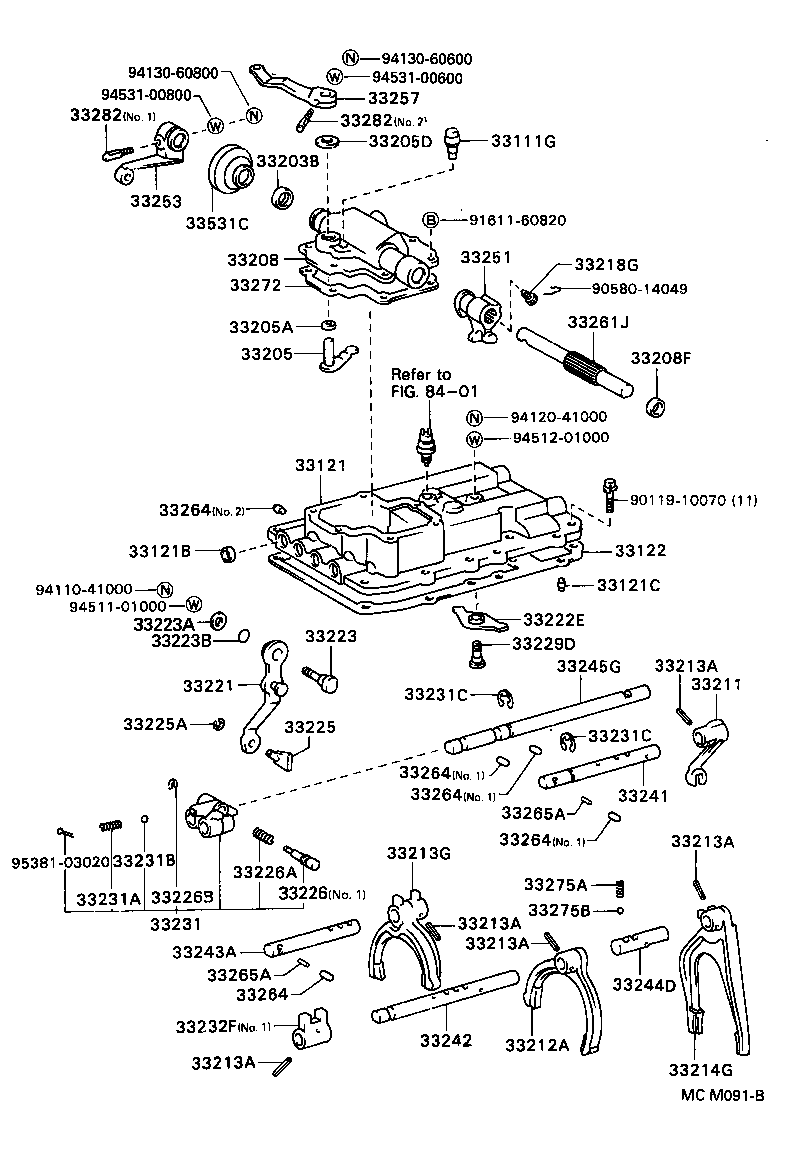

GEAR SHIFT FORK LEVER SHAFT MTM

(8808- )BU66..IV4

DYNA TOYOACE | GEAR SHIFT FORK LEVER SHAFT MTM 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) 33121 - COVER, MANUAL TRANSMISSION CASE 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) 33121C - PIN(FOR TRANSMISSION CASE COVER) 33122 - GASKET, MANUAL TRANSMISSION CASE COVER 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) 33205 - SHAFT SUB-ASSY, SELECT LEVER 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) 33205D - WASHER(FOR OUTER LEVER OIL SETTING) 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT 33208F - PLUG, TIGHT(FOR SHIFT LEVER SHAFT HOUSING) 33211 - FORK, REVERSE SHIFT 33212A - FORK, GEAR SHIFT, NO.1 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) 33213G - FORK, GEAR SHIFT, NO.2 33214G - FORK, GEAR SHIFT, NO.3 33218G - BOLT, SHIFT FORK LOCK 33221 - ARM, REVERSE SHIFT 33222E - ARM, 5TH SHIFT 33223 - PIVOT, SHIFT ARM 33223A - WASHER(FOR SHIFT ARM PIVOT) 33223B - RING, O(FOR SHIFT ARM PIVOT) 33225 - SHOE, SHIFT ARM 33225A - RING, SHAFT SNAP(FOR SHIFT ARM SHOE) 33226 - PLUNGER, REVERSE SHIFT RETURN 33226A - SPRING, COMPRESSION(FOR REVERSE SHIFT RETURN PLUNGER) 33226B - WASHER, TYPE C(FOR REVERSE SHIFT RETURN PLUNGER) 33229D - PIVOT, 5TH SHIFT ARM 33231 - HEAD, REVERSE SHIFT 33231A - SPRING, REVERSE SHIFT RESTRICT 33231B - BALL, REVERSE SHIFT RESTRICT 33231C - RING(FOR REVERSE SHIFT HEAD) 33231C - RING(FOR REVERSE SHIFT HEAD) 33232F - HEAD, GEAR SHIFT, NO.1 33241 - SHAFT, REVERSE SHIFT FORK 33242 - SHAFT, GEAR SHIFT FORK, NO.1 33243A - SHAFT, GEAR SHIFT FORK, NO.2 33244D - SHAFT, GEAR SHIFT FORK, NO.3 33245G - SHAFT, GEAR SHIFT FORK, NO.4 33251 - LEVER, SHIFT & SELECT 33253 - LEVER, SHIFT OUTER, NO.1 33257 - LEVER, SELECT OUTER 33261J - SHAFT, SHIFT LEVER 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 33265A - ROLLER, NO.2 (FOR INTER LOCK) 33265A - ROLLER, NO.2 (FOR INTER LOCK) 33272 - GASKET, SHIFT LEVER SHAFT HOUSING 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) 33275B - BALL, SHAFT DETENT 33282 - PIN, LEVER LOCK, NO.2 33282 - PIN, LEVER LOCK, NO.2 33531C - BOOT, DUST (FOR 5TH SHIFT ARM SHAFT) ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
