TOYOTA DYNA TOYOACE BU68DH-MDKTU3 / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

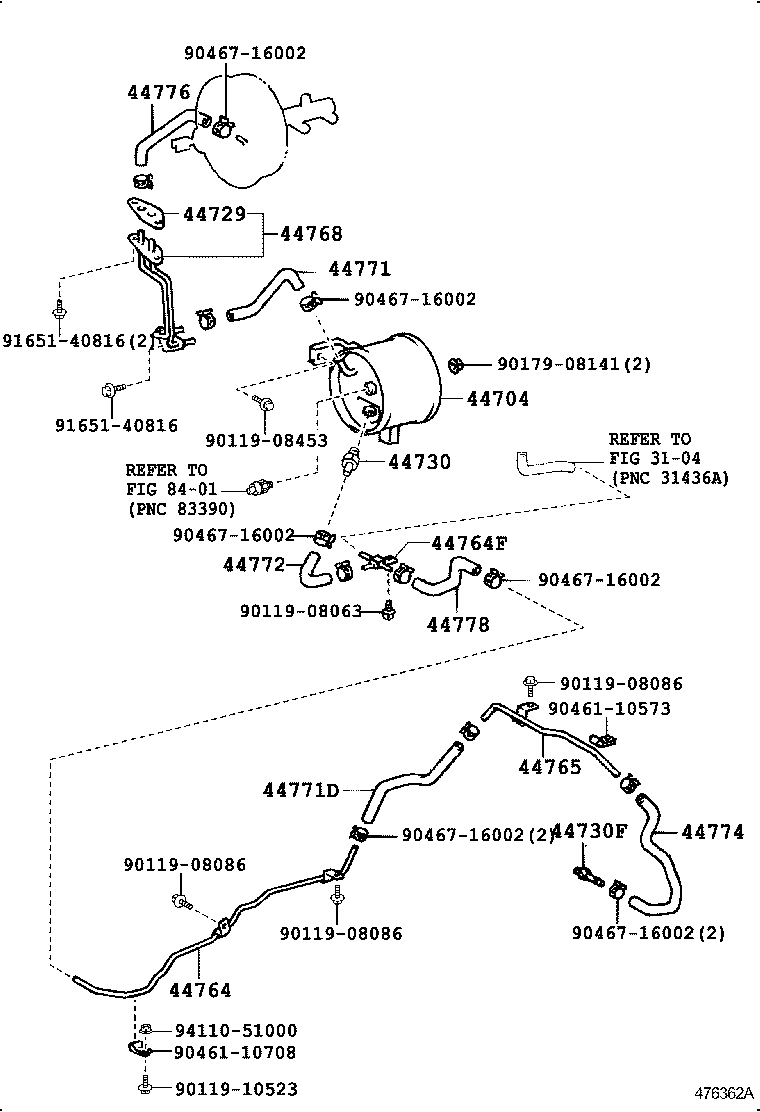

BRAKE BOOSTER VACUUM TUBE

ILLUST NO. 2 OF 2(8910- )LPG

DYNA TOYOACE | BRAKE BOOSTER VACUUM TUBE ** Refer Fig 44704 - RESERVOIR SUB-ASSY, VACUUM 44729 - GASKET, VACUUM TUBE 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) 44764 - TUBE, BOOSTER VACUUM 44764F - WAY(FOR BOOSTER VACUUM TUBE) 44765 - TUBE, CONNECTOR TO BRAKE BOOSTER, NO.2 44768 - TUBE, BOOSTER VACUUM 44771 - HOSE, VACUUM TUBE CONNECTOR 44771D - HOSE, VACUUM TUBE CONNECTOR 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE 44774 - HOSE, UNION TO CONNECTOR TUBE 44776 - HOSE, BRAKE BOOSTER 44778 - HOSE, CONNECTOR TO CHECK VALVE ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
