TOYOTA GRANVIA GRAND HIACE RCH11W-GFSQK / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

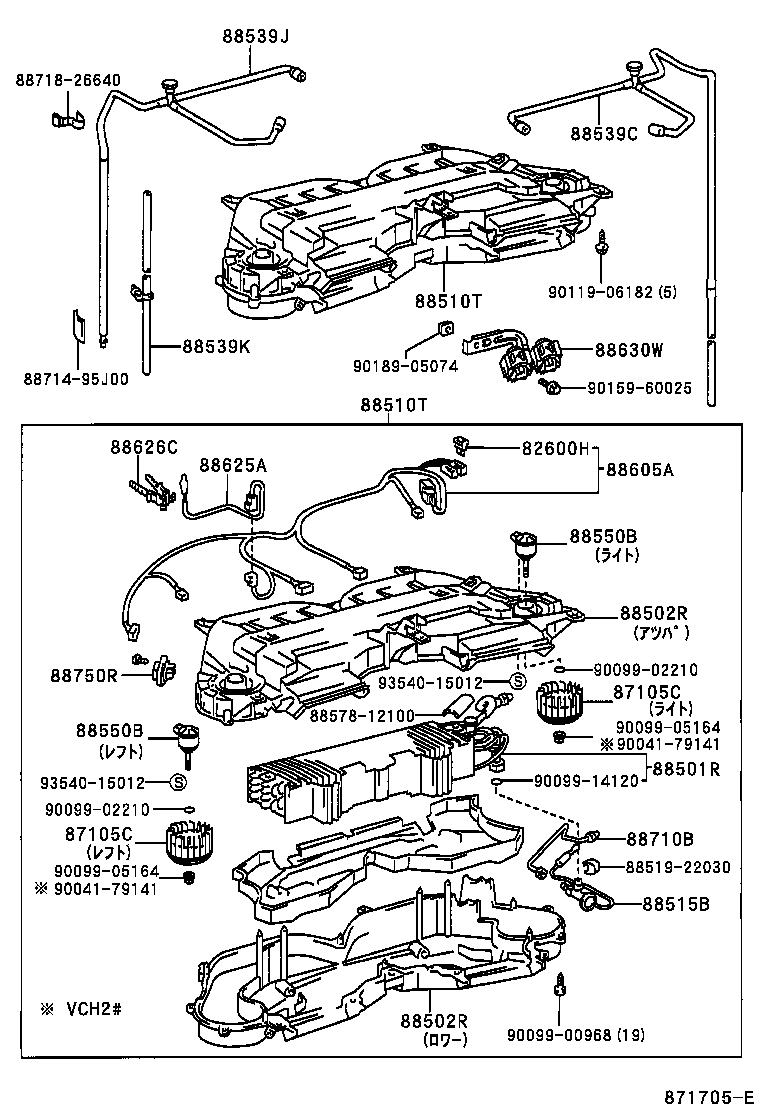

HEATING AIR CONDITIONING COOLER UNIT

ﾘﾔ ｵ-ﾄｴｱｺﾝ ILLUST NO. 2 OF 5(9508-9608)Q ; (9608- )KCH10,16,RCH11,VCH1#,2

GRANVIA GRAND HIACE | HEATING AIR CONDITIONING COOLER UNIT 82600H - FUSE, FUSE BLOCK 87105C - FAN SUB-ASSY, BLOWER, REAR 87105C - FAN SUB-ASSY, BLOWER, REAR 88501R - EVAPORATOR SUB-ASSY (REAR) 88502R - CASE SUB-ASSY, COOLING UNIT 88502R - CASE SUB-ASSY, COOLING UNIT 88510T - UNIT ASSY, COOLING (REAR) 88510T - UNIT ASSY, COOLING (REAR) 88515B - VALVE, REAR COOLING UNIT EXPANSION ** Std Part 88539C - HOSE, COOLER UNIT DRAIN, NO.2 88539J - HOSE, DRAIN COOLER 88539K - HOSE, DRAIN COOLER 88550B - MOTOR ASSY, BLOWER 88550B - MOTOR ASSY, BLOWER ** Std Part 88605A - HARNESS SUB-ASSY, COOLER WIRING 88625A - THERMISTOR, COOLER NO.2 88626C - HOLDER, THERMISTOR, REAR 88630W - RELAY ASSY 88710B - TUBE ASSY, AIRCONDITIONER ** Std Part ** Std Part 88750R - TRANSISTOR ASSY, BLOWER RESISTOR(REAR) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
