TOYOTA HIACE TRUCK LY101-TLPBS3 / BODY / FRAME

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRAME

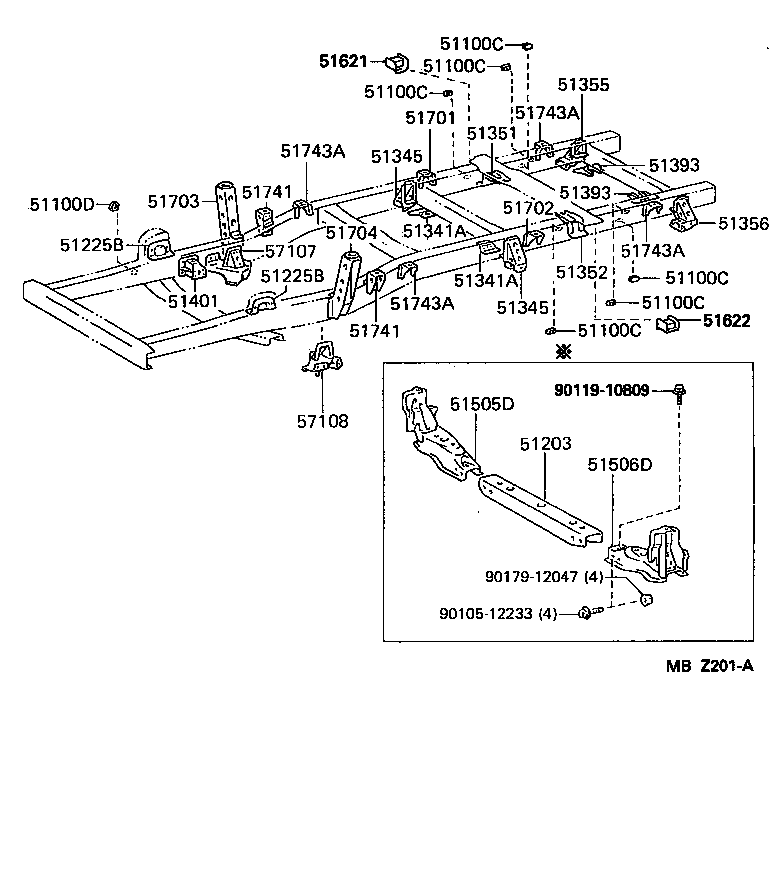

ILLUST NO. 2 OF 2(9505- )LY101,111..T2

HIACE TRUCK | FRAME 51100C - PLUG, HOLE(FOR FRAME) 51100C - PLUG, HOLE(FOR FRAME) 51100C - PLUG, HOLE(FOR FRAME) 51100C - PLUG, HOLE(FOR FRAME) 51100C - PLUG, HOLE(FOR FRAME) 51100C - PLUG, HOLE(FOR FRAME) 51100D - PLUG, HOLE(FOR FRAME) 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 51225B - BRACKET, FRONT SUSPENSION MEMBER, RH 51225B - BRACKET, FRONT SUSPENSION MEMBER, RH 51341A - GUSSET, CROSSMEMBER, NO.4 LOWER 51341A - GUSSET, CROSSMEMBER, NO.4 LOWER 51345 - BRACKET, REAR SPRING, FRONT 51345 - BRACKET, REAR SPRING, FRONT 51351 - GUSSET, CROSSMEMBER, NO.5 RH 51352 - GUSSET, CROSSMEMBER, NO.5 LH 51355 - BRACKET, REAR SPRING, REAR RH 51356 - BRACKET, REAR SPRING, REAR LH 51393 - GUSSET, REAR FRAME CROSSMEMBER, LOWER 51393 - GUSSET, REAR FRAME CROSSMEMBER, LOWER 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH 51505D - SUPPORT ASSY, FRONT SUSPENSION RH 51506D - SUPPORT ASSY, FRONT SUSPENSION, LH 51621 - BRACKET, REAR BOUND STOPPER, RH 51622 - BRACKET, REAR BOUND STOPPER, LH 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH 51741 - BRACKET, REAR BODY MOUNTING, NO.1 51741 - BRACKET, REAR BODY MOUNTING, NO.1 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH 57107 - BRACKET SUB-ASSY, STRUT BAR, RH 57108 - BRACKET SUB-ASSY, STRUT BAR, LH ** Std Part ** Std Part ** Std Part
