TOYOTA HIACE TRUCK LY161-TLMBS3 / BODY / FRAME

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

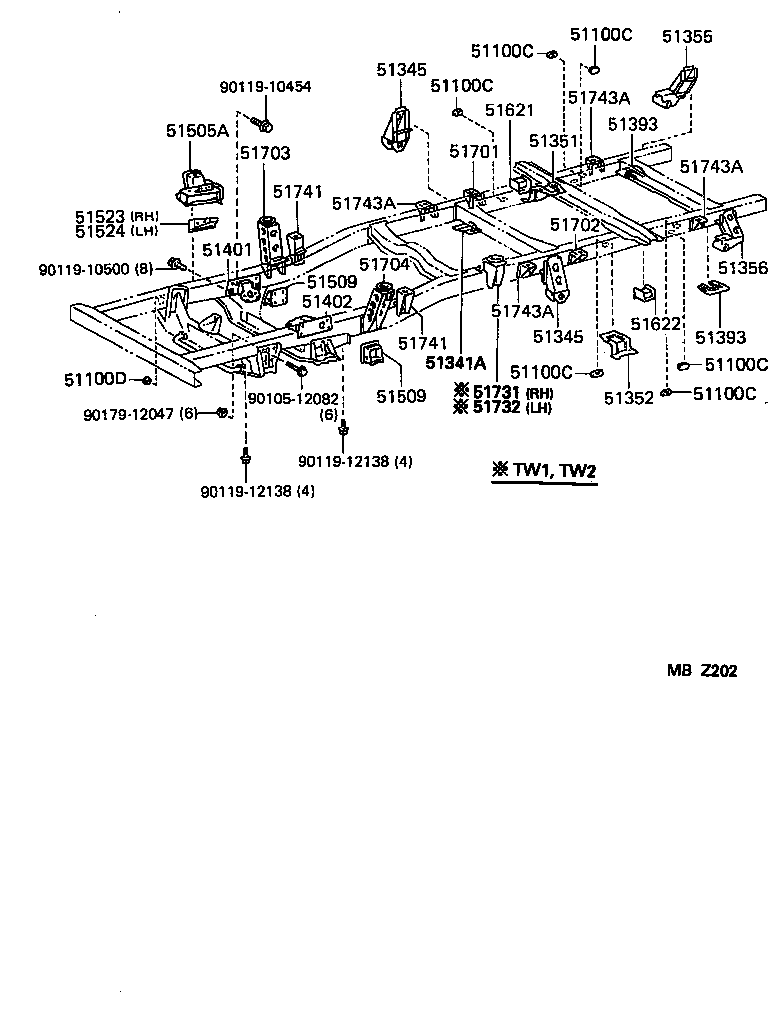

FRAME

ILLUST NO. 2 OF 2(9505- )LY151,161

HIACE TRUCK | FRAME 51100C - PLUG, HOLE(FOR FRAME) 51100C - PLUG, HOLE(FOR FRAME) 51100C - PLUG, HOLE(FOR FRAME) 51100C - PLUG, HOLE(FOR FRAME) 51100C - PLUG, HOLE(FOR FRAME) 51100C - PLUG, HOLE(FOR FRAME) 51100D - PLUG, HOLE(FOR FRAME) 51341A - GUSSET, CROSSMEMBER, NO.4 LOWER 51345 - BRACKET, REAR SPRING, FRONT 51345 - BRACKET, REAR SPRING, FRONT 51351 - GUSSET, CROSSMEMBER, NO.5 RH 51352 - GUSSET, CROSSMEMBER, NO.5 LH 51355 - BRACKET, REAR SPRING, REAR RH 51356 - BRACKET, REAR SPRING, REAR LH 51393 - GUSSET, REAR FRAME CROSSMEMBER, LOWER 51393 - GUSSET, REAR FRAME CROSSMEMBER, LOWER 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH 51505A - SUPPORT SUB-ASSY, UPPER CONTROL ARM 51509 - SUPPORT SUB-ASSY, STABILIZER 51509 - SUPPORT SUB-ASSY, STABILIZER 51523 - REINFORCEMENT, UPPER CONTROL ARM SUPPORT, RH 51524 - REINFORCEMENT, UPPER CONTROL ARM SUPPORT, LH 51621 - BRACKET, REAR BOUND STOPPER, RH 51622 - BRACKET, REAR BOUND STOPPER, LH 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH 51731 - BRACKET, CAB REAR MOUNTING, RH 51732 - BRACKET, CAB REAR MOUNTING, LH 51741 - BRACKET, REAR BODY MOUNTING, NO.1 51741 - BRACKET, REAR BODY MOUNTING, NO.1 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
