TOYOTA SPRINTER CARIB AE95G-CWMNH / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

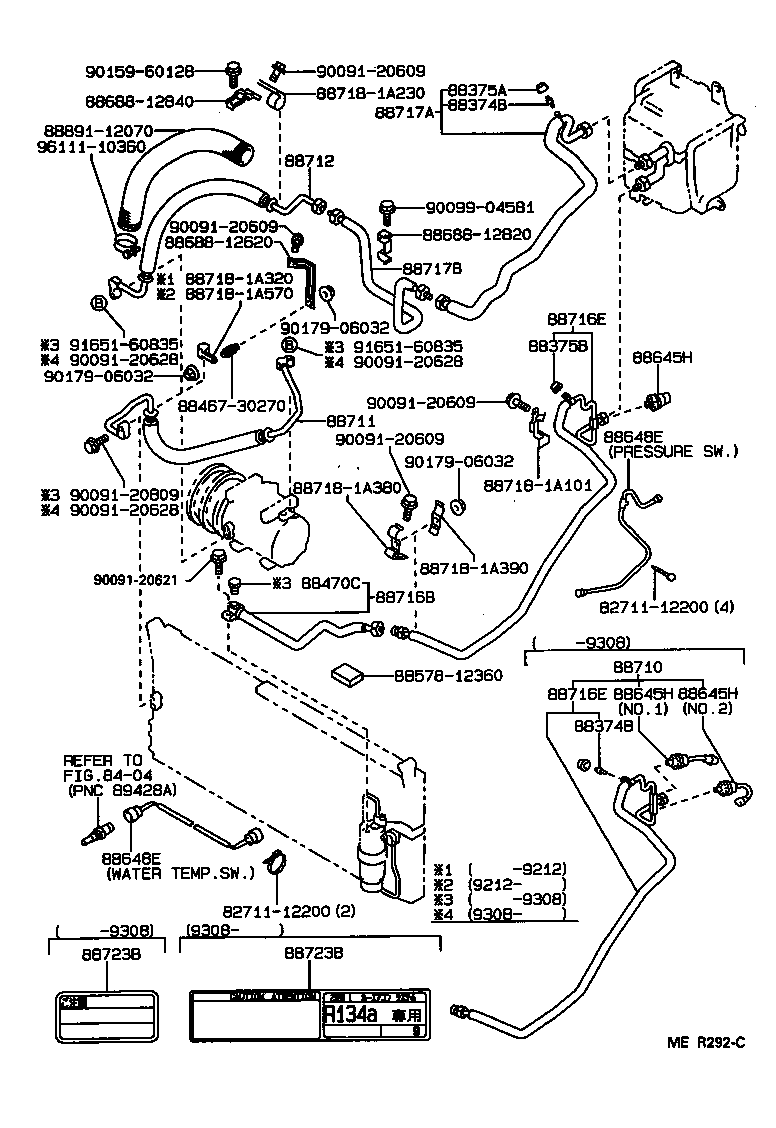

HEATING AIR CONDITIONING COOLER PIPING

(9009- )

SPRINTER CARIB | HEATING AIR CONDITIONING COOLER PIPING ** Std Part ** Std Part ** Std Part ** Refer Fig 88374B - VALVE, SERVICE, NO.1 88374B - VALVE, SERVICE, NO.1 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) 88375B - CAP, SERVICE VALVE, NO.1 ** Std Part 88470C - BOLT, FUSE ** Std Part 88645H - SWITCH, PRESSURE NO.1 88645H - SWITCH, PRESSURE NO.1 88645H - SWITCH, PRESSURE NO.1 88648E - WIRING, COOLER 88648E - WIRING, COOLER ** Std Part ** Std Part ** Std Part 88710 - TUBE ASSY, AIRCONDITIONER 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88716E - PIPE, COOLER REFRIGERANT LIQUID, E 88716E - PIPE, COOLER REFRIGERANT LIQUID, E 88717A - PIPE, COOLER REFRIGERANT SUCTION, A 88717B - PIPE, COOLER REFRIGERANT SUCTION, B ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88723B - LABEL, COOLER SERVICE CAUTION 88723B - LABEL, COOLER SERVICE CAUTION ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
