TOYOTA CALDINA ST191G-DWPEK / BODY / ROOF PANEL BACK WINDOW GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

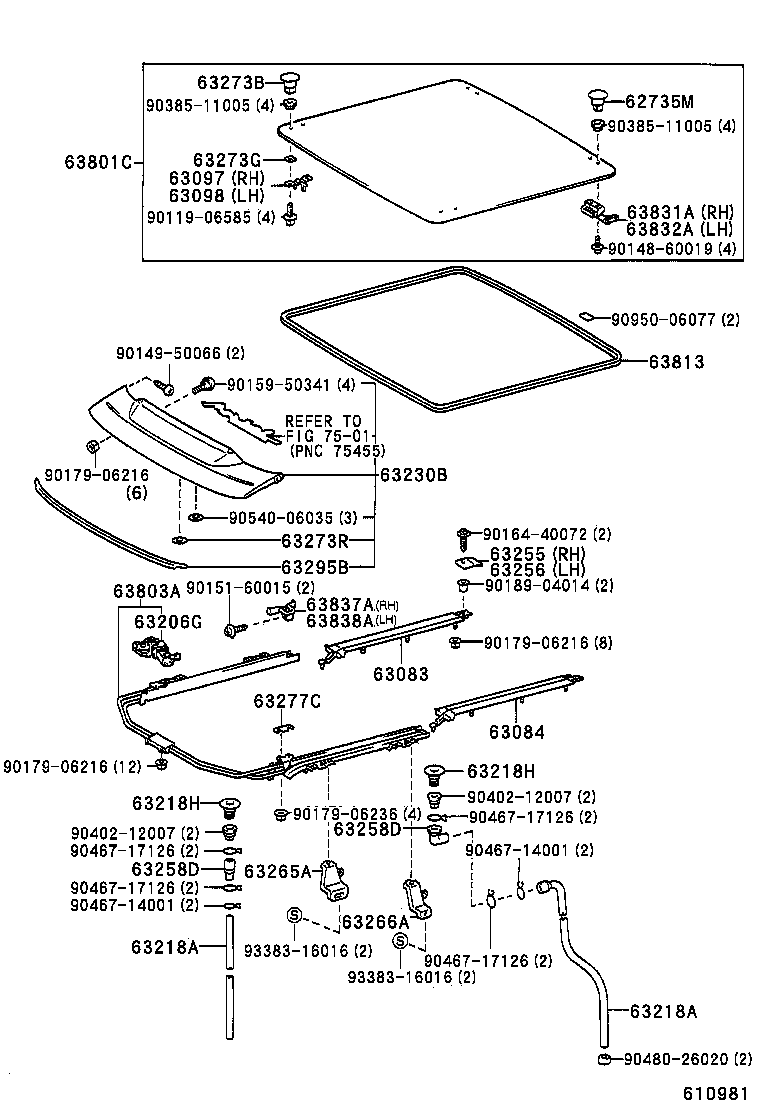

ROOF PANEL BACK WINDOW GLASS

ｴｱﾘｱﾙ ILLUST NO. 2 OF 3(9601- )ST191,195

CALDINA | ROOF PANEL BACK WINDOW GLASS 62735M - RETAINER, QUARTER WINDOW HINGE 63083 - RAIL SUB-ASSY, REAR SLIDE ROOF, REAR RH 63084 - RAIL SUB-ASSY, REAR SLIDE ROOF, REAR LH 63097 - RETAINER SUB-ASSY, REAR SLIDE ROOF SHOE, FRONT RH 63098 - RETAINER SUB-ASSY, REAR SLIDE ROOF SHOE, FRONT LH 63206G - GEAR SUB-ASSY, SLIDING ROOF DRIVE 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) 63218H - HOSE, SLIDING ROOF DRAIN 63218H - HOSE, SLIDING ROOF DRAIN 63230B - PANEL ASSY, ROOF WIND DEFLECTOR 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH 63258D - JOINT, SLIDE ROOF DRAIN HOSE 63258D - JOINT, SLIDE ROOF DRAIN HOSE 63265A - LEVER, REMOVABLE ROOF LOCK, RH 63266A - LEVER, REMOVABLE ROOF LOCK, LH 63273B - RETAINER, ROOF WINDOW HINGE 63273G - PACKING, SLIDE ROOF 63273R - PACKING, ROOF WINDOW DEFRECTOR 63277C - SHIM, SLIDING ROOF PANEL 63295B - PAD, ROOF WIND DEFLECTOR PANEL 63801C - GLASS SUB-ASSY, REAR SLIDE ROOF 63803A - CABLE SUB-ASSY, REAR SLIDE ROOF DRIVE 63813 - WEATHERSTRIP, REAR SLIDE ROOF 63831A - SHOE, REAR SLIDE ROOF, RH 63832A - SHOE, REAR SLIDE ROOF, LH 63837A - GARNISH, REAR SLIDE ROOF, RH 63838A - GARNISH, REAR SLIDE ROOF, LH ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
