TOYOTA COASTER BB55-ZRPNU / POWERTRAIN-CHASSIS / FRONT STEERING GEAR LINK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

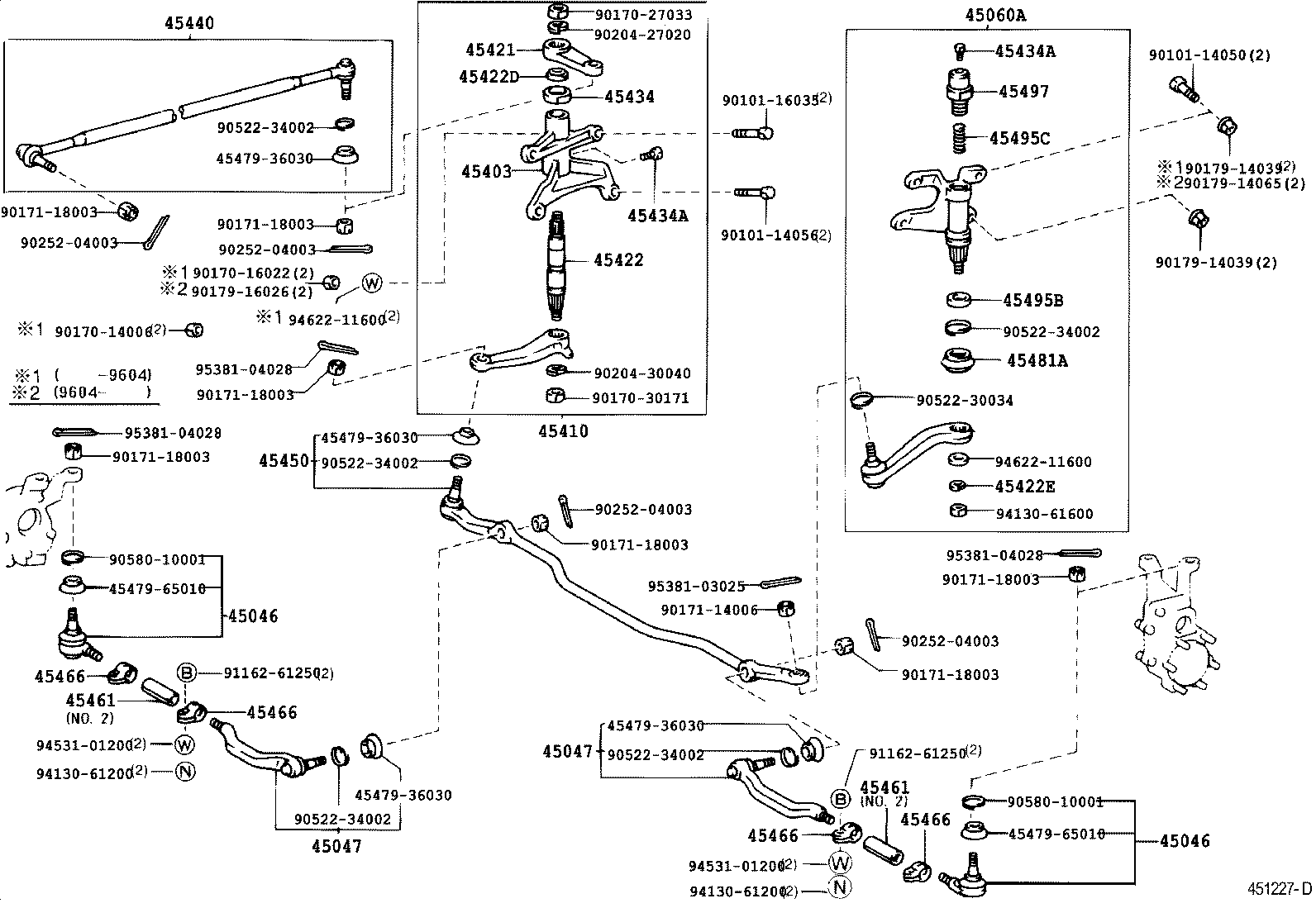

FRONT STEERING GEAR LINK

ﾌﾛﾝﾄ ILLUST NO. 3 OF 4(9512-9701)BB55

COASTER | FRONT STEERING GEAR LINK 45046 - END SUB-ASSY, TIE ROD, RH 45046 - END SUB-ASSY, TIE ROD, RH 45047 - END SUB-ASSY, TIE ROD, LH 45047 - END SUB-ASSY, TIE ROD, LH 45060A - BRACKET ASSY, IDLER ARM W/ARM 45403 - BRACKET SUB-ASSY, CENTER ARM 45410 - BRACKET ASSY, CENTER ARM 45421 - ARM, STEERING CENTER 45422 - SHAFT, CENTER ARM 45422D - SEAL(FOR CENTER ARM SHAFT) 45422E - WASHER(FOR CENTER ARM SHAFT) 45434 - CAP, CENTER ARM BRACKET 45434A - PLUG(FOR CENTER ARM BRACKET CAP) 45434A - PLUG(FOR CENTER ARM BRACKET CAP) 45440 - LINK ASSY, STEERING DRAG 45450 - ROD ASSY, STEERING RELAY 45461 - ROD, STEERING TIE 45461 - ROD, STEERING TIE 45466 - CLAMP, TIE ROD END 45466 - CLAMP, TIE ROD END 45466 - CLAMP, TIE ROD END 45466 - CLAMP, TIE ROD END ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 45481A - SEAL, STEERING IDLER ARM BUSHING DUST(FOR REAR STEERING) 45495B - SEAL(FOR IDLER ARM SHAFT) 45495C - SPRING, COMPRESSION(FOR IDLER ARM SHAFT) 45497 - CAP, IDLER ARM BRACKET ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
