TOYOTA LITE TOWNACE V WG CR38G-MBZX / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

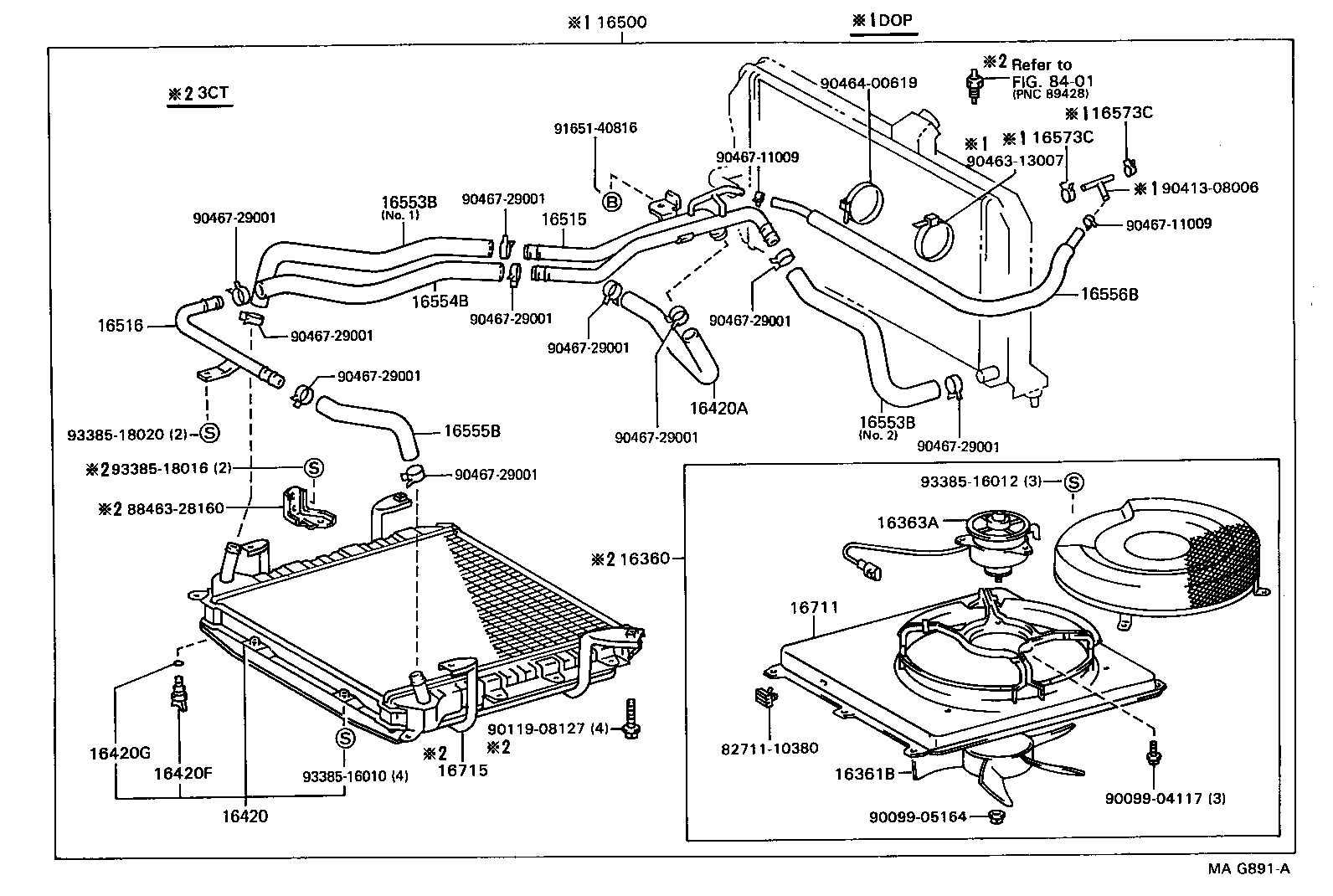

RADIATOR WATER OUTLET

(9201-9309)2CT..CR30,37..ATM ; (9309- )3CT..C

LITE TOWNACE V WG | RADIATOR WATER OUTLET 16360 - BLOWER ASSY, W/SHROUD 16361B - FAN, NO.2 16363A - MOTOR, COOLING FAN, NO.2 16420 - RADIATOR ASSY, SUB 16420A - HOSE, SUB RADIATOR, INLET 16420F - PLUG, DRAIN COCK(FOR SUB RADIATOR) 16420G - PACKING(FOR SUB RADIATOR) 16500 - RADIATOR ASSY, SUB W/FAN 16515 - PIPE, SUB RADIATOR, NO.1 16516 - PIPE, SUB RADIATOR, NO.2 16553B - HOSE, SUB RADIATOR, NO.3 16553B - HOSE, SUB RADIATOR, NO.3 16554B - HOSE, SUB RADIATOR, NO.4 16555B - HOSE, SUB RADIATOR, NO.5 16556B - HOSE, SUB-RADIATOR, NO.6 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 16711 - SHROUD, FAN 16715 - BRACKET, FAN SHROUD ** Std Part ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
