TOYOTA SOARER JZZ30-ACMVZ / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

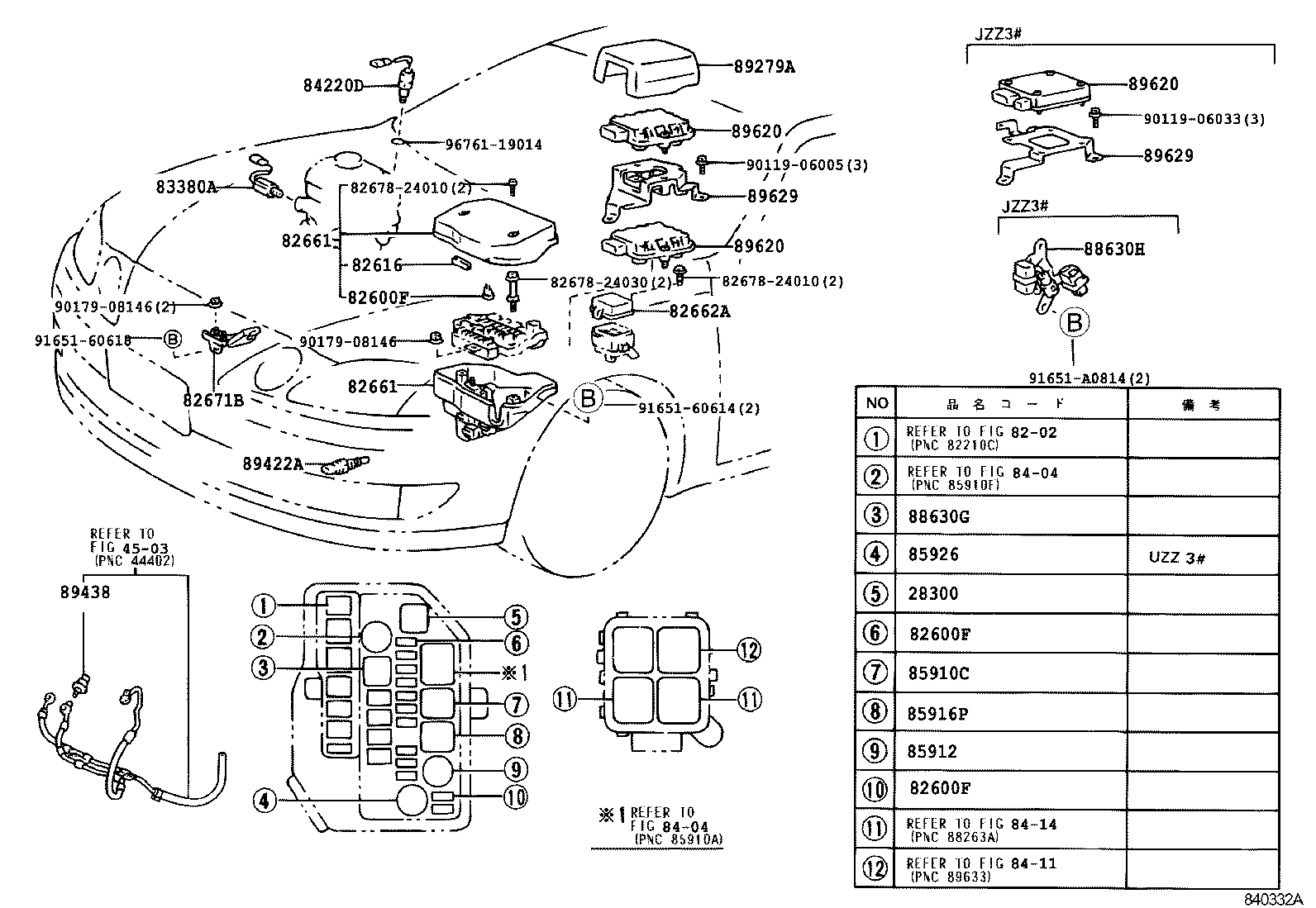

ｴﾝｼﾞﾝﾙ-ﾑ ILLUST NO. 2 OF 9(9105- )

SOARER | SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER ** Refer Fig ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82616 - PULLER, FUSE 82661 - COVER, RELAY BLOCK, NO.1 82661 - COVER, RELAY BLOCK, NO.1 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82671B - BLOCK, JUNCTION ** Std Part ** Std Part ** Std Part 83380A - SWITCH ASSY, PRESSURE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 84220D - SWITCH ASSY, BRAKE DIFFERENTIAL VALVE 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85912 - RELAY, DEFOGGER 85916P - RELAY, HEADLAMP 85926 - RELAY, HEADLAMP DIMMER 88630G - RELAY ASSY, COOLER 88630H - RELAY ASSY, COOLER 89279A - COVER, COMPUTER 89422A - SENSOR, WATER TEMPERATURE 89438 - SWITCH, POWER STEERING OIL PRESSURE 89620 - IGNITER ASSY 89620 - IGNITER ASSY 89620 - IGNITER ASSY 89629 - BRACKET, IGNITER ASSY 89629 - BRACKET, IGNITER ASSY ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
