TOYOTA DYNA 200 TOYOACE G25 BU297-PKPLW3 / POWERTRAIN-CHASSIS / REAR AXLE HOUSING DIFFERENTIAL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

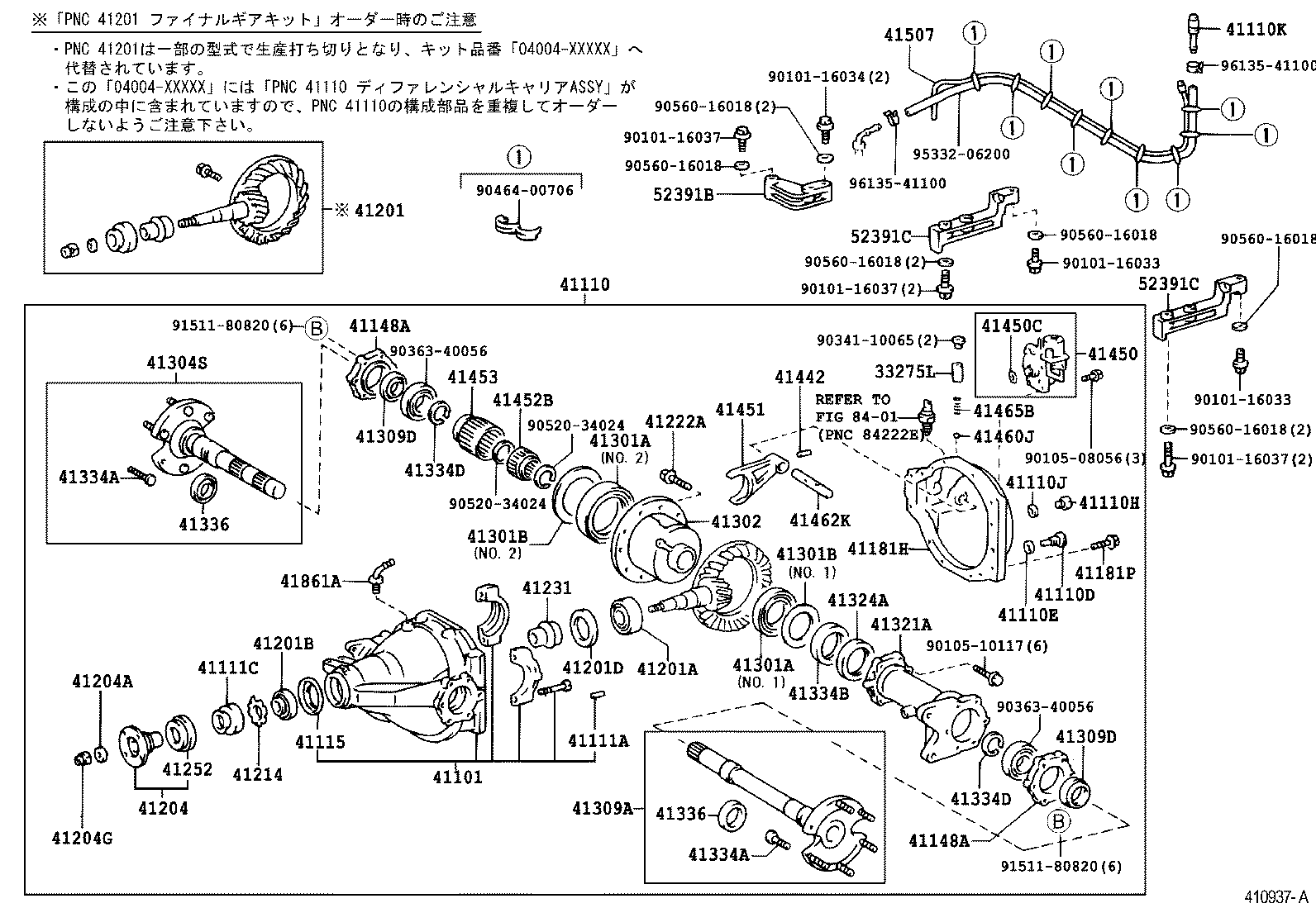

REAR AXLE HOUSING DIFFERENTIAL

(9701- )BU297

DYNA 200 TOYOACE G25 | REAR AXLE HOUSING DIFFERENTIAL 33275L - SEAT, REAR DIFFERENTIAL LOCK SHIFT DETENT BALL SPRING 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR 41110 - CARRIER ASSY, DIFFERENTIAL, REAR 41110D - PLUG (FOR REAR DIFFERENTIAL DRAIN) 41110E - GASKET (FOR REAR DIFFERENTIAL DRAIN PLUG) 41110H - PLUG (FOR REAR DIFFERENTIAL FILLER) 41110J - GASKET (FOR REAR DIFFERENTIAL FILLER PLUG) 41110K - PLUG, BREATHER (FOR REAR DIFFERENTIAL) 41111A - PIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER) 41111C - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41115 - RING, DIFFERENTIAL OIL STORAGE 41148A - RETAINER,DIFFERENTIAL BEARING 41148A - RETAINER,DIFFERENTIAL BEARING 41181H - COVER, REAR DIFFERENTIAL CARRIER 41181P - BOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING) 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR 41201A - BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION REAR) 41201B - BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION FRONT) 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) 41204G - NUT (FOR DRIVE PINION COMPANION FLANGE REAR) 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) 41301B - WASHER(FOR REAR DIFFERENTIAL TAPERED ROLLER BEARING) 41301B - WASHER(FOR REAR DIFFERENTIAL TAPERED ROLLER BEARING) 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL 41304S - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH 41309A - SHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR 41309D - SEAL OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41309D - SEAL OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41321A - TUBE, DIFFERENTIAL EXTENSION FLANGE 41324A - GUIDE, OIL SEAL 41334A - BOLT, SERRATION (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41334A - BOLT, SERRATION (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41334D - RING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41334D - RING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41336 - COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41336 - COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41442 - BOLT OR PIN, SHIFT FORK LOCK 41450 - ACTUATOR, DIFFERENTIAL LOCK SHIFT 41450C - RING, O (FOR REAR DIFFERENTIAL LOCK SHIFT ACTUATOR) 41451 - FORK, REAR DIFFERENTIAL LOCK SHIFT 41452B - PIECE, DIFFERENTIAL LOCK SPLINE 41453 - SLEEVE, REAR DIFFERENTIAL LOCK 41460J - BALL (FOR REAR DIFFERENTIAL LOCK CYLINDER) 41462K - SHAFT, REAR DIFFERENTIAL LOCK SHIFT FORK 41465B - SPRING, COMPRESSION (FOR REAR DIFFERENTIAL LOCK RETAINER) 41507 - TUBE, REAR DIFFERENTIAL LOCK ACTUATOR BREATHER 41861A - UNION (FOR REAR DIFFERENTIAL OIL COOLER PUMP) 52391B - SUPPORT, DIFFERENTIAL 52391C - SUPPORT, DIFFERENTIAL, NO.1 52391C - SUPPORT, DIFFERENTIAL, NO.1 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
