TOYOTA DYNA 200 TOYOACE G25 BU297-PKPLW3 / POWERTRAIN-CHASSIS / REAR SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

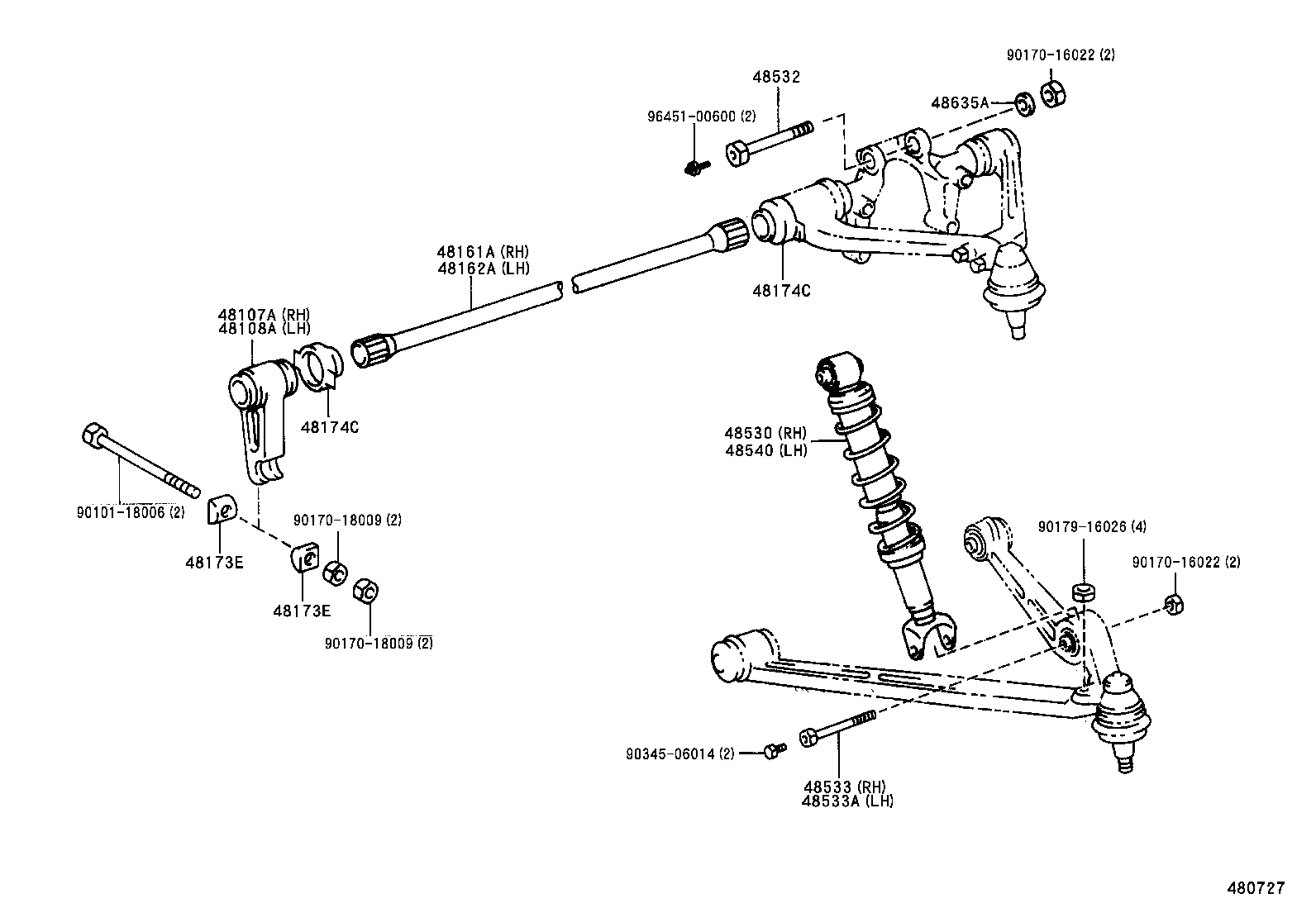

REAR SPRING SHOCK ABSORBER

ILLUST NO. 2 OF 2(9701- )BU297

DYNA 200 TOYOACE G25 | REAR SPRING SHOCK ABSORBER 48107A - ARM SUB-ASSY, ANCHOR, RH 48108A - ARM SUB-ASSY, ANCHOR, LH 48161A - SPRING, REAR TORSION BAR, RH 48162A - SPRING, REAR TORSION BAR, LH 48173E - SEAT, ANCHOR ARM ADJUSTER 48173E - SEAT, ANCHOR ARM ADJUSTER 48174C - COVER, REAR TORTION BAR DUST 48174C - COVER, REAR TORTION BAR DUST 48530 - ABSORBER ASSY, SHOCK, REAR RH 48532 - PIN, REAR SHOCK ABSORBER PIVOT 48533 - PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH 48533A - PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH 48540 - ABSORBER ASSY, SHOCK, REAR LH 48635A - BUSH, UPPER ARM, REAR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
