TOYOTA DYNA 200 TOYOACE G25 BU102D-TUMMS / BODY / REAR BODY SIDE GATE LOCK TAIL GATE LOCK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR BODY SIDE GATE LOCK TAIL GATE LOCK

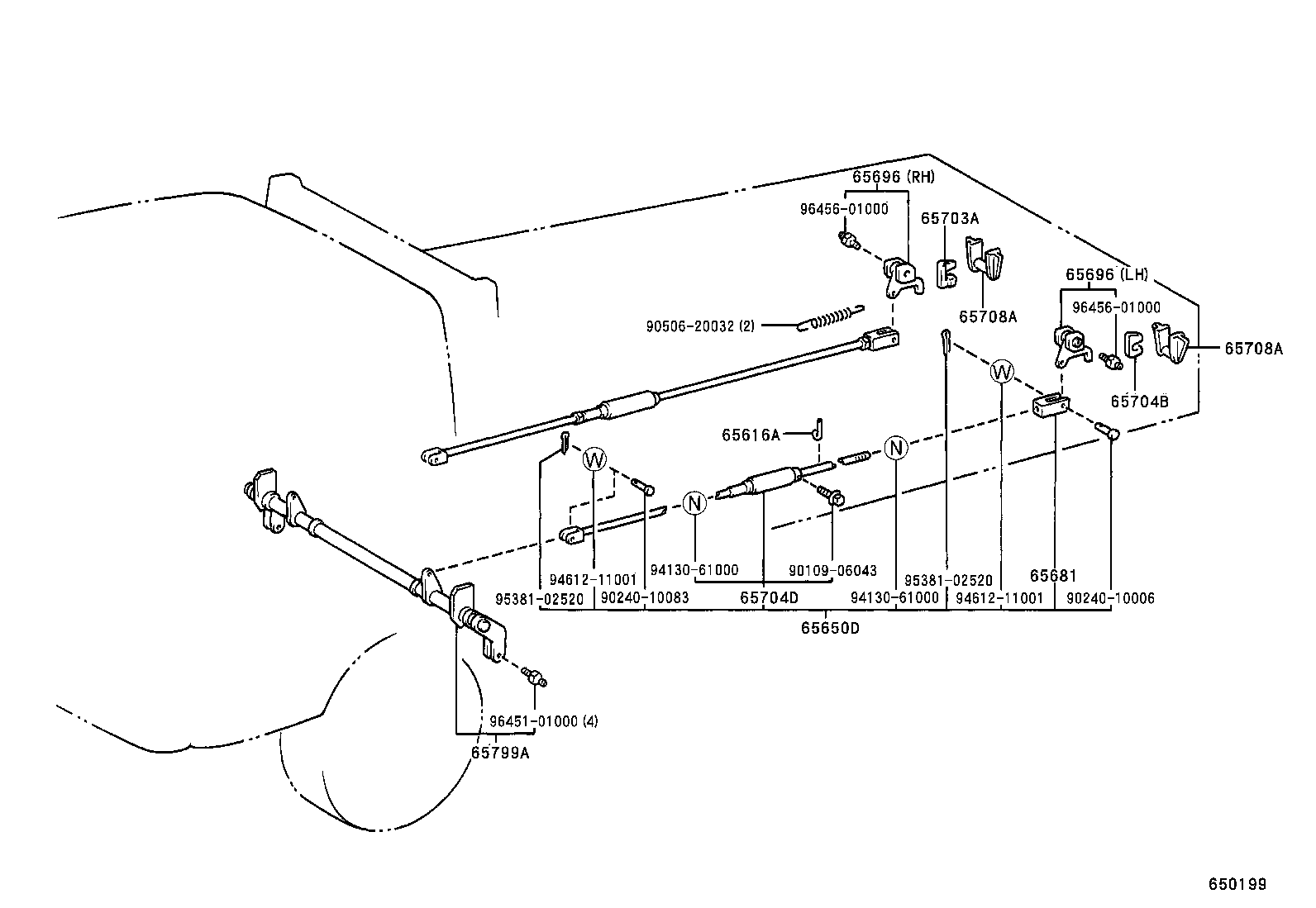

ｱﾘ(ﾃ-ﾙｹﾞ-ﾄ ﾛﾂｸ) ILLUST NO. 2 OF 2(9807- )DM3

DYNA 200 TOYOACE G25 | REAR BODY SIDE GATE LOCK TAIL GATE LOCK 65616A - GUIDE, ROD ASSY SUPPORT 65650D - SHAFT ASSY, TAIL GATE C 65681 - END, TAIL GATE LOCK LINK 65696 - LATCH, TAIL GATE LOCK 65696 - LATCH, TAIL GATE LOCK 65703A - GUIDE SUB-ASSY, TAIL GATE LOCK HINGE, RH 65704B - GUIDE SUB-ASSY, TAIL GATE LOCK HINGE, LH 65704D - LINK SUB-ASSY, TAIL GATE LOCK CONTROL 65708A - BAR SUB-ASSY, TAIL GATE LOCK, RH 65708A - BAR SUB-ASSY, TAIL GATE LOCK, RH 65799A - LINK, TAIL GATE LOCK CONTROL, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
