TOYOTA DYNA 200 TOYOACE G25 BU132-LQMQS3 / POWERTRAIN-CHASSIS / CLUTCH PEDAL FLEXIBLE HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CLUTCH PEDAL FLEXIBLE HOSE

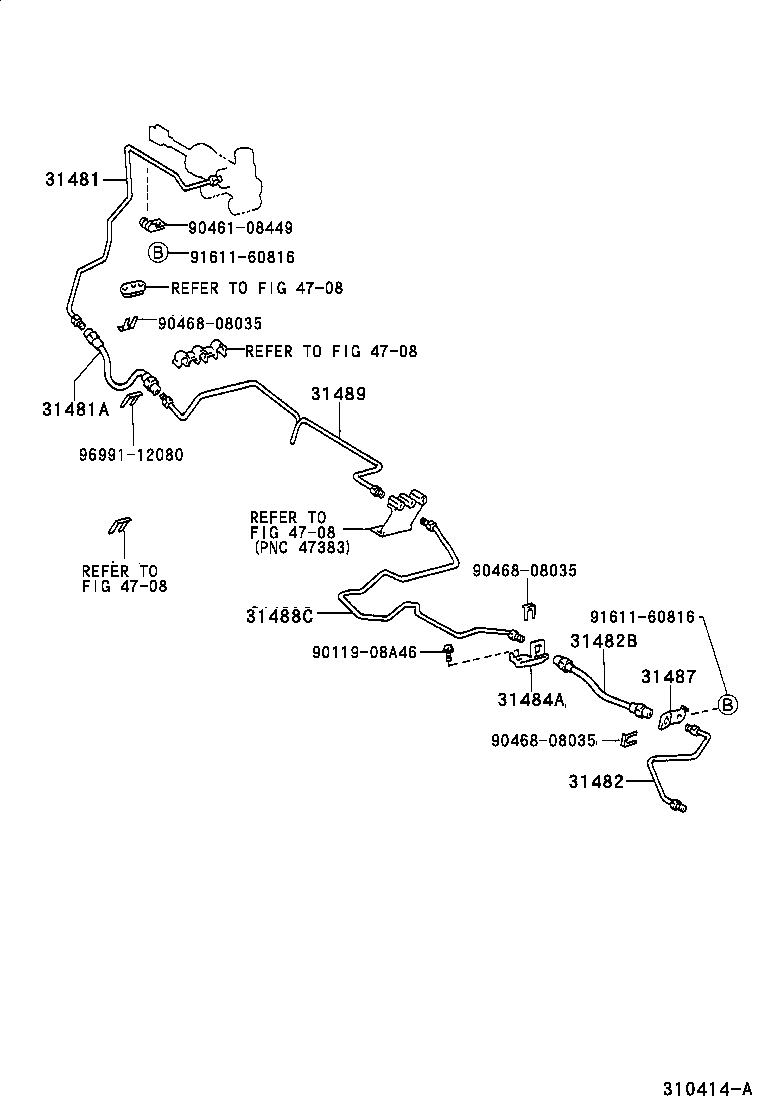

ILLUST NO. 2 OF 2(9702-9905)TL4..5F

DYNA 200 TOYOACE G25 | CLUTCH PEDAL FLEXIBLE HOSE 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE 31481A - HOSE, CLUTCH, NO.1 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE 31482B - HOSE, CLUTCH, NO.2 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) 31487 - PLATE, RELEASE TUBE SET 31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
